How can I get a price quote for Siemens 3RK1908-0AP00-0FP0?

You can request a fast quote for Siemens 3RK1908-0AP00-0FP0 from Yılsa Engineering. Reference part number YLSB27GARZRMVCE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK1908-0AP00-0FP0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK1908-0AP00-0FP0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK1908-0AP00-0FP0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

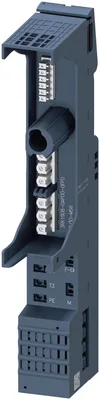

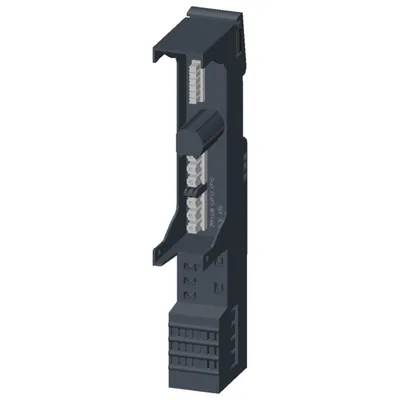

Siemens 3RK1908-0AP00-0FP0

Base unit (BU30-MS6) with F-DI For ET 200SP motor starter Without infeed

SiemensMFR # 3RK1908-0AP00-0FP0SKU # YLSB27GARZRMVCE

product brand nameSIMATIC

product categoryAccessories

product designationBaseUnit

design of the productwithout infeed, F-DI

product type designationET 200SP

insulation voltage rated value500 V

Have questions?Chat on WhatsApp

About This Product

Base unit (BU30-MS6) with F-DI For ET 200SP motor starter Without infeed

Siemens 3RK1908-0AP00-0FP0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC

product categoryAccessories

product designationBaseUnit

design of the productwithout infeed, F-DI

product type designationET 200SP

product descriptionfor fail-safe e-Starters and motor starters

General technical data

insulation voltage rated value500 V

degree of pollution2

surge voltage resistance rated value6 kV

between main and auxiliary circuit500 V

shock resistance6 g / 11 ms

vibration resistance15 mm to 6 Hz; 2 g to 500 Hz

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)04/15/2016

SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight0.178 kg

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe

Main circuit

number of poles for main current circuit3

type of voltage of the operating voltageAC

operating voltage rated value maximum500 V

operational current at AC at 400 V rated value32 A; Derating, see Manual

Inputs/ Outputs

number of digital inputs1

type of input characteristicType 1 in accordance with EN 61131-2

input voltage at digital input at DC rated value24 V

Supply voltage

type of voltage of the supply voltageDC

supply voltage 1 at DC rated value24 V

minimum permissible20.4 V

maximum permissible28.8 V

ampacity maximum7 A

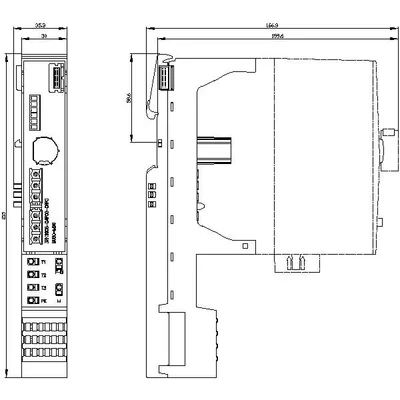

Installation/ mounting/ dimensions

mounting positionvertical, horizontal

fastening methodDIN rail

height215 mm

width30 mm

depth75 mm

upwards50 mm

downwards50 mm

Ambient conditions

installation altitude at height above sea level maximum4 000 m

during operation-25 ... +60 °C; For derating see manual

during storage-40 ... +70 °C

during transport-40 ... +70 °C

environmental category during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices)

relative humidity during operation10 ... 95 %

air pressure according to SN 31205900 ... 1 060 hPa

Connections/ Terminals

for main current circuitspring-loaded terminals (push-in)

for auxiliary and control circuitspring-loaded terminals (push-in)

type of connecting terminalPush-in terminal

solid1x 0,5 ... 2,5 mm²

finely stranded without core end processing1x 0,5 ... 2,5 mm²

finely stranded with core end processing1x 0,5 ... 2,5 mm²

type of connectable conductor cross-sections for AWG cables for load-side outgoing feeder1x 20 ... 12

single or multi-stranded0.5 ... 2.5 mm²

finely stranded without core end processing0.5 ... 2.5 mm²
