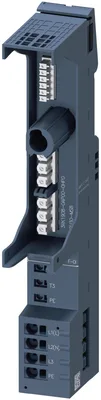

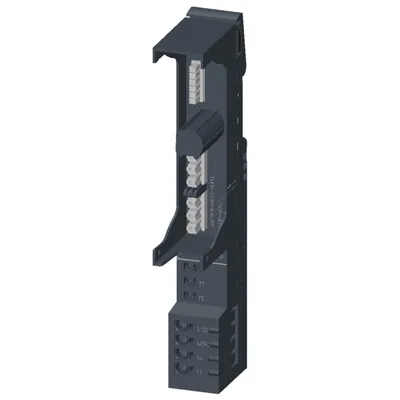

Siemens 3RK1908-0AP00-0HP0

Base unit (BU30-MS8) with F-DI forwarding For ET 200SP motor starter With infeed 500 V Incl. infeed bus cover

SiemensMFR # 3RK1908-0AP00-0HP0SKU # YLS60ECO2WTELDT

product brand nameSIMATIC

product categoryAccessories

product designationBaseUnit

design of the productwith AC infeed, with F-DI loop-through

product type designationET 200SP

insulation voltage rated value500 V

Have questions?Chat on WhatsApp

About This Product

Base unit (BU30-MS8) with F-DI forwarding For ET 200SP motor starter With infeed 500 V Incl. infeed bus cover

Siemens 3RK1908-0AP00-0HP0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC

product categoryAccessories

product designationBaseUnit

design of the productwith AC infeed, with F-DI loop-through

product type designationET 200SP

product descriptionfor fail-safe e-Starters and motor starters

General technical data

insulation voltage rated value500 V

degree of pollution2

surge voltage resistance rated value6 kV

between main and auxiliary circuit500 V

shock resistance6 g / 11 ms

vibration resistance15 mm to 6 Hz; 2 g to 500 Hz

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)04/15/2016

SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight0.18 kg

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe

Main circuit

number of poles for main current circuit3

type of voltage of the operating voltageAC

operating voltage rated value maximum500 V

operating voltage of AC supply500 V

for motor starter500 V

for ET 200SP e-Starter480 V

operational current at AC at 400 V rated value32 A; Derating, see Manual

Inputs/ Outputs

number of digital inputs0

Supply voltage

type of voltage of the supply voltageDC

supply voltage 1 at DC rated value24 V

minimum permissible20.4 V

maximum permissible28.8 V

ampacity maximum7 A

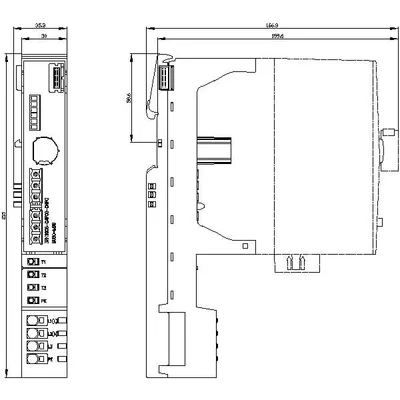

Installation/ mounting/ dimensions

mounting positionvertical, horizontal

fastening methodDIN rail

height215 mm

width30 mm

depth75 mm

upwards50 mm

downwards50 mm

Ambient conditions

installation altitude at height above sea level maximum4 000 m

during operation-25 ... +60 °C; For derating see manual

during storage-40 ... +70 °C

during transport-40 ... +70 °C

environmental category during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices)

relative humidity during operation10 ... 95 %

air pressure according to SN 31205900 ... 1 060 hPa

Connections/ Terminals

for main current circuitspring-loaded terminals (push-in)

for auxiliary and control circuitspring-loaded terminals (push-in)

type of connecting terminalPush-in terminal

solid1x 1 ... 6 mm²

finely stranded without core end processing1x 1 ... 6 mm²

finely stranded with core end processing1x 1 ... 6 mm²

for AWG cables for supply1x 18 ... 10

solid1x 0,5 ... 2,5 mm²

finely stranded without core end processing1x 0,5 ... 2,5 mm²
