How can I get a price quote for Siemens 3RK1908-1AA00-0BP0?

You can request a fast quote for Siemens 3RK1908-1AA00-0BP0 from Yılsa Engineering. Reference part number CEY-8EF3B03948EB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK1908-1AA00-0BP0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK1908-1AA00-0BP0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK1908-1AA00-0BP0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

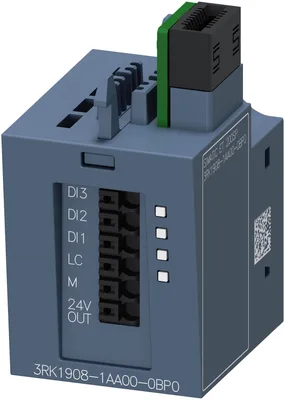

Siemens 3RK1908-1AA00-0BP0

3DI (LC) submodules (connection terminals) for ET 200SP motor starter

SiemensMFR # 3RK1908-1AA00-0BP0SKU # CEY-8EF3B03948EB

product brand nameSIMATIC

product categoryAccessories

product designation3DI/LC control module

design of the productAccessories

product type designationET 200SP

product functionAccessories

Have questions?Chat on WhatsApp

About This Product

3DI (LC) submodules (connection terminals) for ET 200SP motor starter

Siemens 3RK1908-1AA00-0BP0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC

product categoryAccessories

product designation3DI/LC control module

design of the productAccessories

product type designationET 200SP

General technical data

product functionAccessories

product function with 24 V sensor supply short-circuit protectionYes

diagnostics function short-circuit detectionYes

display version for diagnostic function: Status display transmission channel channel status LEDYes

noteGreen LED

degree of pollution2

shock resistance6 g / 11 ms

vibration resistance15 mm to 6 Hz; 2 g to 500 Hz

Substance Prohibitance (day/month/year)04/15/2016

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.031 kg

product function short circuit protectionYes

Electrical Safety

touch protection against electrical shockfinger-safe

Inputs/ Outputs

digital inputs parameterizableYes

at the standard inputs at rated input voltage parameterizable input delay timeNo

for signal <0> to <1> at rated input voltage10 ... 15 ms

for signal <1> to <0> at rated input voltage10 ... 15 ms

number of digital inputs4

noteInputs 1-3 parameterizable; input 4 (LC) for local control

digital input version type 1 acc. to IEC 61131Yes

value range of the input voltage at digital input for signal <0> detection-30 ... +5 V

value range of the input voltage at digital input for signal <1> detection+15 ... +30 V

input current at digital input for signal <1> typical9 mA

type of output voltage for sensor supplyDC

output voltage for sensor supply minimum19.2 V

output current for sensor supply at 60 °C maximum0.1 A

wire length of sensor maximum30 m

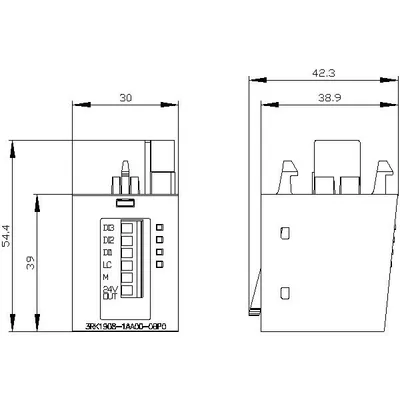

Installation/ mounting/ dimensions

mounting positionvertical, horizontal, flat

fastening methodCan be plugged onto motor starters

height54.5 mm

width30 mm

depth42.3 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

relative humidity during operation10 ... 95 %

air pressure according to SN 31205900 ... 1 060 hPa

Connections/ Terminals

type of electrical connection for auxiliary and control circuitspring-loaded terminals (push-in)

solid or stranded0.2 ... 1.5 mm²

finely stranded with core end processing0.25 ... 1.5 mm²

finely stranded without core end processing0.2 ... 1.5 mm²

AWG number as coded connectable conductor cross section for auxiliary contacts24 ... 16

shape of the screwdriver tipSlot

size of the screwdriver tipStandard screwdriver 0.6 mm x 3.5 mm
