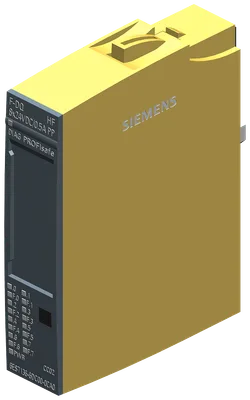

Siemens 6ES7136-6DC00-0CA0

SIMATIC DP, electronic module ET 200SP, F-DQ 8x24VDC/0.5A PP HF, 15 mm width, up to PL E (ISO 13849) up to SIL 3 (IEC 61508)

SiemensMFR # 6ES7136-6DC00-0CA0SKU # CEY-937FC7801E0F

Product type designationF-DQ 8x24 V DC/0.5 A PP HF

FW update possibleYes

usable BaseUnitsBU type A0

I&M dataYes; I&M0 to I&M3

PROFINET from GSD version/GSD revisionV2.31

Rated value (DC)24 V

Have questions?Chat on WhatsApp

About This Product

SIMATIC DP, electronic module ET 200SP, F-DQ 8x24VDC/0.5A PP HF, 15 mm width, up to PL E (ISO 13849) up to SIL 3 (IEC 61508)

Siemens 6ES7136-6DC00-0CA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationF-DQ 8x24 V DC/0.5 A PP HF

FW update possibleYes

usable BaseUnitsBU type A0

Color code for module-specific color-coded labelCC02

Product function

I&M dataYes; I&M0 to I&M3

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV14 SP1 with HSP 202

STEP 7 configurable/integrated from versionV5.5 SP4 HF5

PROFINET from GSD version/GSD revisionV2.31

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

power supply according to NEC Class 2 requiredNo

Input current

Current consumption (rated value)75 mA; without load

Current consumption, max.21 mA; From the backplane bus

Output voltage

Rated value (DC)24 V

Power

Power consumption from the backplane bus70 mW

Power loss

Power loss, typ.3 W

Address space per module

Inputs6 byte; 5 bytes non-RIOforFA; 6 bytes RIOforFA

Outputs6 byte; 5 bytes non-RIOforFA; 6 bytes RIOforFA

Hardware configuration

Automatic encodingYes

Electronic coding element type FYes

Digital outputs

Type of digital outputTransistor

Number of digital outputs8

Digital outputs, parameterizableYes

Short-circuit protectionYes

Response threshold, typ.Min. 0.7 A

Open-circuit detectionNo

Limitation of inductive shutdown voltage toTyp. -39 V

Controlling a digital inputYes; digital output, according to IEC 61131-2, type 0.5

Switching capacity of the outputs

with resistive load, max.0.5 A

on lamp load, max.2 W

Load resistance range

lower limit48 Ω

upper limit12 000 Ω

Output voltage

for signal "1", min.24 V; L+ (-0.5 V)

Output current

for signal "1" rated value0.5 A

for signal "0" residual current, max.0.5 mA

Switching frequency

with resistive load, max.30 Hz; Symmetrical

with inductive load, max.0.1 Hz; according to IEC 60947-5-1, DC-13, symmetrical

with capacitive load, max.2 Hz; Symmetrical

on lamp load, max.10 Hz; Symmetrical

Total current of the outputs

Current per channel, max.0.5 A; note derating data in the manual

Current per module, max.3 A; note derating data in the manual

horizontal installation

— up to 40 °C, max.3 A

— up to 50 °C, max.2.5 A

— up to 60 °C, max.2 A

vertical installation

— up to 50 °C, max.2 A

Cable length

shielded, max.100 m

unshielded, max.100 m

Interrupts/diagnostics/status information

Diagnostics functionYes; See Chapter "Alarms/diagnostic messages" in the manual

Substitute values connectableNo

Alarms

Diagnostic alarmYes

Hardware interruptNo

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsNo

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functionsYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]88.3 kg

— global warming potential, (during production) [CO2 eq]13.1 kg

— global warming potential, (during operation) [CO2 eq]76.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]-1.37 kg

Highest safety class achievable in safety mode

Performance level according to ISO 13849-1PLe

Category according to ISO 13849-1Cat. 4

SIL acc. to IEC 61508SIL 3

Probability of failure (for service life of 20 years and repair time of 100 hours)

— Low demand mode: PFDavg in accordance with SIL3< 6.00E-05

— High demand/continuous mode: PFH in accordance with SIL3< 2.00E-09 1/h

Ambient temperature during operation

horizontal installation, min.0 °C

horizontal installation, max.60 °C

vertical installation, min.0 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.4 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP System Manual

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.48 g

Accessories 9

Genuine accessories that can be used with the Siemens 6ES7136-6DC00-0CA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7193-6EF00-1AA0	Yedek parça · spare part
6ES7193-6BP00-2DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-2BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-2BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-2DA0	Zorunlu ek ürün · BaseUnit
