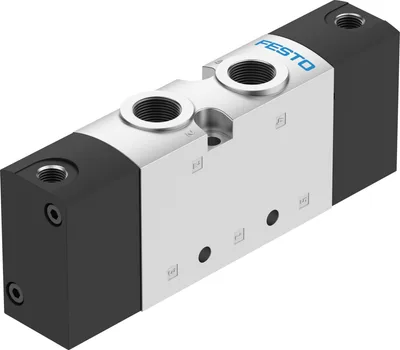

Festo VUWS-L30-M52-E-G38
Pneumatic valve. Universal valve, sturdy and durable. Pneumatically actuated. Can be used as individual valves or manifold valves VTUS
Valve function5/2-way, single solenoid
Type of actuationPneumatic
Valve size31
pneumatic working portG3/8
Operating pressure-0.09, 1
Operating pressure-0.9, 10
About This Product
Pneumatic valve. Universal valve, sturdy and durable. Pneumatically actuated. Can be used as individual valves or manifold valves VTUS
Festo VUWS-L30-M52-E-G38
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function5/2-way, single solenoid
Type of actuationPneumatic
Valve size31
Standard nominal flow rate (standardised to DIN 1343)2300
pneumatic working portG3/8
Operating pressure-0.09, 1
Operating pressure-0.9, 10
DesignPiston gate valve
Type of resetPneumatic spring
Approvalc UL us - Recognised (Oil)
Nominal size9.4
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideNone
Type of pilotingDirect
Pilot air supplyExternal
Flow directionReversible
Symbol00995404
lapOverlap
Pilot pressure0.25, 1
Pilot pressure2.5, 10
Switching time off59
Switching time on24
Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Media temperature-10, 60
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10, 60
Product weight546
Type of mountingOn manifold rail, With through-hole
Breather connectionNot ducted
Pilot air port 14G1/8
Pneumatic connection, port 1G3/8
Pneumatic connection, port 2G3/8
Pneumatic connection, port 3G3/8
Pneumatic connection, port 4G3/8
Pneumatic connection, port 5G3/8
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingpainted
Material piston slideWrought aluminium alloy
Material screwsNickel-plated steel
Accessories 219
Genuine accessories that can be used with the Festo VUWS-L30-M52-E-G38 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| VAME-B10-20-W | Wall mounting · Mounting accessories | |
| VAME-B10-30-A | Foot mounting · Mounting accessories | |
| PUN-H-6X1-NT | Plastic tubing · Tubes | |
| PUN-H-12X2-NT | Plastic tubing · Tubes | |
| PUN-H-6X1-BL | Plastic tubing · Tubes | |
| PUN-H-12X2-BL | Plastic tubing · Tubes | |
| PUN-H-6X1-SW | Plastic tubing · Tubes | |
| PUN-H-12X2-SW | Plastic tubing · Tubes | |
| PUN-H-6X1-TBL | Plastic tubing · Tubes | |
| PUN-H-12X2-TBL | Plastic tubing · Tubes | |
| QSM-M5-6-I | Push-in fitting · Fittings | |
| QS-G3/8-12 | Push-in fitting · Fittings | |
| QS-G3/8-12-I | Push-in fitting · Fittings | |
| QSL-G3/8-12 | Push-in L-fitting · Fittings | |
| QSLL-G3/8-12 | Push-in L-fitting, long · Fittings | |
| QSW-3/8-10 | Push-in fitting · Push-in fittings | |
| QSW-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSL-3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| QS-G3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-3/8-12-I | Push-in fitting · Push-in fittings | |
| QSL-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-3/8-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-3/8-10-I | Push-in L-fitting · Push-in fittings | |
| QSLV-3/8-12-I | Push-in L-fitting · Push-in fittings | |
| QST-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSY-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-3/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-10-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-3/8-10-B | Multiple distributor · Push-in fittings | |
| QST3-3/8-10-8 | Multiple distributor · Push-in fittings | |
| QSLV2-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV2-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV2-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-V0-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-V0-3/8-12 | Push-in fitting · Push-in fittings | |
| QSL-V0-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-16 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-3/8-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QSL-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G3/8-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G3/8-10-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G3/8-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSY-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G3/8-10 | Multiple distributor · Push-in fittings | |
| QST3-G3/8-10-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV2-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-G3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-12 | Push-in fitting · Push-in fittings | |
| QSL-V0-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-G3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-16 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-6 | Push-in fitting · Push-in fittings | |
| QSL-3/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QST-3/8-6 | Push-in T-fitting · Push-in fittings | |
| VABM-B10-30-G34-2-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-3-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-4-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-5-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-6-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-7-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-8-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-9-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-10-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-2-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-3-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-4-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-5-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-6-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-7-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-8-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-9-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-10-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-2-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-3-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-4-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-30E-G34-2 | Manifold block · Connection accessories | |
| VABM-B10-30E-G34-3 | Manifold block · Connection accessories | |
| VABM-B10-30E-G34-4 | Manifold block · Connection accessories | |
| VABM-B10-30E-G34-6 | Manifold block · Connection accessories | |
| VABM-B10-30E-G34-8 | Manifold block · Connection accessories | |
| VABM-B10-30E-G34-9 | Manifold block · Connection accessories | |
| VABM-B10-30E-N34-2 | Manifold block · Connection accessories | |
| VABM-B10-30E-N34-3 | Manifold block · Connection accessories | |
| VABM-B10-30E-N34-4 | Manifold block · Connection accessories | |
| VABM-B10-30E-N34-5 | Manifold block · Connection accessories | |
| VABM-B10-30E-N34-6 | Manifold block · Connection accessories | |
| VABM-B10-30E-N34-7 | Manifold block · Connection accessories | |
| VABM-B10-30E-N34-8 | Manifold block · Connection accessories | |
| VABM-B10-30E-N34-9 | Manifold block · Connection accessories | |
| VABM-B10-30E-N34-10 | Manifold block · Connection accessories | |
| VABM-B10-30EEE-G34-2 | Manifold block · Connection accessories | |
| VAME-B10-30-MK | Assortment of spare parts · Mounting accessories |
Related Products
View Details
Festo
VUVG-...T1
MFR #VUVG-...T1
SKU #YLSX2D4SAW0EEKW
View Details
Festo
VUVG-B10Z-M32C-RZT-F-1T1L
MFR #VUVG-B10Z-M32C-RZT-F-1T1L
SKU #YLSQZTBLMZ6IHOT
View Details
Festo
VUVG
MFR #VUVG
SKU #YLSK5LKLZINUOQB
View Details
Festo
VUWG
MFR #VUWG
SKU #YLSGV6ELGMVEOXL
View Details
Festo
VUVG-B14Z-M32C-AZT-F-1T1L
MFR #VUVG-B14Z-M32C-AZT-F-1T1L
SKU #YLSFGSMCMESWXAL
View Details
Festo
VUVG-B14Z-M32U-AZT-F-1T1L
MFR #VUVG-B14Z-M32U-AZT-F-1T1L
SKU #YLSZLONZJJHJLYV
View Details
Festo
VUVG-B10-T32H-MZT-F-1R8L
MFR #VUVG-B10-T32H-MZT-F-1R8L
SKU #YLSOPMRWYPTLJ8T
View Details
Festo
VUVG-B10-T32U-MZT-F-1R8L
MFR #VUVG-B10-T32U-MZT-F-1R8L
SKU #YLSJA8FZCEY6TAW
View Details
Festo
VUVG-L10-T32H-MT-M5-1R8L
MFR #VUVG-L10-T32H-MT-M5-1R8L
SKU #YLS2HCIBEMMWU2N
Featured Products
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
View Details
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
View Details
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Related Searches
Festo VUWS-L30-M52-E-G38 priceFesto VUWS-L30-M52-E-G38 quotebuy Festo VUWS-L30-M52-E-G38VUWS-L30-M52-E-G38 priceVUWS-L30-M52-E-G38 stock availabilityFesto spare partsFesto VUWS-L30-M52-E-G38 equivalentFesto VUWS-L30-M52-E-G38 specifications
