How can I get a price quote for Festo VUVG-...T1?

You can request a fast quote for Festo VUVG-...T1 from Yılsa Engineering. Reference part number YLSX2D4SAW0EEKW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VUVG-...T1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VUVG-...T1 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VUVG-...T1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

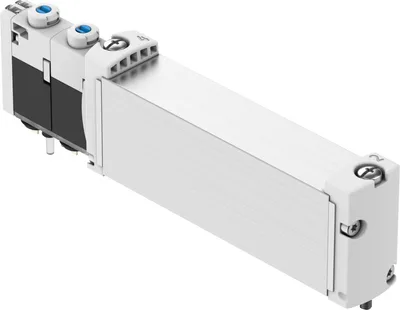

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VUVG-...T1

Solenoid valve. Sub-base valve, semi in-line valve. For valve terminal VTUG with multi-pin, fieldbus interface. Variants to EU Explosion Protection Directive (ATEX)

FestoMFR # VUVG-...T1SKU # YLSX2D4SAW0EEKW

Type of actuationElectrical

Valve size10

pneumatic working portFlange, M5, M7, G1/8, G1/4

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Sub-base valve, semi in-line valve. For valve terminal VTUG with multi-pin, fieldbus interface. Variants to EU Explosion Protection Directive (ATEX)

Festo VUVG-...T1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2x3/2 closed monostable, 2x3/2 open monostable, 2x3/2-way, open/closed, monostable, 3/2-way, single solenoid, closed, 3/2-way, single solenoid, open, 5/2-way, double solenoid, 5/2-way, single solenoid

Type of actuationElectrical

Valve size10

Standard nominal flow rate (standardised to DIN 1343)130, 1200

pneumatic working portFlange, M5, M7, G1/8, G1/4

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Type of resetMechanical spring, Pneumatic spring

Approvalc UL us - Recognised (Oil)

Degree of protectionIP40, IP65, IP67

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Type of pilotingPiloted

Pilot air supplyExternal

lapOverlap, Indeterminate overlap

Signal status displayLED

Max. switching frequency3

Duty cycle100%

Max. positive test pulse with 0 signal1600

Max. negative test pulse with 1 signal3000

Characteristic coil data22 V DC: 1.0 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Restrictions for environmental and media temperature-5 - 50 °C, Without holding current reduction

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-5, 60

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 60

Electrical connectionVia E-box

Type of mountingOn manifold rail

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Accessories 125

Genuine accessories that can be used with the Festo VUVG-...T1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
UC-1/8	Silencer · Silencer
VABM-L1-10G-G18-4-GR	Manifold rail · Connection accessories
UC-1/4	Silencer · Silencer
VABM-L1-14G-G14-8-GR	Manifold rail · Connection accessories
VABM-L1-18G-G38-8-G	Manifold rail · Connection accessories
VABM-L1-10G-G18-8-GR	Manifold rail · Connection accessories
QS-G1/8-6-I	Push-in fitting · Fittings
VABM-L1-14G-G14-16-GR	Manifold rail · Connection accessories
VABM-L1-18G-G38-16-G	Manifold rail · Connection accessories
VABM-L1-10G-G18-16-GR	Manifold rail · Connection accessories
VABM-L1-18G-G38-24-G	Manifold rail · Connection accessories
QS-G1/8-8-I	Push-in fitting · Fittings
VABM-L1-14G-G14-24-GR	Manifold rail · Connection accessories
VABM-L1-18W-G38-4-G	Manifold rail · Connection accessories
VABM-L1-10G-G18-24-GR	Manifold rail · Connection accessories
QS-G1/4-8-I	Push-in fitting · Fittings
VABM-L1-14W-G14-4-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-4-GR	Manifold rail · Connection accessories
VABM-L1-18W-G38-8-G	Manifold rail · Connection accessories
VABM-L1-14W-G14-8-GR	Manifold rail · Connection accessories
QS-G1/4-10-I	Push-in fitting · Fittings
VABM-L1-10HW-G18-8-GR	Manifold rail · Connection accessories
VABM-L1-18W-G38-16-G	Manifold rail · Connection accessories
VABM-L1-14W-G14-16-GR	Manifold rail · Connection accessories
QSM-M5-4-I	Push-in fitting · Fittings
QS-G3/8-10-I	Push-in fitting · Fittings
VABM-L1-18W-G38-24-G	Manifold rail · Connection accessories
VABM-L1-10HW-G18-16-GR	Manifold rail · Connection accessories
QSM-M5-6-I	Push-in fitting · Fittings
VABM-L1-14W-G14-24-GR	Manifold rail · Connection accessories
QS-G3/8-12-I	Push-in fitting · Fittings
VABM-L1-10HW-G18-24-GR	Manifold rail · Connection accessories
QSM-M7-4-I	Push-in fitting · Fittings
AMTE-M-LH-G38	Silencer · Silencer
VAME-T-M4	DIN rail attachment · Mounting accessories
VABB-L1-14-T	Cover plate · Connection accessories
QSM-M7-6-I	Push-in fitting · Fittings
VABB-L1-18-T	Cover plate · Connection accessories
VABB-L1-10-T	Cover plate · Connection accessories
VABM-L1-18G-G38-4-G	Manifold rail · Connection accessories
VABM-L1-14G-G14-4-GR	Manifold rail · Connection accessories
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M3-5/32-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M7-6-I-R-100	Push-in fitting · Push-in fittings
QS-G1/8-10-I	Push-in fitting · Push-in fittings
QS-G1/8-10-I-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSM-M7-4-I-100	Push-in fitting · Push-in fittings
QSM-M7-6-I-R	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QSM-M3-2-I	Push-in fitting · Push-in fittings
QSM-M3-3-I	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSM-M7-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M7-3/16-I-U-M	Push-in fitting · Push-in fittings
QSM-M7-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSM-M3-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M3-3/16-I-U-M	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/4-6-I	Push-in fitting · Push-in fittings
QS-G3/8-8-I	Push-in fitting · Push-in fittings
VAEM-L1-S-8-PT	Electrical interface · Electrical accessories
VABM-L1-10G-G18-5-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-6-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-7-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-9-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-10-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-12-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-20-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-5-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-6-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-7-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-9-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-10-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-12-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-20-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-5-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-6-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-7-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-9-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-10-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-12-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-20-GR	Manifold rail · Connection accessories
VABM-L1-14W-G14-5-GR	Manifold rail · Connection accessories
VABM-L1-14W-G14-6-GR	Manifold rail · Connection accessories
VABM-L1-14W-G14-7-GR	Manifold rail · Connection accessories
VABM-L1-14W-G14-9-GR	Manifold rail · Connection accessories
VABM-L1-14W-G14-10-GR	Manifold rail · Connection accessories
VABM-L1-14W-G14-12-GR	Manifold rail · Connection accessories
VABM-L1-14W-G14-20-GR	Manifold rail · Connection accessories
VABF-L1-10-P3A4-M7-T1	Supply plate · Connection accessories
VABF-L1-14-P3A4-G18-T1	Supply plate · Connection accessories
VABM-L1-10G-G18-16-M-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-20-M-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-24-M-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-16-M-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-20-M-GR	Manifold rail · Connection accessories
VABM-L1-10HW-G18-24-M-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-16-M-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-20-M-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-24-M-GR	Manifold rail · Connection accessories
VABM-L1-14W-G14-16-M-GR	Manifold rail · Connection accessories
VABM-L1-14W-G14-20-M-GR	Manifold rail · Connection accessories
VABM-L1-14W-G14-24-M-GR	Manifold rail · Connection accessories
VAEM-L1-S-16-PT	Electrical interface · Electrical accessories
VAEM-L1-S-24-PT	Electrical interface · Electrical accessories
VAEM-L1-S-8-PTL	Electrical interface · Electrical accessories
VAEM-L1-S-16-PTL	Electrical interface · Electrical accessories
VAEM-L1-S-24-PTL	Electrical interface · Electrical accessories
VABF-L1-18-P3A4-G14-T1	Supply plate · Connection accessories
