Festo
VUVG-B10Z-M32U-RZT-F-1T1L
MFR #VUVG-B10Z-M32U-RZT-F-1T1L
SKU #YLSLK5RUJMHQDEO
Photo may not represent actual item. Refer to name and product specs for all details.

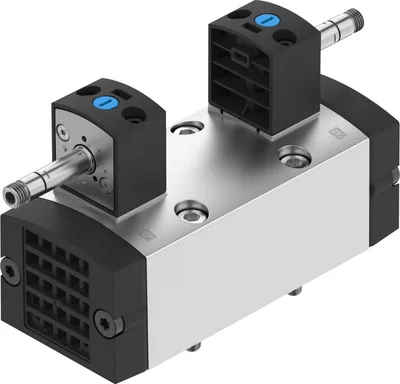

Festo VSVA-B-.-F.
Solenoid valve. Conforms to ISO 5599-1. Robust metal housing. Comprehensive valve functions: 5/2, 5/3, 2x3/2, 2x2/2. Extensive range of electrical connection options. Wide variety of voltage variants, direct and alternating voltages. Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc.. Convenient valve configurator for selecting the required valve type. Manifold assembly with mixture of ISO sizes 1, 2 and 3 possible
Type of actuationElectrical
Construction width52
Operating voltage24V AC, 24 V DC, 48V AC, 48 V DC
Operating pressure-0.09, 1.6
Operating pressure-0.9, 16
DesignPiston gate valve
About This Product
Solenoid valve. Conforms to ISO 5599-1. Robust metal housing. Comprehensive valve functions: 5/2, 5/3, 2x3/2, 2x2/2. Extensive range of electrical connection options. Wide variety of voltage variants, direct and alternating voltages. Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc.. Convenient valve configurator for selecting the required valve type. Manifold assembly with mixture of ISO sizes 1, 2 and 3 possible
Festo VSVA-B-.-F.
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function5/3-way, port 2 pressurised, 4 exhausted, 5/3-way, port 4 pressurised, 2 exhausted
Type of actuationElectrical
Construction width52
Nominal flow rate standardised according to ISO 87781400, 4100
pneumatic working portSub-base size 1 to ISO 5599-1, Sub-base size 2 to ISO 5599-1
Operating voltage24V AC, 24 V DC, 48V AC, 48 V DC
Operating pressure-0.09, 1.6
Operating pressure-0.9, 16
DesignPiston gate valve
Type of resetMechanical spring, Pneumatic spring
Degree of protectionIP65, NEMA 4
Nominal size8
Grid dimension53
Exhaust-air functionCan be throttled, Via individual sub-base
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideDetenting, None, Detenting via accessory, Non-detenting
Type of pilotingPiloted
Pilot air supplyExternal, Internal
Flow directionNon-reversible, Reversible
Symbol00995472, 00995501, 00995503, 00995515
lapOverlap
Pilot pressure0.3, 1
Pilot pressure3, 10
Suitability for vacuumYes, No
b value0.091, 1.7
C value3.098, 8.578
Flow rate of valve1200, 3800
Flow rate of valve on individual sub-base1100, 3200
Valve flow rate, pneumatically linked, flow optimized1100, 2700
Flow rate of pneumatically interlinked valve1000, 1400
Max. switching frequency1, 5
Switching time off25, 83
Switching time on18, 56
Switching time reversal16, 40
Duty cycle100%
Characteristic coil data24VDC:NS1,2:HS3.3, 48 V AC: 50/60 Hz, pick-up power 2.5 VA, holding power 1.7 VA, 48 V AC: 50/60 Hz, pick-up power 3.9 VA, holding power 2.7 VA, 48 V DC: 2.8 W, 48 V DC: 3.4 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10, 50
Relative air humidity0 - 90%
Sound pressure level85
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10, 50
Max. tightening torque for valve mounting1, 2
Product weight350, 803
Electrical connectionType A, Type B, Type C, M12x1, A-coded according to DESINA, M12x1, A-coded to EN 61076-2-101, To EN 175301-803
Type of mountingOn sub-base
Pilot exhaust port 82M5, Not ducted
Pilot exhaust port 84M5, Not ducted
Pilot air port 12Sub-base size 1 to ISO 5599-1, Sub-base size 2 to ISO 5599-1
Pilot air port 14Sub-base size 1 to ISO 5599-1, Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1, Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1, Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1, Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1, Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1, Sub-base size 2 to ISO 5599-1
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsNBR
Material housingDie-cast aluminium
Material screwsSteel
Accessories 95
Genuine accessories that can be used with the Festo VSVA-B-.-F. motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| VABV-S1-1HSB-G38 | Manifold sub-base · Connection accessories | |
| VABV-S1-1HSB-N38 | Manifold sub-base · Connection accessories | |
| VABS-S1-1HS-N38 | Sub-base · Connection accessories | |
| VABS-S1-1HS-G38 | Sub-base · Connection accessories | |
| NAS-1/4-1A-ISO | Individual sub-base · Connection accessories | |
| NAU-1/4-1B-ISO | Individual sub-base · Connection accessories | |
| NDV-1-ISO | Cover plate · Connection accessories | |
| NAV-1/4-1C-ISO | Manifold sub-base · Connection accessories | |
| NEV-1DA/DB-ISO | End plate kit · Connection accessories | |
| NAW-1/4-1E-ISO | Angled connection plate · Connection accessories | |
| NAV-3/8-2C-ISO | Manifold sub-base · Connection accessories | |
| NEV-2DA/DB-ISO | End plate kit · Connection accessories | |
| NAW-3/8-2E-ISO | Angled connection plate · Connection accessories | |
| NDV-2-ISO | Cover plate · Connection accessories | |
| NAS-3/8-2A-ISO | Individual sub-base · Connection accessories | |
| NAU-3/8-2B-ISO | Individual sub-base · Connection accessories | |
| NSC-1/4-1-ISO | Isolating disc · Connection accessories | |
| NSC-3/8-2-ISO | Isolating disc · Connection accessories | |
| NZV-3-2/1 | Intermediate plate · Connection accessories | |
| NAS-1/4-NPT-1A | Individual sub-base · Connection accessories | |
| NEV-1DA/DB-NPT | End plate kit · Connection accessories | |
| NAV-1/4-NPT-1C | Manifold sub-base · Connection accessories | |
| NAW-3/8-NPT-2E | Manifold sub-base with angled connections · Connection accessories | |
| NAVW-1/4-1-ISO | Manifold sub-base with angled connections · Connection accessories | |
| NAVW-3/8-2-ISO | Manifold sub-base with angled connections · Connection accessories | |
| NAVW-1/4-NPT-1 | Manifold sub-base with angled connections · Connection accessories | |
| NAVW-3/8-NPT-2 | Manifold sub-base with angled connections · Connection accessories | |
| NZV-1-2 | Intermediate plate · Connection accessories | |
| VABF-S1-1-R1C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R1C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R3C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R3C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R2C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R2C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R4C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R4C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R5C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R5C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R6C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R6C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-R7C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-1-R7C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-1-P1A3-G38 | Vertical pressure supply plate · Connection accessories | |
| VABF-S1-1-F1B1-C | Throttle plate · Connection accessories | |
| VABF-S1-1-L1D1-C | Vertical pressure shut-off plate · Connection accessories | |
| VABF-S1-2-R1C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R1C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R2C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R2C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R3C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R3C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R4C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R4C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R5C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R5C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R6C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R6C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-R7C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S1-2-R7C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S1-2-P1A3-G12 | Vertical pressure supply plate · Connection accessories | |
| VABF-S1-2-F1B1-C | Throttle plate · Connection accessories | |
| VABF-S1-2-L1D1-C | Vertical pressure shut-off plate · Connection accessories | |
| VABD-S1-1-P1-C | Separator plate · Connection accessories | |
| VABD-S1-1-P2-C | Separator plate · Connection accessories | |
| VABD-S1-1-P3-C | Separator plate · Connection accessories | |
| VABD-S1-1-P6-C | Separator plate · Connection accessories | |
| VABV-S1-1SB-G38 | Sub-base · Connection accessories | |
| VABV-S1-1SB-N38 | Sub-base · Connection accessories | |
| VABV-S1-2SB-G12 | Sub-base · Connection accessories | |
| VABV-S1-2SB-N12 | Sub-base · Connection accessories | |
| VABS-S1-1S-G38 | Sub-base · Connection accessories | |
| VABS-S1-1S-N38 | Sub-base · Connection accessories | |
| VABS-S1-2S-G12 | Sub-base · Connection accessories | |
| VABS-S1-2S-N12 | Sub-base · Connection accessories | |
| VABE-S1-1LZ-G12 | End plate · Connection accessories | |
| VABE-S1-1LZ-N12 | End plate · Connection accessories | |
| VABE-S1-1L-G12 | End plate · Connection accessories | |
| VABE-S1-1L-N12 | End plate · Connection accessories | |
| VABE-S1-2LZ-G34 | End plate · Connection accessories | |
| VABE-S1-2LZ-N34 | End plate · Connection accessories | |
| VABE-S1-2L-G34 | End plate · Connection accessories | |
| VABE-S1-2L-N34 | End plate · Connection accessories | |
| VABE-S1-1RZ-G12 | End plate · Connection accessories | |
| VABE-S1-1RZ-N12 | End plate · Connection accessories | |
| VABE-S1-1R-G12 | End plate · Connection accessories | |
| VABE-S1-1R-N12 | End plate · Connection accessories | |
| VABE-S1-2RZ-G34 | End plate · Connection accessories | |
| VABE-S1-2RZ-N34 | End plate · Connection accessories | |
| VABE-S1-2R-G34 | End plate · Connection accessories | |
| VABE-S1-2R-N34 | End plate · Connection accessories | |
| VABD-S1-1-P7-C | Duct separation · Connection accessories | |
| VABF-S1-1-P1A12-G12 | Supply plate · Connection accessories | |
| VABF-S1-1-P1A12-N12 | Supply plate · Connection accessories | |
| VABF-S1-1-P1A11-G12 | Supply plate · Connection accessories | |
| VABF-S1-1-P1A11-N12 | Supply plate · Connection accessories |
