How can I get a price quote for Festo VABS-S1-2S-G12?

You can request a fast quote for Festo VABS-S1-2S-G12 from Yılsa Engineering. Reference part number YLSUXR3HIHHULEC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VABS-S1-2S-G12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VABS-S1-2S-G12 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VABS-S1-2S-G12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

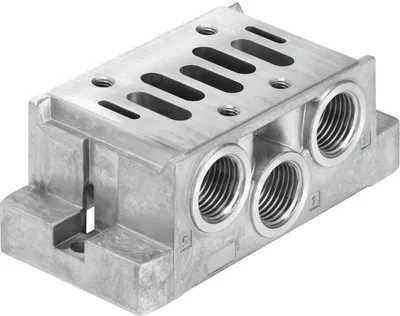

Festo VABS-S1-2S-G12

Sub-base

FestoMFR # VABS-S1-2S-G12SKU # YLSUXR3HIHHULEC

Construction width58

Exhaust-air functionCan be throttled

Based on standardISO 5599-1

Max. number of valve positions1

Operating pressure-0.09, 1.6

Operating pressure-0.9, 16

Have questions?Chat on WhatsApp

About This Product

Festo VABS-S1-2S-G12 (Sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABS-S1-2S-G12 — price, stock availability and technical specifications.

Festo VABS-S1-2S-G12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Construction width58

Exhaust-air functionCan be throttled

Based on standardISO 5599-1

Max. number of valve positions1

Operating pressure-0.09, 1.6

Operating pressure-0.9, 16

Pilot pressure0, 1.6

Pilot pressure0, 16

Suitability for vacuumYes

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Media temperature-10, 60

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 60

Product weight380

Type of mountingVia through-hole for M6 screw

Pilot air port 12/14G1/8

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Pneumatic connection, port 3G1/2

Pneumatic connection, port 4G1/2

Pneumatic connection, port 5G1/2

Note on materialsRoHS compliant

Material sub-baseDie-cast aluminium

Accessories 20

Genuine accessories that can be used with the Festo VABS-S1-2S-G12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
U-1/2	Silencer · Silencer
U-1/2-B	Silencer · Silencer
QS-G1/2-12-20	Push-in fitting · Push-in fittings
QS-G1/2-16-20	Push-in fitting · Push-in fittings
QSL-G1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-G1/2-16-20	Push-in L-fitting · Push-in fittings
QS-G1/8-10-I	Push-in fitting · Push-in fittings
QS-G1/8-10-I-100	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QS-G1/2-12	Push-in fitting · Push-in fittings
QS-G1/2-16	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-6-I	Push-in fitting · Push-in fittings
QS-G1/8-8-I	Push-in fitting · Push-in fittings
QS-G1/2-12-I	Push-in fitting · Push-in fittings
QSL-G1/2-12	Push-in L-fitting · Push-in fittings
QSL-G1/2-16	Push-in L-fitting · Push-in fittings
U-1/2-20	Silencer · Silencer
