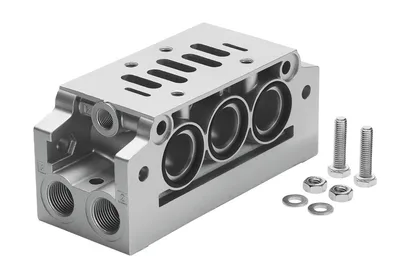

FESTO NAVW-3/8-2-ISO
Manifold sub-base with angled connections
Mounting positionAny
Conforms to standardISO 5599-1
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-20, 80
Media temperature-10, 60
Ambient temperature-10, 60
About This Product
FESTO NAVW-3/8-2-ISO (Manifold sub-base with angled connections) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO NAVW-3/8-2-ISO — price, stock availability and technical specifications.
FESTO NAVW-3/8-2-ISO
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Mounting positionAny
Conforms to standardISO 5599-1
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumEster oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-20, 80
Media temperature-10, 60
Ambient temperature-10, 60
Product weight550
Mounting method for sub-baseWith through-hole
Type of mountingWith through-hole
Pilot air port 12/14G1/8
Auxiliary pilot air port 12G1/8
Auxiliary pilot air port 14G1/8
Pilot air port 12G1/8
Pilot air port 14G1/8
Pneumatic connection, port 1G3/8
Pneumatic connection, port 2G3/8
Pneumatic connection, port 4G3/8
Material sub-baseDie-cast aluminium
Accessories 23
Genuine accessories that can be used with the FESTO NAVW-3/8-2-ISO motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| NEV-2DA/DB-ISO | End plate kit · Connection accessories | |
| QS-G1/8-4-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-I-100 | Push-in fitting · Push-in fittings | |
| QS-1/8-6-I-100 | Push-in fitting · Push-in fittings | |
| QS-1/8-8-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/8-4-I-100 | Push-in fitting · Push-in fittings | |
| QS-1/8-4-I | Push-in fitting · Push-in fittings | |
| QS-1/8-6-I | Push-in fitting · Push-in fittings | |
| QS-1/8-8-I | Push-in fitting · Push-in fittings | |
| QS-3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-3/8-12-I | Push-in fitting · Push-in fittings | |
| QS-1/8-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/8-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-3/8-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-3/8-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-I | Push-in fitting · Push-in fittings |
