How can I get a price quote for Festo VABV-S1-1SB-N38?

You can request a fast quote for Festo VABV-S1-1SB-N38 from Yılsa Engineering. Reference part number YLSA1MGWDBERTG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VABV-S1-1SB-N38 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VABV-S1-1SB-N38 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VABV-S1-1SB-N38?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

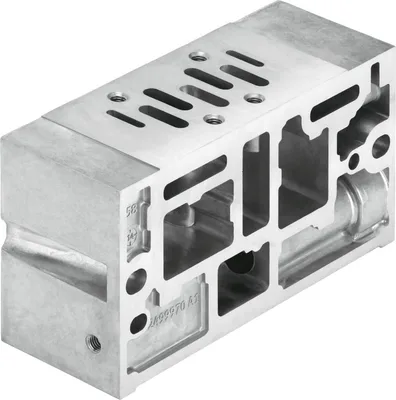

Festo VABV-S1-1SB-N38

Sub-base

FestoMFR # VABV-S1-1SB-N38SKU # YLSA1MGWDBERTG

Construction width44

Exhaust-air functionCan be throttled

Based on standardISO 5599-1

Max. number of valve positions1

Operating pressure-0.09, 1.6

Operating pressure-0.9, 16

Have questions?Chat on WhatsApp

About This Product

Festo VABV-S1-1SB-N38 (Sub-base) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABV-S1-1SB-N38 — price, stock availability and technical specifications.

Festo VABV-S1-1SB-N38

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Construction width44

Exhaust-air functionCan be throttled

Based on standardISO 5599-1

Max. number of valve positions1

Operating pressure-0.09, 1.6

Operating pressure-0.9, 16

Suitability for vacuumYes

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Media temperature-10, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 50

Product weight490

Pneumatic connection, port 23/8 NPT

Pneumatic connection, port 43/8 NPT

Note on materialsRoHS compliant

Material sub-baseDie-cast aluminium

Accessories 1

Genuine accessories that can be used with the Festo VABV-S1-1SB-N38 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
