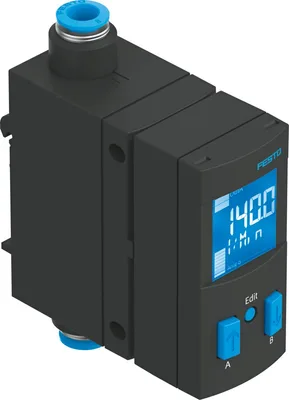

Festo SFAB-

Flow sensor. Flow sensor with integrated digital display. With unidirectional flow input. Mounting: H-rail, wall or surface mounting. Certification: C-Tick. Sustainable operation with system consumption monitoring

FestoMFR # SFAB-SKU # YLSS3KGTS5ZRJD

Symbol00992242, 00992243, 00995566

ApprovalRCM, c UL us - Listed (Oil)

Explosion protectionZone 2 (ATEX), Zone 22 (ATEX)

ATEX category gasII 3G

ATEX category dustII 3D

Explosion ambient temperature0°C <= Ta <= +50°C

Have questions?Chat on WhatsApp

About This Product

Festo SFAB-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00992242, 00992243, 00995566

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Explosion protectionZone 2 (ATEX), Zone 22 (ATEX)

ATEX category gasII 3G

Explosion ignition protection type for gasEx nA IIC T5 X Gc

ATEX category dustII 3D

Explosion ignition protection type for dustEx tc IIIB T80°C X Dc IP54

Explosion ambient temperature0°C <= Ta <= +50°C

Certificate issuing authorityUL E322346

Note on materialsRoHS compliant

Measured variableMass flow rate, Temperature, Volume, Volumetric flow rate

Flow directionUnidirectional, P1 -> P2

Measuring principlethermal

Measurement methodHeat loss

Start value for flow rate measuring range0.1, 10

End value for flow rate measuring range3, 1000

Temperature measurement start value0

Temperature measurement end value50

Operating pressure0, 1

Operating pressure0, 10

Operating pressure0, 145

Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4], Compressed air to ISO 8573-1:2010 [7:4:4], Carbon dioxide, Nitrogen

Media temperature0, 50

Ambient temperature0, 50

Nominal temperature23

Accuracy of flow rate± (3% o.m.v. + 0.3% FS)

Accuracy temperature in ± °C5

Repetition accuracy offset in ± %FS0.2

Repetition accuracy span in ± %FS0.8

Temperature coefficient span in ± %FS/Ktyp. 0.1%FS/K

Pressure influence span in ± %FS/bar0.5

Switching output2 x PNP or 2 x NPN, switchable

Switching functionWindow comparator, Threshold value comparator

Switching element functionNC or NO, switchable

Switch-on time10

Switch-off time10

Max. output current100

Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V

Flow characteristic curve start value0

Flow characteristic curve end value10, 1000

Temperature characteristic curve start value0

Temperature characteristic curve end value100

Output characteristic curve start value0

Output characteristic curve end value10

Output characteristic curve starting value4

Output characteristic curve end value20

Max. load resistance current output500

Min. load resistance voltage output10

Short circuit current ratingYes

Overload protectionAvailable

ProtocolIO-Link®

IO-Link, revision IDV1.1

IO-Link, device profileFunction Extended identification, Function Measurement data, standard resolution, Function Multiple switching signal, Firmware update, Function locator, Function Product URI, Function Teach single val

IO-Link, transmission rateCOM3

IO-Link, SIO-Mode supportYes

IO-Link, port typeClass A

IO-Link, process data length output0

IO-Link, process data length input64

IO-Link, Process data content INFlow rate measurement 16 bit MDC, Flow rate monitoring 2-bit SSC, Measured temperature value 16 bit MDC, Temperature monitoring 2-bit SSC, Volume / mass pulse 1 bit SSC

IO-Link, Service data INVolume/mass measured value 32 bit

IO-Link, minimum cycle time1.2

IO-Link, Data storage required500

Operational voltage range DC15, 30

No-load supply current90, 120

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores5

Electrical connection 1, type of mountingScrew-type lock, Not rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock

Electrical connection 1, connection pattern00995383

Type of mountingWith through-hole, via DIN rail, Via wall/surface bracket

Mounting positionAny

Pneumatic connectionFor tubing O.D. 6 mm, For tubing O.D. 8 mm, For tubing outside diameter of 10 mm, For tubing O.D. 12 mm, For tubing outside Ø 1/4", For tubing outside Ø 5/16", For tubing outside Ø 3/8"

Product weight160

Material housingReinforced PA

Display typeIlluminated LCD, multi-colour

Displayable unitsg, g/min, l, l/h, l/min, m3, m3/h, scf, scfm

Setting optionsIO-Link®, Teach-in, Via display and buttons

Protection against tamperingIO-Link®, PIN code

Degree of protectionIP65

Pressure drop100

Protection classIII

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Accessories 51

Genuine accessories that can be used with the Festo SFAB- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SDE1-..-W..	Adapter plate · Mounting accessories
NEBA-M12G5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE5	Connecting cable · Connecting cables
GASA-EI-CTR-12M-1	AX Industrial App · Digital services
GASA-EI-CTR-12M-10	AX Industrial App · Digital services
GASA-EI-CTR-12M-20	AX Industrial App · Digital services
GASA-EI-CTR-12M-1000	AX Industrial App · Digital services
GASA-EI-CTR-12M-100	AX Industrial App · Digital services
PUN-8X1,25-SI	Plastic tubing · Tubing
PAN-6X1-SI	Plastic tubing · Tubing
PUN-8X1,25-DUO-SI	DUO tubing · Tubing
PUN-8X1,25-BL	Plastic tubing · Tubing
PUN-8X1,25-SW	Plastic tubing · Tubing
PUN-8X1,25-DUO-BS	DUO tubing · Tubing
PUN-8X1,25-RT	Plastic tubing · Tubing
PUN-8X1,25-GE	Plastic tubing · Tubing
PUN-8X1,25-GN	Plastic tubing · Tubing
PUN-8X1,25-S-1-BL	Spiral plastic tubing · Tubing
PUN-8X1,25-S-2-BL	Spiral plastic tubing · Tubing
PUN-8X1,25-S-6-BL	Spiral plastic tubing · Tubing
PUN-8X1,25-S-1-SW	Spiral plastic tubing · Tubing
PUN-8X1,25-S-2-SW	Spiral plastic tubing · Tubing
PUN-8X1,25-S-6-SW	Spiral plastic tubing · Tubing
PUN-8X1,25-S-1-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-8X1,25-S-2-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-8X1,25-S-6-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-8X1,25-SI-400	Plastic tubing · Tubing
PUN-8X1,25-BL-400	Plastic tubing · Tubing
PAN-6X1-NT	Plastic tubing · Tubing
PAN-6X1-SI-500	Plastic tubing · Tubing
PAN-6X1-BL-500	Plastic tubing · Tubing
PAN-6X1-SW-500	Plastic tubing · Tubing
PAN-6X1-BL	Plastic tubing · Tubing
PAN-6X1-SW	Plastic tubing · Tubing
PAN-6X1-GN	Plastic tubing · Tubing
PAN-6X1-RT	Plastic tubing · Tubing
PAN-6X1-GE	Plastic tubing · Tubing
PUN-8X1,25-SW-400	Plastic tubing · Tubing
NEBU-M12G5-E-5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-7.5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-M12G5	Connecting cable · Connecting cables
NEBS-M12G5-ES-5-LE5	Connecting cable · Connecting cables
NEBS-M12G5-ES-10-LE5	Connecting cable · Connecting cables
NEBC-M12G5-ES-5-LE5-CO	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE5	Connecting cable · Connecting cables
NEBA-M12G5-U-10-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE5	Connecting cable · Connecting cables
NEBU-M12G5-E-5-Q8N-LE5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-LE5	Connecting cable · Connecting cables
NEBC-M12G5-S-1,5-N-M12G5	Connecting cable · Connecting cables
NEBS-M12G5-ES-15-LE5	Connecting cable · Connecting cables
