How can I get a price quote for Festo QSPLLKG18-8?

You can request a fast quote for Festo QSPLLKG18-8 from Yılsa Engineering. Reference part number CEY-937FC7825EF3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo QSPLLKG18-8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo QSPLLKG18-8 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo QSPLLKG18-8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

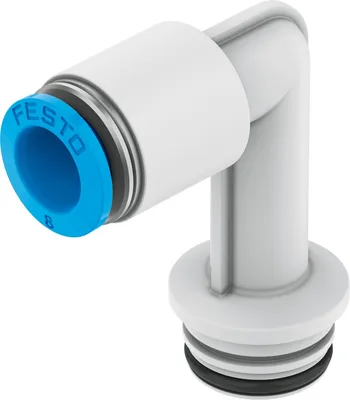

Festo QSPLLKG18-8

Cartridge. Compact installation space. Threadless mounting. Straight shape, L-shape

FestoMFR # QSPLLKG18-8SKU # CEY-937FC7825EF3

SizeStandard

Nominal size5.2

Tubing insertion depth18.2

Type of seal on screwed plugO-ring

Mounting positionAny

DesignL-shape, long

Have questions?Chat on WhatsApp

About This Product

Cartridge. Compact installation space. Threadless mounting. Straight shape, L-shape

Festo QSPLLKG18-8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size5.2

Tubing insertion depth18.2

Type of seal on screwed plugO-ring

Mounting positionAny

DesignL-shape, long

Size of pack10

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-5, 60

Product weight8.1

Type of mountingMounting pin

Pneumatic connection, port 1Cartridge 18 mm

Pneumatic connection, port 2For tubing outside diameter of 8 mm

Colour of release ringBlue

Note on materialsRoHS compliant

Material housingReinforced PA

Material release ringPOM

Material tubing sealNBR

Material tubing clamp componentHigh-alloy stainless steel

Accessories 73

Genuine accessories that can be used with the Festo QSPLLKG18-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-8X1,25-SI	Plastic tubing · Tubing
PAN-8X1,25-SI	Plastic tubing · Tubing
PUN-8X1,25-DUO-SI	DUO tubing · Tubing
PUN-8X1,25-BL	Plastic tubing · Tubing
PUN-8X1,25-SW	Plastic tubing · Tubing
PUN-8X1,25-DUO-BS	DUO tubing · Tubing
PUN-8X1,25-RT	Plastic tubing · Tubing
PUN-8X1,25-GE	Plastic tubing · Tubing
PUN-8X1,25-GN	Plastic tubing · Tubing
PUN-H-8X1,25-NT	Plastic tubing · Tubing
PUN-H-8X1,25-BL	Plastic tubing · Tubing
PUN-H-8X1,25-SW	Plastic tubing · Tubing
PUN-H-8X1,25-DUO	DUO tubing · Tubing
PUN-8X1,25-S-1-BL	Spiral plastic tubing · Tubing
PUN-8X1,25-S-2-BL	Spiral plastic tubing · Tubing
PUN-8X1,25-S-6-BL	Spiral plastic tubing · Tubing
PUN-8X1,25-S-1-SW	Spiral plastic tubing · Tubing
PUN-8X1,25-S-2-SW	Spiral plastic tubing · Tubing
PUN-8X1,25-S-6-SW	Spiral plastic tubing · Tubing
PUN-8X1,25-S-1-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-8X1,25-S-2-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-8X1,25-S-6-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-8X1,25-SI-400	Plastic tubing · Tubing
PUN-8X1,25-BL-400	Plastic tubing · Tubing
PEN-8X1,25-SW	Plastic tubing · Tubing
PEN-8X1,25-NT	Plastic tubing · Tubing
PAN-8X1,25-NT	Plastic tubing · Tubing
PEN-8X1,25-SW-400	Plastic tubing · Tubing
PEN-8X1,25-BL-400	Plastic tubing · Tubing
PEN-8X1,25-SI-400	Plastic tubing · Tubing
PEN-8X1,25-BL	Plastic tubing · Tubing
PEN-8X1,25-SI	Plastic tubing · Tubing
PEN-8X1,25-GN	Plastic tubing · Tubing
PEN-8X1,25-RT	Plastic tubing · Tubing
PEN-8X1,25-GE	Plastic tubing · Tubing
PUN	Plastic tubing · Tubing
PAN	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PLN	Plastic tubing · Tubing
PAN-8X1,25-SI-400	Plastic tubing · Tubing
PAN-8X1,25-BL-400	Plastic tubing · Tubing
PAN-8X1,25-SW-400	Plastic tubing · Tubing
PAN-8X1,25-BL	Plastic tubing · Tubing
PAN-8X1,25-SW	Plastic tubing · Tubing
PAN-8X1,25-GN	Plastic tubing · Tubing
PAN-8X1,25-RT	Plastic tubing · Tubing
PAN-8X1,25-GE	Plastic tubing · Tubing
PUN-8X1,25-SW-400	Plastic tubing · Tubing
PUN-H-8X1,25-SW-400	Plastic tubing · Tubing
PUN-H-8X1,25-BL-400	Plastic tubing · Tubing
PUN-H-8X1,25-NT-400	Plastic tubing · Tubing
PUN-H-8X1,25-SI-400	Plastic tubing · Tubing
PUN-H-8X1,25-SI	Plastic tubing · Tubing
PUN-H-8X1,25-RT	Plastic tubing · Tubing
PUN-H-8X1,25-GN	Plastic tubing · Tubing
PUN-H-8X1,25-GE	Plastic tubing · Tubing
PUN-H-8X1,25-TBL	Plastic tubing · Tubing
PUN-H-8X1,25-TBL-400	Plastic tubing · Tubing
PUN-H-8X1,25-TSW	Plastic tubing · Tubing
PUN-H-8X1,25-TSW-400	Plastic tubing · Tubing
PUN-H-8X1,25-TRT	Plastic tubing · Tubing
PUN-H-8X1,25-TRT-400	Plastic tubing · Tubing
PUN-H-8X1,25-TGN	Plastic tubing · Tubing
PUN-H-8X1,25-TGN-400	Plastic tubing · Tubing
PUN-H-8X1,25-TGE	Plastic tubing · Tubing
PUN-H-8X1,25-TGE-400	Plastic tubing · Tubing
PUN-H-F-8X1,25-RT	Plastic tubing · Tubing
PUN-H-F-8X1,25-BL	Plastic tubing · Tubing
PUN-H-F-8X1,25-TBL	Plastic tubing · Tubing
PUN-H-F-8X1,25-GN	Plastic tubing · Tubing
PUN-H-F-8X1,25-GE	Plastic tubing · Tubing
PUN-H-F-8X1,25-SW	Plastic tubing · Tubing
PUN-H-F-8X1,25-NT	Plastic tubing · Tubing
