How can I get a price quote for FESTO MPYE-5-3/8-010-B?

You can request a fast quote for FESTO MPYE-5-3/8-010-B from Yılsa Engineering. Reference part number CEY-937FC7825D92. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MPYE-5-3/8-010-B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MPYE-5-3/8-010-B genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MPYE-5-3/8-010-B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

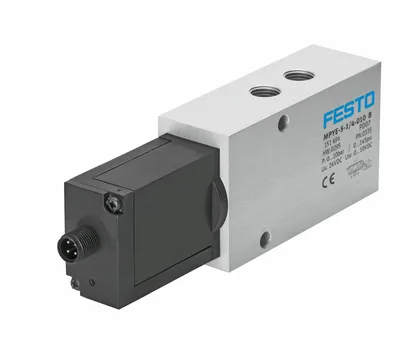

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO MPYE-5-3/8-010-B

Proportional directional control valve. Controlled piston spool valve. Analogue actuation. Setpoint input as an analogue voltage signal (4 ... 20 mA). Suitable for servo-pneumatic applications with end-position controller SPC11

FESTOMFR # MPYE-5-3/8-010-BSKU # CEY-937FC7825D92

Nominal size10

Type of actuationElectrical

Sealing principleHard

Mounting positionAny

DesignPiston gate valve

Type of resetMagnetic spring

Have questions?Chat on WhatsApp

About This Product

FESTO MPYE-5-3/8-010-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size10

Type of actuationElectrical

Sealing principleHard

Mounting positionAny

DesignPiston gate valve

Type of resetMagnetic spring

Safety instructionsSafety position MPYE: if the power supply cable is blocked, the valve assumes the closed mid-position.

Type of pilotingDirect

Flow directionNon-reversible

Symbol00995308

Valve function5/3-way, closed

Reverse polarity protectionFor all electrical connections

Operating pressure0, 1

Operating pressure0, 10

b value0.21

C value9

Standard nominal flow rate (standardised to DIN 1343)2000

Limit frequency70

Max. hysteresis0.4

Operational voltage range DC17, 30

Residual ripple5%

SETPOINT/ACTUAL valuesVoltage type 0 - 10 V

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Media temperature5, 40

Degree of protectionIP65

Ambient temperature0, 50

Product weight685

Electrical connectionM12x1, Plug, Round design

Type of mountingWith through-hole

Pneumatic connection, port 1G3/8

Pneumatic connection, port 2G3/8

Pneumatic connection, port 3G3/8

Pneumatic connection, port 4G3/8

Pneumatic connection, port 5G3/8

Note on materialsRoHS compliant

Material coverABS, coated

Material sealsNBR

Material housingAluminium, anodised

Accessories 193

Genuine accessories that can be used with the FESTO MPYE-5-3/8-010-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NECB-M12G5-C2	Socket · Electrical accessories
NECB-M12W5-C2	Socket · Electrical accessories
CK-3/8-PK-6	Quick connector · Quick connectors
CK-3/8-PK-9	Quick connector · Quick connectors
U-3/8	Silencer · Silencer
CK-3/8-PK-13	Quick connector · Quick connectors
LCK-3/8-PK-6	Elbow quick connector · Quick connectors
LCK-3/8-PK-9	Elbow quick connector · Quick connectors
TCK-3/8-PK-6	T-quick connector · Quick connectors
TCK-3/8-PK-9	T-quick connector · Quick connectors
CK-3/8-PK-6-KU	Quick connector · Quick connectors
CK-3/8-PK-9-KU	Quick connector · Quick connectors
U-3/8-B	Silencer · Silencer
CN-3/8-PK-6	Barbed fitting · Barbed fittings
TCN-3/8-PK-6	Barbed T-fitting · Barbed fittings
LCN-3/8-PK-6	Barbed elbow fitting · Barbed fittings
LCNH-3/8-PK-6	Barbed elbow fitting · Barbed fittings
QSW-3/8-10	Push-in fitting · Push-in fittings
QSW-3/8-12	Push-in fitting · Push-in fittings
QS-3/8-8-50	Push-in fitting · Push-in fittings
QS-3/8-10-50	Push-in fitting · Push-in fittings
QS-3/8-12-20	Push-in fitting · Push-in fittings
QSL-3/8-8-50	Push-in L-fitting · Push-in fittings
QSL-3/8-10-20	Push-in L-fitting · Push-in fittings
QSL-3/8-12-20	Push-in L-fitting · Push-in fittings
QST-3/8-8-50	Push-in T-fitting · Push-in fittings
QST-3/8-10-20	Push-in T-fitting · Push-in fittings
QST-3/8-12-20	Push-in T-fitting · Push-in fittings
QS-G3/8-8-50	Push-in fitting · Push-in fittings
QS-G3/8-10-50	Push-in fitting · Push-in fittings
QS-G3/8-12-20	Push-in fitting · Push-in fittings
QSL-G3/8-8-50	Push-in L-fitting · Push-in fittings
QSL-G3/8-10-20	Push-in L-fitting · Push-in fittings
QSL-G3/8-12-20	Push-in L-fitting · Push-in fittings
QST-G3/8-8-50	Push-in T-fitting · Push-in fittings
QST-G3/8-10-20	Push-in T-fitting · Push-in fittings
QST-G3/8-12-20	Push-in T-fitting · Push-in fittings
QS-3/8-8	Push-in fitting · Push-in fittings
QS-3/8-10	Push-in fitting · Push-in fittings
QS-3/8-12	Push-in fitting · Push-in fittings
QS-3/8-8-I	Push-in fitting · Push-in fittings
QS-3/8-10-I	Push-in fitting · Push-in fittings
QS-3/8-12-I	Push-in fitting · Push-in fittings
QSL-3/8-8	Push-in L-fitting · Push-in fittings
QSL-3/8-10	Push-in L-fitting · Push-in fittings
QSL-3/8-12	Push-in L-fitting · Push-in fittings
QSLL-3/8-8	Push-in L-fitting, long · Push-in fittings
QSLL-3/8-10	Push-in L-fitting, long · Push-in fittings
QSLL-3/8-12	Push-in L-fitting, long · Push-in fittings
QSLV-3/8-8	Push-in L-fitting · Push-in fittings
QSLV-3/8-10	Push-in L-fitting · Push-in fittings
QSLV-3/8-12	Push-in L-fitting · Push-in fittings
QSLV-3/8-8-I	Push-in L-fitting · Push-in fittings
QSLV-3/8-10-I	Push-in L-fitting · Push-in fittings
QSLV-3/8-12-I	Push-in L-fitting · Push-in fittings
QST-3/8-8	Push-in T-fitting · Push-in fittings
QST-3/8-10	Push-in T-fitting · Push-in fittings
QST-3/8-12	Push-in T-fitting · Push-in fittings
QSTL-3/8-8	Push-in T-fitting · Push-in fittings
QSTL-3/8-10	Push-in T-fitting · Push-in fittings
QSTL-3/8-12	Push-in T-fitting · Push-in fittings
QSY-3/8-8	Push-in Y-fitting · Push-in fittings
QSY-3/8-10	Push-in Y-fitting · Push-in fittings
QSY-3/8-12	Push-in Y-fitting · Push-in fittings
QSYL-3/8-8	Push-in Y-fitting · Push-in fittings
QSYL-3/8-10	Push-in Y-fitting · Push-in fittings
QSYL-3/8-12	Push-in Y-fitting · Push-in fittings
QSTF-3/8-8-B	Push-in T-fitting · Push-in fittings
QSTF-3/8-10-B	Push-in T-fitting · Push-in fittings
QSTF-3/8-12-B	Push-in T-fitting · Push-in fittings
QSYLV-3/8-10	Push-in Y-fitting · Push-in fittings
QSYTF-3/8-10-B	Multiple distributor · Push-in fittings
QST3-3/8-10-8	Multiple distributor · Push-in fittings
QSLV2-3/8-8	Multiple distributor · Push-in fittings
QSLV2-3/8-10	Multiple distributor · Push-in fittings
QSLV2-3/8-12	Multiple distributor · Push-in fittings
QSLV3-3/8-8	Multiple distributor · Push-in fittings
QSLV3-3/8-10	Multiple distributor · Push-in fittings
QSLV3-3/8-12	Multiple distributor · Push-in fittings
QSLV4-3/8-8	Multiple distributor · Push-in fittings
QSLV4-3/8-10	Multiple distributor · Push-in fittings
QSLV4-3/8-12	Multiple distributor · Push-in fittings
QSLV6-3/8-8	Multiple distributor · Push-in fittings
QSLV6-3/8-10	Multiple distributor · Push-in fittings
QSLV6-3/8-12	Multiple distributor · Push-in fittings
QSR-3/8-8	Push-in fitting, rotatable · Push-in fittings
QSR-3/8-10	Push-in fitting, rotatable · Push-in fittings
QSR-3/8-12	Push-in fitting, rotatable · Push-in fittings
QSRL-3/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSRL-3/8-10	Push-in L-fitting, rotatable · Push-in fittings
QSRL-3/8-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-3/8-8	Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-10	Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-3/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-3/8-10	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-3/8-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-3/8-8	Push-in fitting · Push-in fittings
QS-V0-3/8-10	Push-in fitting · Push-in fittings
QS-V0-3/8-12	Push-in fitting · Push-in fittings
QSL-V0-3/8-8	Push-in L-fitting · Push-in fittings
QSL-V0-3/8-10	Push-in L-fitting · Push-in fittings
QSL-V0-3/8-12	Push-in L-fitting · Push-in fittings
QST-V0-3/8-8	Push-in T-fitting · Push-in fittings
QST-V0-3/8-10	Push-in T-fitting · Push-in fittings
QST-V0-3/8-12	Push-in T-fitting · Push-in fittings
QS-3/8-16	Push-in fitting · Push-in fittings
QSL-3/8-16	Push-in L-fitting · Push-in fittings
QST-3/8-16	Push-in T-fitting · Push-in fittings
QS-3/8-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-3/8-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-G3/8-8	Push-in fitting · Push-in fittings
QS-G3/8-10	Push-in fitting · Push-in fittings
QS-G3/8-12	Push-in fitting · Push-in fittings
QS-G3/8-8-I	Push-in fitting · Push-in fittings
QS-G3/8-10-I	Push-in fitting · Push-in fittings
QS-G3/8-12-I	Push-in fitting · Push-in fittings
QSL-G3/8-8	Push-in L-fitting · Push-in fittings
QSL-G3/8-10	Push-in L-fitting · Push-in fittings
QSL-G3/8-12	Push-in L-fitting · Push-in fittings
QSLL-G3/8-8	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-10	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-12	Push-in L-fitting, long · Push-in fittings
QSLV-G3/8-8	Push-in L-fitting · Push-in fittings
QSLV-G3/8-10	Push-in L-fitting · Push-in fittings
QSLV-G3/8-12	Push-in L-fitting · Push-in fittings
QSLV-G3/8-8-I	Push-in L-fitting · Push-in fittings
QSLV-G3/8-10-I	Push-in L-fitting · Push-in fittings
QSLV-G3/8-12-I	Push-in L-fitting · Push-in fittings
QST-G3/8-8	Push-in T-fitting · Push-in fittings
QST-G3/8-10	Push-in T-fitting · Push-in fittings
QST-G3/8-12	Push-in T-fitting · Push-in fittings
QSTL-G3/8-8	Push-in T-fitting · Push-in fittings
QSTL-G3/8-10	Push-in T-fitting · Push-in fittings
QSTL-G3/8-12	Push-in T-fitting · Push-in fittings
QSY-G3/8-8	Push-in Y-fitting · Push-in fittings
QSY-G3/8-10	Push-in Y-fitting · Push-in fittings
QSY-G3/8-12	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-8	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-10	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-12	Push-in Y-fitting · Push-in fittings
QSTF-G3/8-8	Push-in T-fitting · Push-in fittings
QSTF-G3/8-10	Push-in T-fitting · Push-in fittings
QSTF-G3/8-12	Push-in T-fitting · Push-in fittings
QSYLV-G3/8-10	Push-in Y-fitting · Push-in fittings
QSYTF-G3/8-10	Multiple distributor · Push-in fittings
QST3-G3/8-10-8	Multiple distributor · Push-in fittings
QSLV2-G3/8-8	Multiple distributor · Push-in fittings
QSLV2-G3/8-10	Multiple distributor · Push-in fittings
QSLV2-G3/8-12	Multiple distributor · Push-in fittings
QSLV3-G3/8-8	Multiple distributor · Push-in fittings
QSLV3-G3/8-10	Multiple distributor · Push-in fittings
QSLV3-G3/8-12	Multiple distributor · Push-in fittings
QSLV4-G3/8-8	Multiple distributor · Push-in fittings
QSLV4-G3/8-10	Multiple distributor · Push-in fittings
QSLV4-G3/8-12	Multiple distributor · Push-in fittings
QSLV6-G3/8-8	Multiple distributor · Push-in fittings
QSLV6-G3/8-10	Multiple distributor · Push-in fittings
QSLV6-G3/8-12	Multiple distributor · Push-in fittings
QSR-G3/8-8	Push-in fitting, rotatable · Push-in fittings
QSR-G3/8-10	Push-in fitting, rotatable · Push-in fittings
QSR-G3/8-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G3/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G3/8-10	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G3/8-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G3/8-8	Push-in fitting, self-sealing · Push-in fittings
QSK-G3/8-10	Push-in fitting, self-sealing · Push-in fittings
QSK-G3/8-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G3/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G3/8-10	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G3/8-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G3/8-8	Push-in fitting · Push-in fittings
QS-V0-G3/8-10	Push-in fitting · Push-in fittings
QS-V0-G3/8-12	Push-in fitting · Push-in fittings
QSL-V0-G3/8-8	Push-in L-fitting · Push-in fittings
QSL-V0-G3/8-10	Push-in L-fitting · Push-in fittings
QSL-V0-G3/8-12	Push-in L-fitting · Push-in fittings
QST-V0-G3/8-8	Push-in T-fitting · Push-in fittings
QST-V0-G3/8-10	Push-in T-fitting · Push-in fittings
QST-V0-G3/8-12	Push-in T-fitting · Push-in fittings
QS-G3/8-16	Push-in fitting · Push-in fittings
QSL-G3/8-16	Push-in L-fitting · Push-in fittings
QST-G3/8-16	Push-in T-fitting · Push-in fittings
QS-3/8-6	Push-in fitting · Push-in fittings
QSL-3/8-6	Push-in L-fitting · Push-in fittings
QSLL-3/8-6	Push-in L-fitting, long · Push-in fittings
QST-3/8-6	Push-in T-fitting · Push-in fittings
U-3/8-20	Silencer · Silencer
UOM-3/8	Silencer · Silencer
UC-3/8-20	Silencer · Silencer
AMTE-M-LH-G38	Silencer · Silencer
AMTE-M-H-G38	Silencer · Silencer
UC-3/8	Silencer · Silencer
