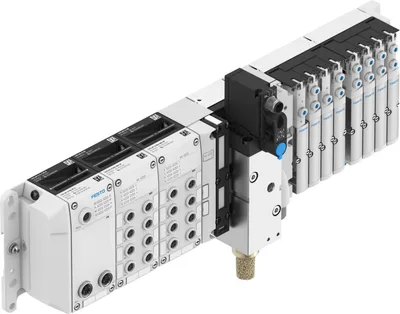

Festo MPA-FB-AP-VI

Valve terminal. Up to 15 remote I/O modules in IP65/67 can be freely combined. Communication via Ethernet-based fieldbuses and AP system. Integration of up to 128 valve functions/64 valve positions. Three valve sizes with flow rates of up to 670 l/min. Safety functions (e.g. PUS, STO, SEZ, SDE) can be realised quickly and easily. Freely positionable power supply and separate voltage zones. Easy to commission with the Festo Automation Suite

FestoMFR # MPA-FB-AP-VISKU # YLS7SLFIWUQJOUO

Electrical controlAP interface, Fieldbus

Electrical I/O systemYes

Terminal type32

ProtocolAP

Max. number of modules15

Mounting positionAny, on H-rail: horizontal

Have questions?Chat on WhatsApp

About This Product

Festo MPA-FB-AP-VI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Electrical controlAP interface, Fieldbus

Electrical I/O systemYes

Terminal type32

ProtocolAP

Type of mountingOn DIN rail via accessories, On mounting frame, Screw-clamped, With through-hole for M5 screw with accessories, With through-hole for M6 screw with accessories, Via through-hole for M5 screw, Via thro

Max. number of modules15

Mounting positionAny, on H-rail: horizontal

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Media temperature-5, 50

Ambient temperature-5, 50

Note on ambient temperatureObserve derating according to user documentation, Observe ambient temperature derating according to IEC 61131-2:2017

Storage temperature-20, 40

Relative air humidity5 - 90% at 40 °C, Non-condensing

Nominal altitude of use<= 2000 m ASL (> 79.5 kPa)

Max. installation height3500

Note on max. installation heightObserve derating according to user documentation, Observe ambient temperature derating according to IEC 61131-2:2017

Degree of protectionIP67

Note on degree of protectionUnused connections sealed

Corrosion resistance class CRC1 - Low corrosion stress

Protection against direct and indirect contactSELV/PELV power supply units required

Pollution degree2

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Pilot pressure0.3, 0.8

Pilot pressure3, 8

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

Approvalc UL us - Recognised (Oil)

Certificate issuing authorityMH19482

Note on materialsFree of halogen, Free of phosphoric acid ester

Valve terminal structureModular, valve sizes can be mixed

Max. number of valve positions64

Max. number of pressure zones17

Type of actuationElectrical

Valve function2/2-way, single solenoid, closed, 2x3/2 closed monostable, 2x3/2 open monostable, 2x3/2-way, open/closed, monostable, 3-way proportional pressure regulator, 3/2-way, single solenoid, closed, 3/2-way,

DesignPiston gate valve, Poppet valve with spring return

Valve size10

Pilot air supplyExternal, Internal

Max. standard nominal flow rate360 l/min at 10 mm, 550 l/min at 14 mm, 700 l/min at 20 mm

Suitability for vacuumYes

Flat silencerAt one end

pneumatic working portM7, G1/8, QS-4, QS-6, QS-8, QS-3/16, QS-1/4, QS-5/16

Signal status displayLED

Note on fieldbus interfaceAll information that is relevant to CPX-AP can be read out via the Ethernet interfaces/fieldbus connections and changed depending on the function., Auto MDI, the bus module performs a crossover check,

Fieldbus interfaceEthernet

Field bus, protocolACD (Address Conflict Detection), DLR (Device Level Ring), EtherCAT®, EtherCAT CoE, EtherCAT Distributed Clocks (DC), EtherCAT EoE, EtherCAT FoE, EtherCAT Modular Device Profile (MDP), EtherNet/IP, Et

Fieldbus interface, functionBus connection incoming/outgoing

Field bus, connection type2x socket

Field bus, connection systemM12x1, D-coded to EN 61076-2-101, RJ45 to IEC 61076-3-117 (V14), SCRJ according to IEC 61754-24-21

Field bus, connection pattern2, 8

Field bus interface, electrical isolationYes

Field bus interface, transmission rate100 Mbit/s

Max. address volume, inputs4096

Note on inputsEP: 488 bytes, Modbus: 4096 bytes

Max. address volume, outputs4096

Note on outputsEP: 496 bytes, Modbus: 4096 bytes

Internal cycle time< 1 ms

Configuration supportEDS file, ESI file, GSDML file, IODD file

Power supply, functionIncoming electronics/sensors and load and functional earth, Incoming electronics/sensors and load

Power supply, connection typePlug

power supply, connection system7/8“ to NFPA/T3.5.29, M12x1, L-coded to EN 61076-2-111, M18x1, M8x1, A-coded to EN 61076-2-104, Push-pull to IEC 61076-3-126

Power supply, number of pins/wires4, 5

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Nominal operating voltage DC24

Note on nominal operating voltage DCProtected Extra-Low-Voltage to IEC 60204-1

Permissible voltage fluctuations+/-25%

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Max. power supply4, 16

Typ. intrinsic current consumption at nominal operating voltage for electronic s40, 10000

Typ. intrinsic current consumption at nominal operating voltage, load3, 10000

Power failure bridging10

Potential separation between the supply voltages electronics/sensor technology aYes

Reverse polarity protectionYes

Accessories 43

Genuine accessories that can be used with the Festo MPA-FB-AP-VI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VMPA-FT-NW0.3-10	Fixed flow restrictor · Mounting accessories
VMPA-FT-NW0.5-10	Fixed flow restrictor · Mounting accessories
VMPA-FT-NW0.7-10	Fixed flow restrictor · Mounting accessories
VMPA-FT-NW1.0-10	Fixed flow restrictor · Mounting accessories
VMPA-FT-NW1.2-10	Fixed flow restrictor · Mounting accessories
VMPA-FT-NW1.5-10	Fixed flow restrictor · Mounting accessories
VMPA1-FTI-10	Retaining bracket · Mounting accessories
VMPA1-FT-NW0.3-1.7	Fixed flow restrictor-SET · Mounting accessories
VMPA-FT-NW1.7-10	Fixed flow restrictor · Mounting accessories
VMPA-BG-RW	Mounting · Mounting accessories
VMPA14-FTI	Retainer · Mounting accessories
VMPA2-FTI	Retainer · Mounting accessories
VMPA14-FT-NW0.3-1.7	Flow control SET · Mounting accessories
VMPA2-FT-NW0.3-1.7	Flow control SET · Mounting accessories
NOCC-M-S-SCRJG2PP-C5-PN	Plug · Electrical accessories
NTSD-GD-9	Plug socket · Electrical accessories
NTSD-WD-9	Plug socket · Electrical accessories
NTSD-GD-13,5	Power supply socket · Electrical accessories
ISK-M12	Cover cap · Mounting accessories
NECU-M-PPG5PP-C1-PN	Power supply socket · Electrical accessories
NTSD-WD-11	Power supply socket · Electrical accessories
NECU-G78G5-C2	Power supply socket · Electrical accessories
NEBC-D12G4-ES-3-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-5-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-3-S-R3G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-5-S-R3G4-ET	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-M12G5	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-M12G5	Connecting cable · Connecting cables
CAFM-X5-H	Mounting · Mounting accessories
NECB-S-M12G5-C2	Plug · Electrical accessories
NECB-S-M12G5-C2-D	Plug · Electrical accessories
NECL-S-L12W5-C2-Q10	Power supply plug · Electrical accessories
NECL-S-L12G5-C2-Q10	Power supply plug · Electrical accessories
NECL-L12G5-C2-Q10	Power supply socket · Electrical accessories
NECL-L12W5-C2-Q10	Power supply socket · Electrical accessories
CPX-AP-A-S-2-M12-4P	System supply · Electrical accessories
NECL-S-L12W4-C2-Q10	Power supply plug · Electrical accessories
NECL-L12W4-C2-Q10	Power supply socket · Electrical accessories
NECL-L12G4-C2-Q10	Power supply socket · Electrical accessories
NECL-S-L12G4-C2-Q10	Power supply plug · Electrical accessories
NEAC-M-S-BD-R3SCPP	Dummy plug · Electrical accessories
NECC-M-S-R3G8PP-HX-PN	Plug · Electrical accessories
CPX-AP-A	Remote I/O system · Connection accessories
