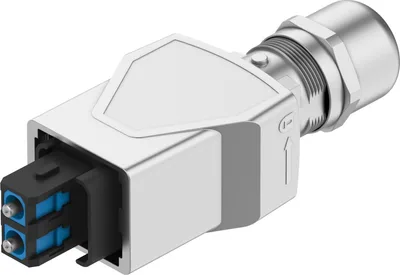

Festo NOCC-M-S-SCRJG2PP-C5-PN

Plug. Push-pull plug for fibre optic applications. For Ethernet interface with PROFINET protocol. Protection against unintentional removal

FestoMFR # NOCC-M-S-SCRJG2PP-C5-PNSKU # YLSNNPYOJSZBQ7G

Conforms to standardIEC 61754-24

ProtocolEthernet, PROFINET FOC

Additional functionsFulfils requirements according to AIDA

Frequency of connection100

Cable outletStraight

Product weight84

Have questions?Chat on WhatsApp

About This Product

Plug. Push-pull plug for fibre optic applications. For Ethernet interface with PROFINET protocol. Protection against unintentional removal

Festo NOCC-M-S-SCRJG2PP-C5-PN

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardIEC 61754-24

ProtocolEthernet, PROFINET FOC

Additional functionsFulfils requirements according to AIDA

Frequency of connection100

Cable outletStraight

Product weight84

Optical connection 1, connection typePlug

Optical connection 1, designSquare

Optical connection 1, connection technologySC-RJ to IEC 61754-24

Optical connection 1, number of pins/cores2

Optical connection 1, occupied pins/wires2

Optical connection 1, plug pattern00995772

Optical connection 1, type of mountingPush-pull with interlock against unintentional pulling

Optical connection 1, ferrule diameter2.5

Optical connection 2, connection technologyLock nut

Tightening torque0.42

Wire diameter0.98, 1

Type of wirePolymer fibre

Wavelength650 nm

Fire testUL94 V-0

Cable diameter5.5, 10

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-25, 70

Storage temperature-40, 70

LABS (PWIS) conformityVDMA24364-A1-L

Note on materialsRoHS compliant

Corrosion resistance class CRC1 - Low corrosion stress

Material housingNickel-plated die-cast zinc

Housing colourSilver

Material sealsNBR, TPE

Ferrule materialCopper alloy
