How can I get a price quote for Festo NECB-S-M12G5-C2?

You can request a fast quote for Festo NECB-S-M12G5-C2 from Yılsa Engineering. Reference part number YLSJ2RF9O474S0G. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NECB-S-M12G5-C2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NECB-S-M12G5-C2 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NECB-S-M12G5-C2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

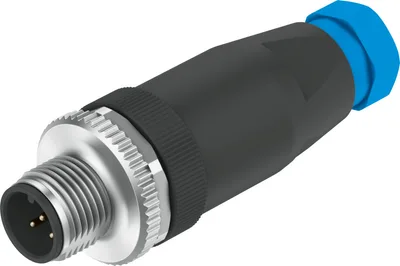

Festo NECB-S-M12G5-C2

Plug. Plug connectors for many cable diameters and wire cross-sections. Screw terminals with a wide range of nominal cross sections up to 0.75 mm. UL certified. Tested in accordance with IEC 61010-1 and IEC 61010- 2-202 for Festo valves. Degree of protection: IP65 and IP67. Better seals (FPM). Extended temperature range: -25 ... +90 °C

FestoMFR # NECB-S-M12G5-C2SKU # YLSJ2RF9O474S0G

Conforms to standardEN 61076-2-101

Approvalc UL us - Listed (Oil)

Certificate issuing authorityUL E474609

Frequency of connection100

Cable outletStraight

Product weight19

Have questions?Chat on WhatsApp

About This Product

Festo NECB-S-M12G5-C2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 61076-2-101

Approvalc UL us - Listed (Oil)

Certificate issuing authorityUL E474609

Frequency of connection100

Cable outletStraight

Product weight19

Instructions on useOnly energy-limited circuits with a maximum current of 4 A at a max. open circuit voltage of 30 V DC are permissible for supplying electrically actuated valves from Festo.

Electrical connection 1, functionControl side

Electrical connection 1, designRound

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores5

Electrical connection 1, used connections/cores5

Electrical connection 1, type of mountingScrew-type lock with 18 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00995383

Electrical connection 2, functionField device side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemScrew terminal

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores5

Operational voltage range DC0, 60

Operational voltage range AC0, 48

Current rating at 40° C4

Immunity to surge1.5

Protective conductor connectionNot provided

Cable fittingPg7

Cable diameter2.1, 7

Connection cross section0.14, 0.75

Note on connection cross-section0.1 mm² with wire ferrule

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-25, 90

Note on ambient temperatureObserve derating

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC1 - Low corrosion stress

Material housingPA66-GF30

Housing colourBlack

Material screw-type lockNickel-plated die-cast zinc

Material screwsNickel-plated steel

Material sealsFluoro rubber

Material electrical contactBrass, nickel-plated and gold-plated

Accessories 6

Genuine accessories that can be used with the Festo NECB-S-M12G5-C2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBA-M12G5-U-5-N-LE5	Connecting cable · Connecting cables
NEBA-M12G5-U-10-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE5	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-10-N-LE5	Connecting cable · Connecting cables
