How can I get a price quote for Festo NECC-M-S-R3G8PP-HX-PN?

You can request a fast quote for Festo NECC-M-S-R3G8PP-HX-PN from Yılsa Engineering. Reference part number YLS0CBT8COWTGIZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NECC-M-S-R3G8PP-HX-PN in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NECC-M-S-R3G8PP-HX-PN genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NECC-M-S-R3G8PP-HX-PN?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

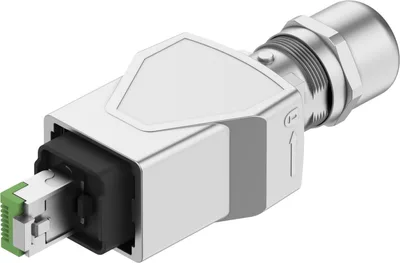

Festo NECC-M-S-R3G8PP-HX-PN

Plug. Encoder plug for motor controller. For controllers. 2-pin, 4-pin, 6-pin, 8-pin, 11-pin, 18-pin

FestoMFR # NECC-M-S-R3G8PP-HX-PNSKU # YLS0CBT8COWTGIZ

ProtocolEthernet, PROFINET

Additional functionsFulfils requirements according to AIDA

Frequency of connection750

Cable outletStraight

Product weight90

Electrical connection 1, designSquare

Have questions?Chat on WhatsApp

About This Product

Plug. Encoder plug for motor controller. For controllers. 2-pin, 4-pin, 6-pin, 8-pin, 11-pin, 18-pin

Festo NECC-M-S-R3G8PP-HX-PN

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolEthernet, PROFINET

Additional functionsFulfils requirements according to AIDA

Frequency of connection750

Cable outletStraight

Product weight90

Electrical connection 1, designSquare

Electrical connection 1, connection typePlug

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemRJ45

Electrical connection 1, number of connections/cores8

Electrical connection 1, used connections/cores8

Electrical connection 1, type of mountingPush-pull with interlock against unintentional pulling

Electrical connection 1, connection pattern00995653

Electrical connection 2, connector systemInsulation displacement connector

Operational voltage range DC50

Nominal operating voltage DC50

Current rating at 40° C1.75

Immunity to surge1.5

Shielding360° possible

Transmission characteristicsCategory 5 in accordance with ISO/IEC 11801, Category 5 according to TIA/EIA-568B

Protection against direct and indirect contactPELV

Cable fittingPg11 hex A/F 20

Cable diameter5.5, 10

Wire diameter1.6

Nominal cross section conductor0.25, 0.32

Conductor nominal cross sectionAWG22, AWG23

Note on connection cross-section0.25 - 0.32mm² for conductor 1-wire

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-40, 70

Storage temperature-40, 70

LABS (PWIS) conformityVDMA24364-A1-L

Note on materialsRoHS compliant

Fire testUL94 V-0

Pollution degree2

Corrosion resistance class CRC1 - Low corrosion stress

Material housingNickel-plated die-cast zinc

Housing colourSilver

Material sealsNBR, TPE-V

Material electrical contactNickel-plated and gold-plated copper alloy

Permissible insulating sheathPP, PUR, PVC
