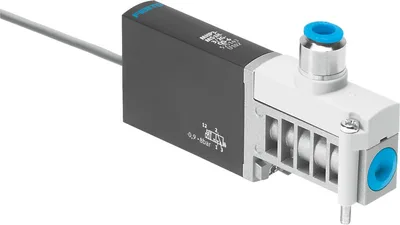

Festo MHP3-MS1H-3/2G-QS-6-K

Photo may not represent actual item. Refer to name and product specs for all details.

Festo MHP3-MS1H-3/2G-QS-6-K

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

FestoMFR # MHP3-MS1H-3/2G-QS-6-KSKU # CEY-937FC78213EC
Valve function3/2-way, single solenoid, closed
Type of actuationElectrical
Construction width14
pneumatic working portQS-6
Operating voltage24 V DC
Operating pressure-0.09, 0.8
Share
Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

Festo MHP3-MS1H-3/2G-QS-6-K

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed
Type of actuationElectrical
Construction width14
Standard nominal flow rate (standardised to DIN 1343)200
pneumatic working portQS-6
Operating voltage24 V DC
Operating pressure-0.09, 0.8
Operating pressure-0.9, 8
Operating pressure-13.05, 116
DesignPressure relief poppet valve
Type of resetMechanical spring
Degree of protectionIP65
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Nominal size3
Grid dimension19
Note on grid dimensionMinimum distance between the valves is 5 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideNon-detenting
Type of pilotingDirect
Flow directionReversible with restrictions
Symbol00991308
lapUnderlap
Reverse polarity protectionBipolar
Additional functionsSpark arresting, Holding current reduction, Protective circuit
Operating pressure, reversible-0.09, 0.1
Operating pressure, reversible-0.9, 1
Operating pressure, reversible-13.05, 14.5
Max. switching frequency280
Switching time off2.8
Switching time on2.3
Tolerance switching time off+10 %/-50 %
Tolerance switching time on+10%/-30%
Switching time dispersion from 1 Hz0.2
Duty cycle100%
Characteristic coil data24 V DC: low-current phase 1.6 W, high-current phase 6.5 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Restrictions for environmental and media temperatureAs a function of switching frequency (see graph)
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Media temperature-5, 40
Ambient temperature-5, 40
Product weight120
Electrical connectionCable
Cable length2.5
Type of mountingOn PR rail
Pneumatic connection, port 1Sub-base
Pneumatic connection, port 2QS-6
Pneumatic connection, port 3Sub-base
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingDie-cast zinc, coated
Material cable sheathPUR
Material screwsGalvanised steel
