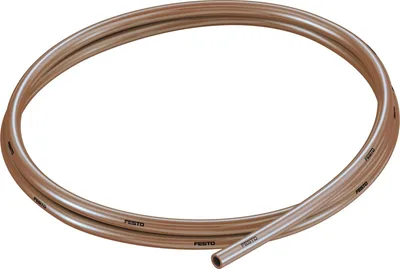

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO PUN-V0-6X1-BR

Plastic tubing. Polyurethane. Flame retardant to UL 94 V0 ... V2. For use in the immediate vicinity of welding applications. High resistance to microbes and hydrolysis. Suitable for use with energy chains. Operating medium: compressed air, vacuum, water

FESTOMFR # PUN-V0-6X1-BRSKU # CEY-937FC782106D

Outside diameter6

Flow-relevant bending radius26.5

Inside diameter4

Min. bending radius12

Tubing characteristicsSuitable for energy chains

Temperature-dependent operating pressure-0.095, 1

Have questions?Chat on WhatsApp

About This Product

FESTO PUN-V0-6X1-BR

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter6

Flow-relevant bending radius26.5

Inside diameter4

Min. bending radius12

Tubing characteristicsSuitable for energy chains

Operating pressure complete temperature range-0.095, 0.7

Operating pressure complete temperature range-0.95, 7

Operating pressure complete temperature range-13.775, 101.5

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

ApprovalGerman Technical Control Board (TÜV)

Certificate issuing authorityB 013277 0527 00

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Fire test materialUL94 V-0 (3mm), UL94 V-2 (0.75mm)

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-35, 60

Note on ambient temperatureFor unpressurised use up to 90 °C

Product weight according to length0.02

Pneumatic connectionFor push-in connector O.D. 6 mm, For barbed fitting I.D. 4 mm with union nut, For barbed fitting I.D. 4 mm

ColourBrown

Note to colourDeviates from the standard colour due to flame protection

Shore hardnessD 54 +/-3

Note on materialsRoHS compliant

Material tubingTPE-U(PU)

Accessories 5

Genuine accessories that can be used with the FESTO PUN-V0-6X1-BR motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NPQH-L-M7-Q6-P10	Push-in L-fitting · Fittings
NPQH-D-M7-Q6-P10	Push-in fitting · Fittings
NPQM-DK-M7-Q6-P10	Push-in fitting · Fittings
PKB-50-BL	Spiral wrap for tubing · General accessories
ZRS	Pipe and tubing cutter · General accessories
