How can I get a price quote for Festo PAN-V0-6X1-GN?

You can request a fast quote for Festo PAN-V0-6X1-GN from Yılsa Engineering. Reference part number YLSGB7IGJWPGN8J. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo PAN-V0-6X1-GN in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo PAN-V0-6X1-GN genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo PAN-V0-6X1-GN?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

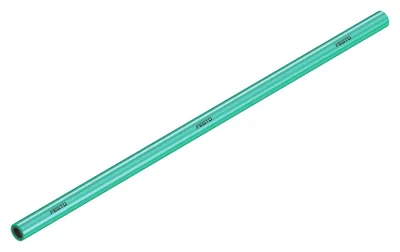

Festo PAN-V0-6X1-GN

Plastic tubing. Polyvinyl chloride, polyamide. Flame retardant according to UL 94 V0. High resistance to microbes and UV radiation. Double-sheath tubing. Operating medium: compressed air, vacuum, water, mineral oil. Resistant to welding spatter

FestoMFR # PAN-V0-6X1-GNSKU # YLSGB7IGJWPGN8J

Outside diameter8

Outside diameter for push-in fitting6

Flow-relevant bending radius30

Inside diameter4

Min. bending radius13

Tubing characteristicsSuitable for energy chains

Have questions?Chat on WhatsApp

About This Product

Festo PAN-V0-6X1-GN

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter8

Outside diameter for push-in fitting6

Flow-relevant bending radius30

Inside diameter4

Min. bending radius13

Tubing characteristicsSuitable for energy chains

Operating pressure complete temperature range-0.095, 0.3

Operating pressure complete temperature range-0.95, 3

Operating pressure complete temperature range-13.775, 43.5

Temperature-dependent operating pressure-0.095, 1.2

Temperature-dependent operating pressure-0.95, 12

Temperature-dependent operating pressure-13.775, 174

Note on operating pressureMineral oil: max. 0.3 MPa at max. 90 °C, Water: max. 0.3 MPa at max. 90 °C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Mineral oil, Water (liquid, ice-free)

Fire test materialUL94 V-0 (casing)

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-30, 90

Product weight according to length0.049

Pneumatic connectionFor push-in connector O.D. 6 mm

ColourGreen

Shore hardnessA 72 +/-4, D 57 +/-3

Note on materialsRoHS compliant

Material tubingPA12-P, PVC-P

Accessories 4

Genuine accessories that can be used with the Festo PAN-V0-6X1-GN motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-V0-1/8-6	Push-in fitting · Fittings
QSL-V0-1/8-6	Push-in L-fitting · Fittings
PKB-50-BL	Spiral wrap for tubing · General accessories
ZRS	Pipe and tubing cutter · General accessories
