How can I get a price quote for Festo PUN-H-F-6X1-TBL?

You can request a fast quote for Festo PUN-H-F-6X1-TBL from Yılsa Engineering. Reference part number YLSOCDN8DCGSPEM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo PUN-H-F-6X1-TBL in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo PUN-H-F-6X1-TBL genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo PUN-H-F-6X1-TBL?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

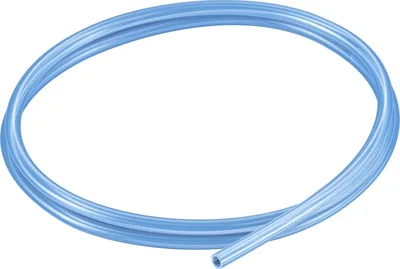

Festo PUN-H-F-6X1-TBL

Plastic tubing. Polyurethane. High resistance to microbes and hydrolysis. For food safety certificates, see www.festo.com/certificates/PUN_H_F. Operating medium: compressed air, vacuum, water

FestoMFR # PUN-H-F-6X1-TBLSKU # YLSOCDN8DCGSPEM

Outside diameter6

Flow-relevant bending radius26

Inside diameter4

Min. bending radius10

Symbol00997424

Tubing characteristicsSuitable for energy chains

Have questions?Chat on WhatsApp

About This Product

Plastic tubing. Polyurethane. High resistance to microbes and hydrolysis. For food safety certificates, see www.festo.com/certificates/PUN_H_F. Operating medium: compressed air, vacuum, water

Festo PUN-H-F-6X1-TBL

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter6

Flow-relevant bending radius26

Inside diameter4

Min. bending radius10

Instructions on useTubing without printing, TPE-U, ether-based

Symbol00997424

Tubing characteristicsSuitable for energy chains

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Fire test materialUL94 HB

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Suitable for use with foodSee declaration of conformity

Ambient temperature-35, 60

Product weight according to length0.0181

Pneumatic connectionFor push-in connector O.D. 6 mm, For barbed fitting I.D. 4 mm with union nut

ColourTranslucent blue

Shore hardnessD 52 +/-3

Note on materialsRoHS compliant

Material tubingTPE-U(PU)

Accessories 4

Genuine accessories that can be used with the Festo PUN-H-F-6X1-TBL motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KK-4	Multi-tube holder · General accessories
PKB-50-BL	Spiral wrap for tubing · General accessories
PKS-4	Tubing support · General accessories
ZRS	Pipe and tubing cutter · General accessories
