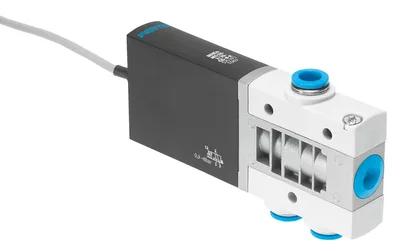

Festo MHE4-MS1H-3/2O-QS-8-K
Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves
Valve function3/2-way, single solenoid, open
Type of actuationElectrical
Construction width18
pneumatic working portQS-8
Operating voltage24 V DC
Operating pressure-0.09, 0.8
About This Product
Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves
Festo MHE4-MS1H-3/2O-QS-8-K
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function3/2-way, single solenoid, open
Type of actuationElectrical
Construction width18
Standard nominal flow rate (standardised to DIN 1343)400
pneumatic working portQS-8
Operating voltage24 V DC
Operating pressure-0.09, 0.8
Operating pressure-0.9, 8
Operating pressure-13.05, 116
DesignPressure relief poppet valve
Type of resetMechanical spring
Degree of protectionIP65
ApprovalRCM, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Nominal size4
Grid dimension24
Note on grid dimensionMinimum distance between the valves is 6 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideNon-detenting
Type of pilotingDirect
Flow directionReversible with restrictions
Symbol00991322
lapUnderlap
Reverse polarity protectionBipolar
Additional functionsSpark arresting, Holding current reduction, Protective circuit
Operating pressure, reversible-0.09, 0.1
Operating pressure, reversible-0.9, 1
Operating pressure, reversible-13.05, 14.5
Max. switching frequency210
Switching time off3.5
Switching time on3.5
Tolerance switching time off+10 %/-40 %
Tolerance switching time on+10%/-30%
Switching time dispersion from 1 Hz0.3
Duty cycle100%
Characteristic coil data24 V DC: low-current phase 2.125 W, high-current phase 8.5 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Media temperature-5, 60
Ambient temperature-5, 60
Product weight270
Electrical connectionCable
Cable length2.5
Type of mountingWith through-hole
Pneumatic connection, port 11QS-8
Pneumatic connection, port 2QS-8
Pneumatic port 33QS-8
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingDie-cast zinc, coated
Material cable sheathPUR
Material screwsGalvanised steel
Accessories 89
Genuine accessories that can be used with the Festo MHE4-MS1H-3/2O-QS-8-K motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| PUN-CM-8-SW | Plastic tubing · Tubing | |
| PAN-V0-8X1-BL | Plastic tubing · Tubing | |
| PUN-8X1,25-SI | Plastic tubing · Tubing | |
| PAN-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-8X1,25-SW | Plastic tubing · Tubing | |
| PAN-V0-8X1-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-GN | Plastic tubing · Tubing | |
| PLN-8X1,25-NT | Plastic tubing · Tubing | |
| PLN-8X1,25-SW | Plastic tubing · Tubing | |
| MHE2-BG-L | Mounting bracket · Mounting accessories | |
| PFAN-8X1,25-NT | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-WS | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-BR | Plastic tubing · Tubing | |
| PAN-V0-8X1-GN | Plastic tubing · Tubing | |
| PAN-V0-8X1-RT | Plastic tubing · Tubing | |
| PAN-V0-8X1-WS | Plastic tubing · Tubing | |
| PAN-V0-8X1-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PAN-R-8X1,5-SI | Heavy-duty tubing · Tubing | |
| PEN-8X1,25-SW | Plastic tubing · Tubing | |
| PEN-8X1,25-NT | Plastic tubing · Tubing | |
| PAN-8X1,25-NT | Plastic tubing · Tubing | |
| PEN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL | Plastic tubing · Tubing | |
| PEN-8X1,25-SI | Plastic tubing · Tubing | |
| PEN-8X1,25-GN | Plastic tubing · Tubing | |
| PEN-8X1,25-RT | Plastic tubing · Tubing | |
| PEN-8X1,25-GE | Plastic tubing · Tubing | |
| PAN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL | Plastic tubing · Tubing | |
| PAN-8X1,25-SW | Plastic tubing · Tubing | |
| PAN-8X1,25-GN | Plastic tubing · Tubing | |
| PAN-8X1,25-RT | Plastic tubing · Tubing | |
| PAN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PLN-8X1,25-BL | Plastic tubing · Tubing | |
| PLN-8X1,25-SI | Plastic tubing · Tubing | |
| PLN-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-H-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-V0-8X2-SW-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-BL-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-GN-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-RT-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-WS-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-GE-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-BR-C | Plastic tubing · Tubing | |
| PAN-MF-8X1-SW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE-400 | Plastic tubing · Tubing | |
| PTFEN-8X1-NT | Plastic tubing · Tubing | |
| PTFEN-8X1-NT-400 | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-NT | Plastic tubing · Tubing |
