Festo MHE4-M1H-3/2G-QS-8

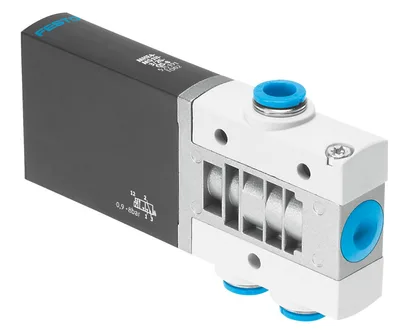

Photo may not represent actual item. Refer to name and product specs for all details.

Festo MHE4-M1H-3/2G-QS-8

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

FestoMFR # MHE4-M1H-3/2G-QS-8SKU # CEY-937FC78213D0
Valve function3/2-way, single solenoid, closed
Type of actuationElectrical
Construction width18
pneumatic working portQS-8
Operating voltage24 V DC
Operating pressure-0.09, 0.8
Share
Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

Festo MHE4-M1H-3/2G-QS-8

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed
Type of actuationElectrical
Construction width18
Standard nominal flow rate (standardised to DIN 1343)400
pneumatic working portQS-8
Operating voltage24 V DC
Operating pressure-0.09, 0.8
Operating pressure-0.9, 8
Operating pressure-13.05, 116
DesignPressure relief poppet valve
Type of resetMechanical spring
Degree of protectionIP65
Approvalc UL us - Recognised (Oil)
Nominal size4
Grid dimension24
Note on grid dimensionMinimum distance between the valves is 6 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideNon-detenting
Type of pilotingDirect
Flow directionReversible with restrictions
Symbol00991308
lapUnderlap
Operating pressure, reversible-0.09, 0.1
Operating pressure, reversible-0.9, 1
Operating pressure, reversible-13.05, 14.5
Max. switching frequency120
Switching time off5
Switching time on10.5
Duty cycle100%
Characteristic coil data24 V DC: 5.6 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Media temperature-5, 60
Ambient temperature-5, 60
Product weight270
Electrical connection2-pin, Plug
Type of mountingWith through-hole
Pneumatic connection, port 1QS-8
Pneumatic connection, port 2QS-8
Pneumatic connection, port 3QS-8
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingDie-cast zinc, coated
Material screwsGalvanised steel

Accessories 95

Genuine accessories that can be used with the Festo MHE4-M1H-3/2G-QS-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
KMEB-1-24-2.5-LEDPlug socket with cable · Electrical accessories
PUN-H-8X1,25-NTPlastic tubing · Tubes
PUN-H-8X1,25-BLPlastic tubing · Tubes
PUN-H-8X1,25-SWPlastic tubing · Tubes
PUN-H-8X1,25-TBLPlastic tubing · Tubes
PUN-CM-8-SWPlastic tubing · Tubing
PAN-V0-8X1-BLPlastic tubing · Tubing
KMEB-1-24-5-LEDPlug socket with cable · Electrical accessories
PUN-8X1,25-SIPlastic tubing · Tubing
PAN-8X1,25-SIPlastic tubing · Tubing
PUN-8X1,25-BLPlastic tubing · Tubing
PUN-8X1,25-SWPlastic tubing · Tubing
PAN-V0-8X1-SWPlastic tubing · Tubing
KMEB-2-24-2,5-LEDPlug socket with cable · Electrical accessories
KMEB-2-24-5-LEDPlug socket with cable · Electrical accessories
KMEB-2-24-M12-0,5-LEDPlug socket with cable · Electrical accessories
PUN-8X1,25-RTPlastic tubing · Tubing
PUN-8X1,25-GEPlastic tubing · Tubing
PUN-8X1,25-GNPlastic tubing · Tubing
PLN-8X1,25-NTPlastic tubing · Tubing
KMEB-1-24-10-LEDPlug socket with cable · Electrical accessories
PLN-8X1,25-SWPlastic tubing · Tubing
MHE2-BG-LMounting bracket · Mounting accessories
PFAN-8X1,25-NTPlastic tubing · Tubing
PUN-V0-8X1,25-SWPlastic tubing · Tubing
PUN-V0-8X1,25-BLPlastic tubing · Tubing
PUN-V0-8X1,25-GNPlastic tubing · Tubing
PUN-V0-8X1,25-RTPlastic tubing · Tubing
PUN-V0-8X1,25-WSPlastic tubing · Tubing
PUN-V0-8X1,25-GEPlastic tubing · Tubing
PUN-V0-8X1,25-BRPlastic tubing · Tubing
PAN-V0-8X1-GNPlastic tubing · Tubing
PAN-V0-8X1-RTPlastic tubing · Tubing
PAN-V0-8X1-WSPlastic tubing · Tubing
PAN-V0-8X1-GEPlastic tubing · Tubing
PUN-8X1,25-SI-400Plastic tubing · Tubing
PUN-8X1,25-BL-400Plastic tubing · Tubing
PAN-R-8X1,5-SIHeavy-duty tubing · Tubing
PEN-8X1,25-SWPlastic tubing · Tubing
PEN-8X1,25-NTPlastic tubing · Tubing
PAN-8X1,25-NTPlastic tubing · Tubing
PEN-8X1,25-SW-400Plastic tubing · Tubing
PEN-8X1,25-BL-400Plastic tubing · Tubing
PEN-8X1,25-SI-400Plastic tubing · Tubing
PEN-8X1,25-BLPlastic tubing · Tubing
PEN-8X1,25-SIPlastic tubing · Tubing
PEN-8X1,25-GNPlastic tubing · Tubing
PEN-8X1,25-RTPlastic tubing · Tubing
PEN-8X1,25-GEPlastic tubing · Tubing
PAN-8X1,25-SI-400Plastic tubing · Tubing
PAN-8X1,25-BL-400Plastic tubing · Tubing
PAN-8X1,25-SW-400Plastic tubing · Tubing
PAN-8X1,25-BLPlastic tubing · Tubing
PAN-8X1,25-SWPlastic tubing · Tubing
PAN-8X1,25-GNPlastic tubing · Tubing
PAN-8X1,25-RTPlastic tubing · Tubing
PAN-8X1,25-GEPlastic tubing · Tubing
PUN-8X1,25-SW-400Plastic tubing · Tubing
PLN-8X1,25-BLPlastic tubing · Tubing
PLN-8X1,25-SIPlastic tubing · Tubing
PLN-8X1,25-RTPlastic tubing · Tubing
PUN-H-8X1,25-SW-400Plastic tubing · Tubing
PUN-H-8X1,25-BL-400Plastic tubing · Tubing
PUN-H-8X1,25-NT-400Plastic tubing · Tubing
PUN-H-8X1,25-SI-400Plastic tubing · Tubing
PUN-H-8X1,25-SIPlastic tubing · Tubing
PUN-H-8X1,25-RTPlastic tubing · Tubing
PUN-H-8X1,25-GNPlastic tubing · Tubing
PUN-H-8X1,25-GEPlastic tubing · Tubing
PUN-V0-8X2-SW-CPlastic tubing · Tubing
PUN-V0-8X2-BL-CPlastic tubing · Tubing
PUN-V0-8X2-GN-CPlastic tubing · Tubing
PUN-V0-8X2-RT-CPlastic tubing · Tubing
PUN-V0-8X2-WS-CPlastic tubing · Tubing
PUN-V0-8X2-GE-CPlastic tubing · Tubing
PUN-V0-8X2-BR-CPlastic tubing · Tubing
PAN-MF-8X1-SWPlastic tubing · Tubing
PUN-H-8X1,25-TBL-400Plastic tubing · Tubing
PUN-H-8X1,25-TSWPlastic tubing · Tubing
PUN-H-8X1,25-TSW-400Plastic tubing · Tubing
PUN-H-8X1,25-TRTPlastic tubing · Tubing
PUN-H-8X1,25-TRT-400Plastic tubing · Tubing
PUN-H-8X1,25-TGNPlastic tubing · Tubing
PUN-H-8X1,25-TGN-400Plastic tubing · Tubing
PUN-H-8X1,25-TGEPlastic tubing · Tubing
PUN-H-8X1,25-TGE-400Plastic tubing · Tubing
PTFEN-8X1-NTPlastic tubing · Tubing
PTFEN-8X1-NT-400Plastic tubing · Tubing
PUN-H-F-8X1,25-RTPlastic tubing · Tubing
PUN-H-F-8X1,25-BLPlastic tubing · Tubing
PUN-H-F-8X1,25-TBLPlastic tubing · Tubing
PUN-H-F-8X1,25-GNPlastic tubing · Tubing
PUN-H-F-8X1,25-GEPlastic tubing · Tubing
PUN-H-F-8X1,25-SWPlastic tubing · Tubing
PUN-H-F-8X1,25-NTPlastic tubing · Tubing
