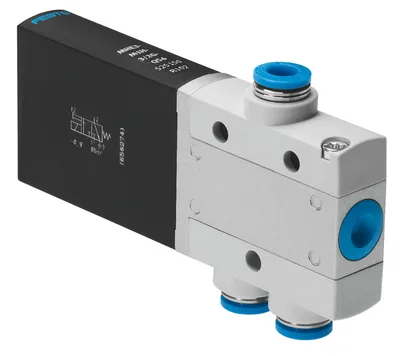

Festo MHE3-M1H-3/2O-QS-6
Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves
Valve function3/2-way, single solenoid, open
Type of actuationElectrical
Construction width14
pneumatic working portQS-6
Operating voltage24 V DC
Operating pressure-0.09, 0.8
About This Product
Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves
Festo MHE3-M1H-3/2O-QS-6
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function3/2-way, single solenoid, open
Type of actuationElectrical
Construction width14
Standard nominal flow rate (standardised to DIN 1343)200
pneumatic working portQS-6
Operating voltage24 V DC
Operating pressure-0.09, 0.8
Operating pressure-0.9, 8
Operating pressure-13.05, 116
DesignPressure relief poppet valve
Type of resetMechanical spring
Degree of protectionIP65
Approvalc UL us - Recognised (Oil)
Nominal size3
Grid dimension19
Note on grid dimensionMinimum distance between the valves is 5 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideNon-detenting
Type of pilotingDirect
Flow directionReversible with restrictions
Symbol00991322
lapUnderlap
Operating pressure, reversible-0.09, 0.1
Operating pressure, reversible-0.9, 1
Operating pressure, reversible-13.05, 14.5
Max. switching frequency130
Switching time off4.5
Switching time on8.3
Duty cycle100%
Characteristic coil data24 V DC: 3.7 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Media temperature-5, 60
Ambient temperature-5, 60
Product weight120
Electrical connection2-pin, Plug
Type of mountingWith through-hole
Pneumatic connection, port 11QS-6
Pneumatic connection, port 2QS-6
Pneumatic port 33QS-6
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingDie-cast zinc, coated
Material screwsGalvanised steel
Accessories 98
Genuine accessories that can be used with the Festo MHE3-M1H-3/2O-QS-6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PUN-H-6X1-NT | Plastic tubing · Tubes | |
| PUN-H-6X1-BL | Plastic tubing · Tubes | |
| PUN-H-6X1-SW | Plastic tubing · Tubes | |
| PUN-H-6X1-TBL | Plastic tubing · Tubes | |
| NEBV-Z4WA2L-P-E-2.5-N-LE2-S1 | Connecting cable · Connecting cables | |
| NEBV-Z4WA2L-P-E-2.5-N-M8G3-S1 | Connecting cable · Connecting cables | |
| PAN-V0-6X1-BL | Plastic tubing · Tubing | |
| PUN-6X1-SI | Plastic tubing · Tubing | |
| PAN-6X1-SI | Plastic tubing · Tubing | |
| PUN-6X1-BL | Plastic tubing · Tubing | |
| PUN-6X1-SW | Plastic tubing · Tubing | |
| PAN-V0-6X1-SW | Plastic tubing · Tubing | |
| PUN-6X1-RT | Plastic tubing · Tubing | |
| PUN-6X1-GE | Plastic tubing · Tubing | |
| PUN-6X1-GN | Plastic tubing · Tubing | |
| PUN-CM-6-SW | Plastic tubing · Tubing | |
| PLN-6X1-NT | Plastic tubing · Tubing | |
| KMYZ-4-24-0,5-B | Plug socket with cable · Electrical accessories | |
| KMYZ-4-24-2,5-B | Plug socket with cable · Electrical accessories | |
| PLN-6X1-SW | Plastic tubing · Tubing | |
| MHE2-BG-L | Mounting bracket · Mounting accessories | |
| PFAN-6X1-NT | Plastic tubing · Tubing | |
| PUN-V0-6X1-SW | Plastic tubing · Tubing | |
| PUN-V0-6X1-BL | Plastic tubing · Tubing | |
| PUN-V0-6X1-GN | Plastic tubing · Tubing | |
| PUN-V0-6X1-RT | Plastic tubing · Tubing | |
| PUN-V0-6X1-WS | Plastic tubing · Tubing | |
| PUN-V0-6X1-GE | Plastic tubing · Tubing | |
| PUN-V0-6X1-BR | Plastic tubing · Tubing | |
| PAN-V0-6X1-GN | Plastic tubing · Tubing | |
| PAN-V0-6X1-RT | Plastic tubing · Tubing | |
| PAN-V0-6X1-WS | Plastic tubing · Tubing | |
| PAN-V0-6X1-GE | Plastic tubing · Tubing | |
| PUN-6X1-SI-500 | Plastic tubing · Tubing | |
| PUN-6X1-BL-500 | Plastic tubing · Tubing | |
| PAN-R-6X1,1-SI | Heavy-duty tubing · Tubing | |
| PEN-6X1-SW | Plastic tubing · Tubing | |
| PEN-6X1-NT | Plastic tubing · Tubing | |
| PAN-6X1-NT | Plastic tubing · Tubing | |
| PEN-6X1-SW-500 | Plastic tubing · Tubing | |
| PEN-6X1-BL-500 | Plastic tubing · Tubing | |
| PEN-6X1-SI-500 | Plastic tubing · Tubing | |
| PEN-6X1-BL | Plastic tubing · Tubing | |
| PEN-6X1-SI | Plastic tubing · Tubing | |
| PEN-6X1-GN | Plastic tubing · Tubing | |
| PEN-6X1-RT | Plastic tubing · Tubing | |
| PEN-6X1-GE | Plastic tubing · Tubing | |
| PAN-6X1-SI-500 | Plastic tubing · Tubing | |
| PAN-6X1-BL-500 | Plastic tubing · Tubing | |
| PAN-6X1-SW-500 | Plastic tubing · Tubing | |
| PAN-6X1-BL | Plastic tubing · Tubing | |
| PAN-6X1-SW | Plastic tubing · Tubing | |
| PAN-6X1-GN | Plastic tubing · Tubing | |
| PAN-6X1-RT | Plastic tubing · Tubing | |
| PAN-6X1-GE | Plastic tubing · Tubing | |
| PUN-6X1-SW-500 | Plastic tubing · Tubing | |
| PLN-6X1-BL | Plastic tubing · Tubing | |
| PLN-6X1-SI | Plastic tubing · Tubing | |
| PLN-6X1-RT | Plastic tubing · Tubing | |
| PUN-H-6X1-SW-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-BL-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-NT-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-SI-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-SI | Plastic tubing · Tubing | |
| PUN-H-6X1-RT | Plastic tubing · Tubing | |
| PUN-H-6X1-GN | Plastic tubing · Tubing | |
| PUN-H-6X1-GE | Plastic tubing · Tubing | |
| PUN-V0-6X2-SW-C | Plastic tubing · Tubing | |
| PUN-V0-6X2-BL-C | Plastic tubing · Tubing | |
| PUN-V0-6X2-GN-C | Plastic tubing · Tubing | |
| PUN-V0-6X2-RT-C | Plastic tubing · Tubing | |
| PUN-V0-6X2-WS-C | Plastic tubing · Tubing | |
| PUN-V0-6X2-GE-C | Plastic tubing · Tubing | |
| PUN-V0-6X2-BR-C | Plastic tubing · Tubing | |
| PAN-MF-6X1-SW | Plastic tubing · Tubing | |
| PAN-MF-6X1-SW-500 | Plastic tubing · Tubing | |
| NEDY- | Distributor · Electrical accessories | |
| NEBV-Z4WA2L-P-E-10-N-LE2-S1 | Connecting cable · Connecting cables | |
| NEBV-Z4WA2L-P-E-5-N-LE2-S1 | Connecting cable · Connecting cables | |
| NEBV-Z4WA2L-P-E-0.5-N-M8G3-S1 | Connecting cable · Connecting cables | |
| PUN-H-6X1-TBL-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TSW | Plastic tubing · Tubing | |
| PUN-H-6X1-TSW-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TRT | Plastic tubing · Tubing | |
| PUN-H-6X1-TRT-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TGN | Plastic tubing · Tubing | |
| PUN-H-6X1-TGN-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TGE | Plastic tubing · Tubing | |
| PUN-H-6X1-TGE-500 | Plastic tubing · Tubing | |
| PTFEN-6X1-NT-100 | Plastic tubing · Tubing | |
| PTFEN-6X1-NT-500 | Plastic tubing · Tubing | |
| PUN-H-F-6X1-RT | Plastic tubing · Tubing | |
| PUN-H-F-6X1-BL | Plastic tubing · Tubing | |
| PUN-H-F-6X1-TBL | Plastic tubing · Tubing | |
| PUN-H-F-6X1-GN | Plastic tubing · Tubing | |
| PUN-H-F-6X1-GE | Plastic tubing · Tubing | |
| PUN-H-F-6X1-SW | Plastic tubing · Tubing | |
| PUN-H-F-6X1-NT | Plastic tubing · Tubing |
