Festo
YXCF-1
MFR #YXCF-1
SKU #YLSBOLBVXXHTEQR
Photo may not represent actual item. Refer to name and product specs for all details.

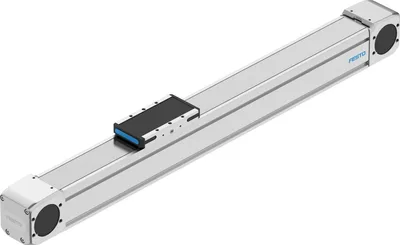

Festo ELGD-TB-KF-60- -
Toothed belt axis. For applications requiring a high dynamic response and short positioning times. For long strokes. Excellent rigidity and load capacity of the guide for greater load in the same installation space. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Effective diameter of drive pinion31.51
Working stroke50, 8500
Size60
Stroke reserve0
Toothed-belt pitch3
Mounting positionAny
About This Product
Toothed belt axis. For applications requiring a high dynamic response and short positioning times. For long strokes. Excellent rigidity and load capacity of the guide for greater load in the same installation space. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Festo ELGD-TB-KF-60- -
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Effective diameter of drive pinion31.51
Working stroke50, 8500
Size60
Stroke reserve0
Toothed-belt pitch3
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith toothed belt
Type of motorStepper motor, Servo motor
Symbol00991212
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Max. acceleration50, 100
Max. speed3, 10
Repetition accuracy±0.04 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), Class 6 according to ISO 14644-1
Storage temperature-20, 60
Suitable for use with foodSee supplementary material information
Degree of protectionIP40
Ambient temperature0, 60
Impact energy in end positions1.25E-4
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy485200
2nd moment of area Iz730600
Max. drive torque5.5
Max. force Fy2200, 4400
Max. force Fz2200, 4400
Max. force Fy total axis1945, 3890
Max. force Fz total axis2000, 3600
Fy at theoretical life value of 100 km (only guide consideration)9208, 18415
Fz at theoretical life value of 100 km (only guide consideration)9208, 18415
Max. idle running transfer resistance29.8
Max. moment Mx38, 75
Max. moment My15, 150
Max. moment Mz15, 140
Max. moment Mx total axis41, 85
Max. moment My total axis36, 128
Max. moment Mz total axis36, 133
Mx at theoretical life value of 100 km (only guide consideration)157, 314
My at theoretical life value of 100 km (only guide consideration)60, 500
Mz at theoretical life value of 100 km (only guide consideration)60, 500
Distance between slide surface and guide centre49
Max. feed force Fx350
Frictional torque independent of load0.5
Torsional mass moment of inertia It192900
Mass moment of inertia JH per metre of stroke0.3128
Mass moment of inertia JL per kg of working load2.4822
Mass moment of inertia JO2.1016, 2.6749
Feed constant99
Reference service life5000
Maintenance intervalLifetime lubrication
Moving mass443, 718
Product weight2731, 44559
Basic weight for 0 mm stroke2486, 2909
Additional weight per 10 mm stroke49
Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorN48
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material pulleysHigh-alloy stainless steel
Material slideWrought aluminium alloy
Material toothed beltPolyurethane with steel cord
Accessories 111
Genuine accessories that can be used with the Festo ELGD-TB-KF-60- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| EMGA-60-P-G3-SST-57 | Gear unit · Gear unit | |
| EMGA-60-P-G5-SST-57 | Gear unit · Gear unit | |
| EMGA-60-P-G3-EAS-60 | Gear unit · Gear unit | |
| EMGA-60-P-G5-EAS-60 | Gear unit · Gear unit | |
| SMBK-8 | Clip · Mounting accessories | |
| ABP-5-S1 | Slot cover · Mounting accessories | |
| EAHF-E24-60-P-S | Profile mounting · Mounting accessories | |
| EAHF-E24-60-P-D4 | Profile mounting · Mounting accessories | |
| EAHF-E24-60-P-D5 | Profile mounting · Mounting accessories | |
| EAHF-E24-60-P | Profile mounting · Mounting accessories | |
| SIES-8M-PO-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-PO-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| SIES-8M-NO-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-NO-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| EAPM-E24-60-SLS | Switch lug · Position sensing | |
| EAMM-A-N48-80P | Axial kit · Mounting accessories | |
| EAMM-A-N48-60P | Axial kit · Mounting accessories | |
| EAMM-A-N48-100A-G2 | Axial kit · Mounting accessories | |
| EAMM-A-N48-87A | Axial kit · Mounting accessories | |
| SIEN-M8B-NS-K-L | Proximity sensor · Position sensing | |
| SIEN-M8B-NS-S-L | Proximity sensor · Position sensing | |
| SIEN-M8B-PS-K-L | Proximity sensor · Position sensing | |
| SIEN-M8B-PS-S-L | Proximity sensor · Position sensing | |
| SIEN-M8B-NO-K-L | Proximity sensor · Position sensing | |
| SIEN-M8B-NO-S-L | Proximity sensor · Position sensing | |
| SIEN-M8B-PO-K-L | Proximity sensor · Position sensing | |
| SIEN-M8B-PO-S-L | Proximity sensor · Position sensing | |
| SIES-8M-PS-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-PS-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| SIES-8M-NS-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-NS-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| EMMT-AS-60- | Servo motor · Motors | |
| EMMT-AS-60-S-LS-RS | Servo motor · Motors | |
| EMMT-AS-60-S-LS-RM | Servo motor · Motors | |
| EMMT-AS-60-S-LS-RSB | Servo motor · Motors | |
| EMMT-AS-60-S-LS-RMB | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RS | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RM | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RSB | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RMB | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RS | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RM | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RSB | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RMB | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RS | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RM | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RSB | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RMB | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RS | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RM | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RSB | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RMB | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RS | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RM | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RSB | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RMB | Servo motor · Motors | |
| NEBA- | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-10-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-20-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-10-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3P-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3P-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3N-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3N-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-0.5-N-M12G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1-N-M12G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-M12G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-M12G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-0.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-10-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-0.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-1-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| EMMT-AS-60-S-LS-RMY | Servo motor · Motors | |
| EMMT-AS-60-S-LS-RMYB | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RMY | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RMYB | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RMY | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RMYB | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RMY | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RMYB | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RMY | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RMYB | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RMY | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RMYB | Servo motor · Motors | |
| EAPM-E24-60-SLE | Switch lug · Position sensing | |
| EAPM-E24-60-SHO | Sensor bracket · Position sensing | |
| EAPM-E24-60-SHE | Sensor bracket · Position sensing | |
| EAMM-A-N48-60H-G2 | Axial kit · Mounting accessories | |
| EAMM-A-N48-60G-G2 | Axial kit · Mounting accessories | |
| EAHF-E24-60-P-B4 | Profile mounting · Mounting accessories | |
| EAHF-E24-60-P-B2 | Profile mounting · Mounting accessories | |
| EAHM-E24-AP-60 | Mounting kit · Mounting accessories | |
| EMMT-ST-42-L-RS | Stepper motor · Motors | |
| EMMT-ST-57-M-RS | Stepper motor · Motors | |
| EAMM-A-N48-40G | Axial kit · Mounting accessories | |
| EAHF-E24-60-P-D6 | Profile mounting · Mounting accessories | |
| EMMT-AS-80- | Servo motor · Motors | |
| EMGA-40-P-G3-SST-42 | Gear unit · Gear unit | |
| EMGA-40-P-G5-SST-42 | Gear unit · Gear unit |
