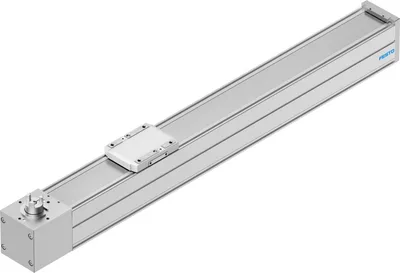

Festo ELGC-TB-KF-80-600

Photo may not represent actual item. Refer to name and product specs for all details.

Festo ELGC-TB-KF-80-600

Toothed belt axis. Precision guide rail with high load capacity. Internal guide and toothed belt. Flexible motor mounting. The toothed belt axes, spindle axes ELGC and mini slides EGSC form a scalable modular system for compact automation. Variants recommended for production systems for manufacturing lithium-ion batteries. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # ELGC-TB-KF-80-600SKU # YLSXHDEREBIXJ42
Effective diameter of drive pinion33.42
Working stroke600
Size80
Stroke reserve0
Toothed-belt pitch3
Mounting positionAny
Share
Have questions?Chat on WhatsApp

About This Product

Toothed belt axis. Precision guide rail with high load capacity. Internal guide and toothed belt. Flexible motor mounting. The toothed belt axes, spindle axes ELGC and mini slides EGSC form a scalable modular system for compact automation. Variants recommended for production systems for manufacturing lithium-ion batteries. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

Festo ELGC-TB-KF-80-600

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Effective diameter of drive pinion33.42
Working stroke600
Size80
Stroke reserve0
Toothed-belt pitch3
Mounting positionAny
GuideRecirculating ball bearing guide
DesignElectromechanical linear axis, With toothed belt
Type of motorStepper motor, Servo motor
Symbol00991212
Position detectionVia proximity switch, For inductive sensors
Max. acceleration15
Max. speed1.5
Repetition accuracy±0.1 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
Storage temperature-20, 60
Degree of protectionIP40
Ambient temperature0, 50
Impact energy in end positions7.5E-4
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy1370000
2nd moment of area Iz1660000
Max. drive torque4.178
Max. force Fy5543
Max. force Fz5543
Max. force Fy total axis900
Max. force Fz total axis2700
Fy at theoretical life value of 100 km (only guide consideration)20400
Fz at theoretical life value of 100 km (only guide consideration)20400
Max. idle running transfer resistance24.7
Max. moment Mx59.8
Max. moment My56.2
Max. moment Mz56.2
Max. moment Mx total axis59.8
Max. moment My total axis56.2
Max. moment Mz total axis56.2
Mx at theoretical life value of 100 km (only guide consideration)220
My at theoretical life value of 100 km (only guide consideration)207
Mz at theoretical life value of 100 km (only guide consideration)207
Distance between slide surface and guide centre72.5
Max. feed force Fx250
Frictional torque independent of load0.413
Torsional mass moment of inertia It90500
Mass moment of inertia JH per metre of stroke0.1927
Mass moment of inertia JL per kg of working load2.793
Mass moment of inertia JO2.912
Feed constant105
Reference service life5000
Maintenance intervalLifetime lubrication
Moving mass901
Weight of slide272
Product weight7870
Basic weight for 0 mm stroke3500
Additional weight per 10 mm stroke73
Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorT46
Material end capPainted die cast aluminium
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeStainless steel strip
Material drive coverPainted die cast aluminium
Material guide slideSteel
Material guide railSteel
Material pulleysHigh-alloy stainless steel
Material slideDie-cast aluminium
Material toothed beltPolychloroprene or nitrile rubber (NBR) with glass cord and nylon coating
