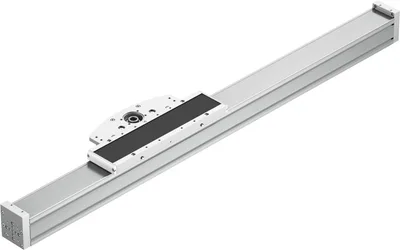

Festo ELCC-TB-KF-70- -

Photo may not represent actual item. Refer to name and product specs for all details.

Festo ELCC-TB-KF-70- -

Cantilever axis. Axis for high speeds and acceleration. Very low moving mass thanks to fixed drive head. High rigidity thanks to innovative design principle. Toothed belt drive with recirculating ball bearing guide. Able to move high loads of up to 100 kg vertically. Long strokes of up to 2 m possible. Sustainable thanks to extended life cycle and easier repairs. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # ELCC-TB-KF-70- -SKU # YLSGEQRTXYHSBO
Effective diameter of drive pinion30.558
Working stroke50, 1500
Size70
Stroke reserve0, 1500
Toothed-belt pitch3
Mounting positionAny
Share
Have questions?Chat on WhatsApp

About This Product

Cantilever axis. Axis for high speeds and acceleration. Very low moving mass thanks to fixed drive head. High rigidity thanks to innovative design principle. Toothed belt drive with recirculating ball bearing guide. Able to move high loads of up to 100 kg vertically. Long strokes of up to 2 m possible. Sustainable thanks to extended life cycle and easier repairs. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

Festo ELCC-TB-KF-70- -

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Effective diameter of drive pinion30.558
Working stroke50, 1500
Size70
Stroke reserve0, 1500
Toothed-belt pitch3
Mounting positionAny
GuideRecirculating ball bearing guide
DesignElectromechanical cantilever axis
Symbol00991210
Max. acceleration50
Max. speed5
Repetition accuracy±0.05 mm
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP20
Ambient temperature-10, 60
2nd moment of area Iy959740
2nd moment of area Iz928740
Max. drive torque10.4
Max. force Fy9680
Max. force Fz9406
Max. moment Mx104
Max. moment My826
Max. moment Mz797
Max. feed force Fx600
Mass moment of inertia JH per metre of stroke14.7
Mass moment of inertia JL per kg of working load2.3
Mass moment of inertia JO10.6
Feed constant96
Reference service life5000
Lubrication interval dependent on operating distance1000
Moving mass with 0 mm stroke with second drive head5516
Moving mass for 0 mm stroke3210
Additional moving mass per 10 mm stroke63
Weight of additional slide2010
Basic weight for 0 mm stroke7960
Additional weight per 10 mm stroke63
Basic weight for 0 mm stroke with 2nd drive head12275
Material end capAnodised wrought aluminium alloy
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material drive headAnodised wrought aluminium alloy
Material guide railRolled steel, Corrotect coated
Material housingHigh-alloy stainless steel
Material slideAnodised cast aluminium
Material toothed belt clamping pieceAnodised wrought aluminium alloy
Material toothed beltPolychloroprene with glass filament and nylon coating, PUR with steel cord and fabric sheathing, Polyurethane with steel cord

Accessories 132

Genuine accessories that can be used with the Festo ELCC-TB-KF-70- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
NST-5-M5-1Slot nut · Mounting accessories
SIEN-M8B-NO-K-LProximity sensor · Position sensing
SIEN-M8B-PO-K-LProximity sensor · Position sensing
NEBM-M12G8-E-5-S1G9-V3Encoder cable · Connecting cables
NEBM-M12G8-E-10-S1G9-V3Encoder cable · Connecting cables
DASI-E21-70-S8-SLSwitch lug · Position sensing
DASI-E21-70-S8-SRSensor bracket · Position sensing
NEBM-M12G8-E-15-S1G9-V3Encoder cable · Connecting cables
EMMT-AS-80-Servo motor · Motors
EMMT-AS-100-Servo motor · Motors
NEFM-S1G9-K-0,5-R3G8Adapter · Connecting cables
SIEN-M8B-NO-S-LProximity sensor · Position sensing
SIEN-M8B-PO-S-LProximity sensor · Position sensing
NEBA-M8G3-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3Connecting cable · Connecting cables
SIEN-M8B-NS-K-LProximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-NS-S-LProximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-K-LProximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-S-LProximity sensor · Cylinder sensors for direct mounting
ABP-5Slot cover · Mounting accessories
EMGA-80-P-G3-SAS-100Gear unit · Mounting accessories
EMGA-80-P-G5-SAS-100Gear unit · Mounting accessories
EAMD-42-40-19-16X25Coupling · Mounting accessories
EAMB-24-6-15X21-16X20Drive shaft adapter · Mounting accessories
KSK-80-Connecting shaft · Mounting accessories
EMMT-AS-80-H-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-H-HS-RSServo motor · Electrical accessories
EAMF-A-48C-80GMotor flange · Mounting accessories
EAMK-A-N48-48CCoupling housing · Mounting accessories
EAMD-32-32-14-16X20Coupling · Mounting accessories
EAMF-A-48C-60G/HMotor flange · Mounting accessories
NEBM-M12G8-E- -S1G9-V3Encoder cable · Electrical accessories
DHAA-D-E2-18/25-Q11-20Adapter kit · Mounting accessories
DHAA-D-E2-25-Q11-25Adapter kit · Mounting accessories
DHAA-D-E2-25-Q11-32Adapter kit · Mounting accessories
EAMD-42-40-20-16X25-UCoupling · Mounting accessories
DHAA-G-Q11-32-B8-40Adapter kit · Mounting accessories
DHAA-G-Q11-32-B8-50Adapter kit · Mounting accessories
EMGA-80-P-G3-EAS-80Gear unit · Mounting accessories
EMGA-80-P-G5-EAS-80Gear unit · Mounting accessories
DHAA-D-E2-18/25-Q11-20-EAdapter kit · Mounting accessories
DHAA-D-E2-25-Q11-25-EAdapter kit · Mounting accessories
DHAA-D-E2-25-Q11-32-EAdapter kit · Mounting accessories
DHAA-G-Q11-32-B8G-40Adapter kit · Mounting accessories
DHAA-G-Q11-32-B8G-50Adapter kit · Mounting accessories
DHAA-D-E21-70...110-Q11-32Adapter kit · Mounting accessories
DHAA-D-E21-70...110-Q11-32-EAdapter kit · Mounting accessories
DHAA-D-E21-70...110-Q11-35Adapter kit · Mounting accessories
DHAA-D-E21-70...110-Q11-35-EAdapter kit · Mounting accessories
DHAA-G-E21-70...110-B8-63Adapter kit · Mounting accessories
DHAA-G-E21-70...110-B8G-63Adapter kit · Mounting accessories
EMMT-AS-80-S-LS-RSServo motor · Electrical accessories
EMMT-AS-80-S-LS-RMServo motor · Electrical accessories
EMMT-AS-80-S-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-S-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RSServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMServo motor · Electrical accessories
EMMT-AS-80-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RSServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMServo motor · Electrical accessories
EMMT-AS-80-M-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RSServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMServo motor · Electrical accessories
EMMT-AS-80-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RSServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMServo motor · Electrical accessories
EMMT-AS-80-L-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RSServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMServo motor · Electrical accessories
EMMT-AS-80-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-S-HS-RSServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMServo motor · Electrical accessories
EMMT-AS-100-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-M-HS-RSServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMServo motor · Electrical accessories
EMMT-AS-100-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-L-HS-RSServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMServo motor · Electrical accessories
EMMT-AS-100-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMBServo motor · Electrical accessories
NST-5-M5-10Slot nut · Mounting accessories
NST-5-M5-50Slot nut · Mounting accessories
EMGA-80-A-G3-80PGear unit · Mounting accessories
EMGA-80-A-G3-100AGear unit · Mounting accessories
ZBH-9-BCentring sleeve · Mounting accessories
EMGA-80-P-G8-EAS-80Gear unit · Mounting accessories
EMGA-80-P-G12-EAS-80Gear unit · Mounting accessories
EMGA-80-P-G20-EAS-80Gear unit · Mounting accessories
EMGA-80-P-G8-SAS-100Gear unit · Mounting accessories
EMGA-80-P-G12-SAS-100Gear unit · Mounting accessories
EMGA-80-P-G20-SAS-100Gear unit · Mounting accessories
ZBH-7-BCentring sleeve · Mounting accessories
EMMT-AS-80-S-LS-RMY Servo motor · Electrical accessories
EMMT-AS-80-S-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMYServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMYServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-H-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMServo motor · Electrical accessories
EMMT-AS-100-H-HS-RSServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMYBServo motor · Electrical accessories
EAMM-A-N48-100A-G2Axial kit · Mounting accessories
EAMM-A-N48-80G-G2Axial kit · Mounting accessories
