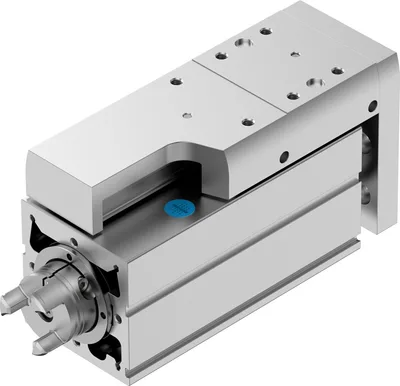

Festo EGSC-BS-KF-60-50-5P
Mini slide. Precise guide and ball screw drive. Compact dimensions. Flexible motor mounting. The toothed belt axes, spindle axes ELGC and mini slides EGSC form a scalable modular system for compact automation. Variants recommended for production systems for manufacturing lithium-ion batteries. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Working stroke50
Size60
Stroke reserve0
Reversing backlash theoretical150
Spindle diameter12
Spindle pitch5
About This Product
Mini slide. Precise guide and ball screw drive. Compact dimensions. Flexible motor mounting. The toothed belt axes, spindle axes ELGC and mini slides EGSC form a scalable modular system for compact automation. Variants recommended for production systems for manufacturing lithium-ion batteries. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Festo EGSC-BS-KF-60-50-5P
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Working stroke50
Size60
Stroke reserve0
Reversing backlash theoretical150
Spindle diameter12
Spindle pitch5
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, Servo motor
ReferencingPositive fixed stop block, Negative fixed stop block, Reference switch
Spindle typeBall screw
Symbol00992069
Position detectionVia proximity switch
Max. acceleration5
Max. rotational speed3000
Max. speed0.25
Repetition accuracy±0.015 mm
Duty cycle100%
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 9 according to ISO 14644-1
Sound pressure level55
Degree of protectionIP40
Ambient temperature0, 50
Impact energy in end positions4.4E-5
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
Dynamic basic load rating fixed bearing13321
Dynamic basic load rating linear guide13400
Dynamic basic load rating ball screw5900
Idle torque at vmax0.125
Idle torque at vmin0.032
Max. force Fy4937
Max. force Fz4937
Fy at theoretical life value of 100 km (only guide consideration)13400
Fz at theoretical life value of 100 km (only guide consideration)13400
Max. moment Mx20
Max. moment My30
Max. moment Mz30
Mx at theoretical life value of 100 km (only guide consideration)107
My at theoretical life value of 100 km (only guide consideration)117
Mz at theoretical life value of 100 km (only guide consideration)117
Max. radial force at drive shaft230
Max. feed force Fx250
Reference value effective load, horizontal25
Reference value effective load, vertical25
Static basic load rating ball screw10600
Static basic load rating linear guide26900
Mass moment of inertia JH per metre of stroke0.11539
Mass moment of inertia JL per kg of working load0.00633
Mass moment of inertia JO0.06624
Feed constant5
Static basic load rating fixed bearing7000
Reference service life5000
Maintenance intervalLifetime lubrication
Moving mass for 0 mm stroke675
Additional moving mass per 10 mm stroke40
Product weight2030
Basic weight for 0 mm stroke1555
Additional weight per 10 mm stroke95
Type of mountingWith female thread, With centring sleeve, With accessories, Via cylindrical dowel pin
Interface code, actuatorT42
Note on materialsRoHS compliant
Material guide slideBearing steel
Material guide railBearing steel
Material housingAnodised wrought aluminium alloy
Material yoke plateAnodised wrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material slideAnodised wrought aluminium alloy
Material ball screw nutBearing steel
Material spindleBearing steel
Accessories 178
Genuine accessories that can be used with the Festo EGSC-BS-KF-60-50-5P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| EAMM-U-65-T42-60P-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-60R-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-55A-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-60RA-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40G-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40R-114 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-87A-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40P-87 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40R-87 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-80P-114 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-82AA-147 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-55A-147 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-80P-147 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-84AA-147 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-87A-147 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40G-147 | Parallel kit · Mounting accessories | |
| EAMM-A-T42-40G | Axial kit · Mounting accessories | |
| EAMM-A-T42-82AA | Axial kit · Mounting accessories | |
| EAMM-A-T42-84AA | Axial kit · Mounting accessories | |
| EAMM-A-T42-40P | Axial kit · Mounting accessories | |
| EAMM-A-T42-40R | Axial kit · Mounting accessories | |
| EAMM-A-T42-80PA | Axial kit · Mounting accessories | |
| GASA-MIE-CTR-12M-1 | AX Industrial App · Digital services | |
| GASA-MIE-CTR-12M-10 | AX Industrial App · Digital services | |
| GASA-MIE-CTR-12M-100 | AX Industrial App · Digital services | |
| GASA-MIE-CTR-12M-50 | AX Industrial App · Digital services | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-M8G3 | Connecting cable · Connecting cables | |
| SMT-8M-A-NO-24V-E-7,5-OE | Proximity sensor · Proximity sensors | |
| EMMT-ST-57-M-RS | Stepper motor · Motors | |
| EAPM-L2-SH | Sensor bracket · Mounting accessories | |
| EAMM-U-65-T42-60P-87 | Parallel kit · Mounting accessories | |
| EMMT-AS-60- | Servo motor · Motors | |
| EAHF-L2-45-P | Profile mounting · Mounting accessories | |
| EAMM-A-T42-60P | Axial kit · Mounting accessories | |
| EAMM-A-T42-57A | Axial kit · Mounting accessories | |
| EAMM-U-65-T42-57A-87 | Parallel kit · Mounting accessories | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| QS-G1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-12 | Push-in fitting · Push-in fittings | |
| SIES-8M-PS-24V-K-7,5-OE | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-PS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-PS-24V-K-2,5-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-PS-24V-K-5,0-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-PS-24V-K-10-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-PO-24V-K-7,5-OE | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-PO-24V-K-0,3-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-PO-24V-K-2,5-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-PO-24V-K-5,0-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-PO-24V-K-10-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-NS-24V-K-7,5-OE | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-NS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-NS-24V-K-2,5-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-NS-24V-K-5,0-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-NS-24V-K-10-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-NO-24V-K-7,5-OE | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-NO-24V-K-0,3-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-NO-24V-K-2,5-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-NO-24V-K-5,0-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SIES-8M-NO-24V-K-10-M8D | Proximity sensor · Cylinder sensor for mounting kit | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Cylinder sensor for mounting kit | |
| EMMT-AS-80-H-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80- | Servo motor · Electrical accessories | |
| EAMM-A-T42-87A | Axial kit · Mounting accessories | |
| EAMM-A-T42-80P | Axial kit · Mounting accessories | |
| EAHF-L2-45-P-S | Profile mounting · Cylinder mountings | |
| EMMT-AS-60-S-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RMB | Servo motor · Electrical accessories | |
| EAPM-L2-60-SLS | Switch lug · Mounting accessories | |
| EAMM-A-T42-55A | Axial kit · Mounting accessories | |
| EAMM-U-65-T42-60PA-87 | Parallel kit · Mounting accessories | |
| EAMM-A-T42-60AA | Axial kit · Mounting accessories | |
| EAMM-A-T42-60RA | Axial kit · Mounting accessories | |
| EAMM-U-65-T42-55A-87 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-58AA-87 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-60AA-87 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-60RA-87 | Parallel kit · Mounting accessories | |
| EAMM-A-T42-60R | Axial kit · Mounting accessories | |
| EAMM-U-65-T42-60R-87 | Parallel kit · Mounting accessories | |
| EAMM-A-T42-58AA | Axial kit · Mounting accessories | |
| EAMM-A-T42-60AB | Axial kit · Mounting accessories | |
| EAMM-U-65-T42-60AB-87 | Parallel kit · Mounting accessories | |
| DHAA-G-E8-60-B18-16 | Adapter kit · Mounting accessories | |
| ZBH-7-B | Centring sleeve · Mounting accessories | |
| EMMT-AS-60-S-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-L-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RM | Servo motor · Electrical accessories | |
| DHAA-G-E19-60-B24-28 | Adapter kit · Mounting accessories | |
| DHAA-G-E19-60-B24-36 | Adapter kit · Mounting accessories | |
| EMMT-AS-80-H-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-80-H-HS-RMYB | Servo motor · Electrical accessories | |
| EAMM-U-65-T42-57A-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40P-114 | Parallel kit · Mounting accessories |
Related Products
View Details
Festo
YXCF-2
MFR #YXCF-2
SKU #YLSL6U6NTXCKHGD
View Details
Festo
YXCF-3
MFR #YXCF-3
SKU #YLSZVSBYGKJ08DU
View Details
Festo
YXCF-4
MFR #YXCF-4
SKU #YLSIOSKDCAW31TC
View Details
Festo
YXCF-1-B
MFR #YXCF-1-B
SKU #YLS8M1FM2JHSBU
View Details
Festo
YXCF-2-B
MFR #YXCF-2-B
SKU #YLSAJENB5OIQWGN
View Details
Festo
YXCL-1-D
MFR #YXCL-1-D
SKU #YLS74NKJF7W65BZ
View Details
Festo
YXCL-2-D
MFR #YXCL-2-D
SKU #YLS1RJGPTBKRKVF
View Details
Festo
YXCL-1
MFR #YXCL-1
SKU #YLSFPVVOW7GENV
View Details
Festo
YXCR-1
MFR #YXCR-1
SKU #YLSW4HQHDBEYOQG
Featured Products
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
View Details
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Related Searches
Festo EGSC-BS-KF-60-50-5P priceFesto EGSC-BS-KF-60-50-5P quotebuy Festo EGSC-BS-KF-60-50-5PEGSC-BS-KF-60-50-5P priceEGSC-BS-KF-60-50-5P stock availabilityFesto spare partsFesto EGSC-BS-KF-60-50-5P equivalentFesto EGSC-BS-KF-60-50-5P specifications
