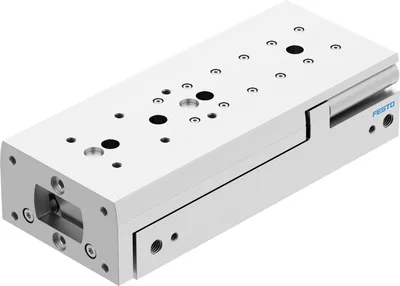

Festo DGST-25-125-Y12A
Mini slide. Powerful twin-piston drive. Shortest mini slide on the market. Precise recirculating ball bearing guide. Versatile mounting options. Version with mirrored supply port configuration and sensor slots for compact assembly available to order using the configurator. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials
Stroke125
Piston diameter25 mm
Operating mode, drive unitYoke
CushioningExternal hydraulic cushioning
Mounting positionAny
GuideBall bearing cage guide
About This Product
Mini slide. Powerful twin-piston drive. Shortest mini slide on the market. Precise recirculating ball bearing guide. Versatile mounting options. Version with mirrored supply port configuration and sensor slots for compact assembly available to order using the configurator. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials
Festo DGST-25-125-Y12A
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke125
Adjustable end position range/length front32
Adjustable end position range/length rear30.4
Piston diameter25 mm
Operating mode, drive unitYoke
CushioningExternal hydraulic cushioning
Mounting positionAny
GuideBall bearing cage guide
DesignYoke, Piston rod, Slide
Position detectionVia proximity switch
Symbol00991249
Operating pressure0.1, 0.8
Operating pressure1, 8
Operating pressure14.5, 116
Max. speed0.8
Repetition accuracy<= 0.02 mm
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Ambient temperature-10, 60
Impact energy in end positions6
Cushioning length10
Max. force Fy1380
Max. force Fz1380
Max. moment Mx20
Max. moment My17
Max. moment Mz17
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke495
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke589
Moving mass1808
Product weight3717
Type of mountingWith through-hole
Pneumatic connectionG1/8
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsHNBR
Material guidePOM, TPE-E, High-alloy steel
Material housingWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Accessories 337
Genuine accessories that can be used with the Festo DGST-25-125-Y12A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| PUN-H-6X1-BL | Plastic tubing · Tubes | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| GRLA-1/8-QS-6-D | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6 | One-way flow control valve · Function fittings | |
| PUN-H-6X1-NT | Plastic tubing · Tubes | |
| PUN-H-6X1-SW | Plastic tubing · Tubes | |
| PUN-H-6X1-TBL | Plastic tubing · Tubes | |
| QS-G1/8-6 | Push-in fitting · Fittings | |
| QS-G1/8-6-I | Push-in fitting · Fittings | |
| QSL-G1/8-6 | Push-in L-fitting · Fittings | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| ZBH-12-B | Centring sleeve · Mounting accessories | |
| GASA-MIP-CTR-12M-10 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-100 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-1000 | AX Industrial App · Digital services | |
| VFOE-LE-T-G18-Q8 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q4 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6-P50 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q4-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q8-F1A | One-way flow control valve · Function fittings | |
| CK-1/8-PK-4 | Quick connector · Quick connectors | |
| CK-1/8-PK-6 | Quick connector · Quick connectors | |
| CK-1/8-PK-3 | Quick connector · Quick connectors | |
| LCK-1/8-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-3 | T quick connector · Quick connectors | |
| LCK-1/8-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4 | T quick connector · Quick connectors | |
| TCK-1/8-PK-6 | T quick connector · Quick connectors | |
| SEU-1/8 | Quick exhaust valve · Function fittings | |
| CK-1/8-PK-3-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-6-KU | Quick connector · Quick connectors | |
| LCK-1/8-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4-KU | T quick connector · Quick connectors | |
| TCK-1/8-PK-6-KU | T quick connector · Quick connectors | |
| GRU-1/8-B | Flow control/silencer · Function fittings | |
| SE-1/8-B | Quick exhaust valve · Function fittings | |
| CN-1/8-PK-3 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-6 | Barbed fitting · Barbed fittings | |
| LCN-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| TCN-1/8-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCNH-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| QSW-1/8-4 | Push-in fitting · Push-in fittings | |
| QSW-1/8-6 | Push-in fitting · Push-in fittings | |
| QSW-1/8-8 | Push-in fitting · Push-in fittings | |
| QSL-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSM-1/8-4-100 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-100 | Push-in fitting · Push-in fittings | |
| QSML-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-V0-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSML-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8-100 | Push-in L-fitting, long · Push-in fittings | |
| GRLA-1/8-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-PK-3-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-PK-4-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-PK-6-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-RS-B | One-way flow control valve · Function fittings | |
| QSL-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/8-4-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/8-6-B | Multiple distributor · Push-in fittings | |
| QST3-1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSL-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/8-6 | Multiple distributor · Push-in fittings | |
| QST3-G1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-G1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-G1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-G1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-G1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSL-1/8-10 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-10 | Push-in T-fitting · Push-in fittings | |
| GRLA-1/8-QS-3-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-4-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-8-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-3-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-4-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-6-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-8-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-6-MF-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-8-MF-D | One-way flow control valve · Function fittings | |
| GRLSA-1/8-QS-6 | One-way flow control valve · Function fittings | |
| SME-8M-DS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-ZS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-...- | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| VBQF-U-G18-E | Quick exhaust valve · Function fittings | |
| VBQF-U-G18-Q6 | Quick exhaust valve · Function fittings | |
| VBQF-D-G18-E | Quick exhaust valve · Function fittings | |
| VBQF-D-G18-Q6 | Quick exhaust valve · Function fittings | |
| SMT-8G-PS-24V-E-2,5Q-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8G-PS-24V-E-0,3Q-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMAT-8M-U-E-0,3-M8D | Position transmitter · Cylinder sensors for direct mounting | |
| SMT-8M-A | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| VFOH-LE-A-G18-Q4 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G18-Q6 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G18-Q8 | One-way flow control valve · Function fittings | |
| SDAT-MHS-M125-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| NPFC-L-2G18-F | Elbow fitting · Other connectors | |
| NPFC-L-R18-G18-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R18-M | Elbow fitting · Other connectors | |
| NPFC-Y-R18-2G18-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G18-F | T-fitting · Other connectors | |
| NPFC-T-R18-2G18-MFF | T-fitting · Other connectors | |
| NPFC-T-2G18-R18-FMF | T-fitting · Other connectors | |
| NPFC-T-G18-2R18-FMM | T-fitting · Other connectors | |
| NPFC-T-2R18-G18-MMF | T-fitting · Other connectors | |
| NPFC-D-M7-G18-M | Double nipple · Other connectors | |
| NPFC-D-2G18-M | Double nipple · Other connectors | |
| NPFC-D-2R18-M | Double nipple · Other connectors | |
| NPFC-S-2G18-F | Sleeve · Other connectors | |
| NPFC-R-G38-G18-F | Reducing sleeve · Other connectors | |
| NPFC-E1-2G18-FM | Extension · Other connectors | |
| NPFC-E2-2G18-FM | Extension · Other connectors | |
| NPFC-E3-2G18-FM | Extension · Other connectors | |
| NPFC-E4-2G18-FM | Extension · Other connectors | |
| NPFC-R-G14-G18-MF | Reducing nipple · Other connectors | |
| NPFC-R-G38-G18-MF | Reducing nipple · Other connectors | |
| NPFC-R-G14-G18-FM | Reducing nipple · Other connectors | |
| NPFC-R-G38-G18-FM | Reducing nipple · Other connectors | |
| NEAU-A-N8-1 | Mounting · Mounting accessories | |
| NEAU-A-N8-2 | Mounting · Mounting accessories | |
| SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE | Position transmitter · Cylinder sensors for direct mounting | |
| SMT-8G-NS-24V-E-0,3Q-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8G-NS-24V-E-2,5Q-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-D-M5-G18-M | Double nipple · Other connectors | |
| NPFC-D-2G18-M-P100 | Double nipple · Other connectors | |
| NPFC-R-G14-G18-F | Reducing sleeve · Other connectors | |
| NPFC-R-G12-G18-F | Reducing sleeve · Other connectors | |
| NPFC-R-G14-G18-MF-P100 | Reducing nipple · Other connectors | |
| NPFC-H-G18-F | Bulkhead fitting · Other connectors | |
| DYSS-G8-10-10-Y1F | Shock absorber · Mounting accessories | |
| DHAA-G-H1-25-B18-25 | Adapter kit · Mounting accessories | |
| SDAT-MHS-M125-1L-SV-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| NPFC-D-2G18-M-F1A | Double nipple · Other connectors | |
| SMT-8M-A-NO-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-DS-G18-G18-M | Double nipple · Other connectors | |
| NPFC-DS-G18-G14-M | Double nipple · Other connectors | |
| NPFC-RS-G14-G18-MF | Reducing nipple · Other connectors | |
| NPFC-RS-G38-G18-MF | Reducing nipple · Other connectors | |
| DADP-ES-G8-25 | Shock absorber retainer · Mounting accessories | |
| DADG-AK-G8-25-125 | Connection kit · Connection accessories | |
| DHAA-D-G8-H-25-10-G8-20-10 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-25-80-G8-20-50 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-25-125-G8-20-100 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-25-200-G8-20-150 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-25-200-G8-25-150 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-25-10-G8-25-10 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-25-80-G8-25-50 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-25-125-G8-25-100 | Adapter kit · Mounting accessories | |
| DHAA-G-G8-25-B20-32 | Adapter kit · Mounting accessories | |
| DHAA-G-G8-25-B18-25 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-25-R1-25 | Adapter kit · Mounting accessories | |
| DHAA-G-G8-25-B12-40 | Adapter kit · Mounting accessories | |
| DHAA-G-G8-25-B8-40 | Adapter kit · Mounting accessories | |
| DHAA-G-G8-25-B8G-40 | Adapter kit · Mounting accessories | |
| SMT-8M-A-ZS-24V-E-5,0-OE | Proximity switch · Cylinder sensors for direct mounting | |
| DHAA-D-G8-25-G8-16 | Adapter kit · Mounting accessories |
Related Products
View Details
Festo
SLM-16- -KF-A 32782
MFR #SLM-16- -KF-A
SKU #YLS7MOHSD6T62FF
View Details
Festo
SLM-20- -KF-A 32783
MFR #SLM-20- -KF-A
SKU #YLS251YV9PRQXII
View Details
Festo
SLM-25- -KF-A 32784
MFR #SLM-25- -KF-A
SKU #YLSQPCXDEZVK5XF
View Details
Festo
SLM-32- -KF-A 32785
MFR #SLM-32- -KF-A
SKU #YLSBSFT5LBD4HEK
View Details
Festo
SLM-40- -KF-A 32786
MFR #SLM-40- -KF-A
SKU #YLSILI4KCHUWY1M
View Details
Festo
ADVU-125- -P-A 175759
MFR #ADVU-125- -P-A
SKU #YLSA9PBAQRLCV6X
View Details
Festo
ADVU-125- -A-P-A 175771
MFR #ADVU-125- -A-P-A
SKU #YLSR8LHHCJT3NU9
View Details
Festo
AEN-12- -
MFR #AEN-12- -
SKU #YLSVEWSV7OYHYR1
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Featured Products
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
View Details
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Related Searches
Festo DGST-25-125-Y12A priceFesto DGST-25-125-Y12A quotebuy Festo DGST-25-125-Y12ADGST-25-125-Y12A priceDGST-25-125-Y12A stock availabilityFesto spare partsFesto DGST-25-125-Y12A equivalentFesto DGST-25-125-Y12A specifications
