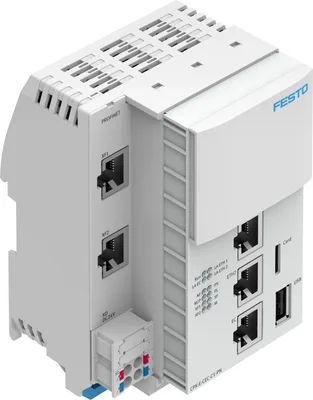

Festo CPX-E

Automation system. Modern control system with high performance. Fieldbus master interfaces, EtherCAT® master, fieldbus slave interfaces, PROFINET, EtherNet/IP, PROFIBUS, EtherCAT® digital input modules (16DI), digital output modules (8DO/0.5A). Analogue input modules (current, voltage), analogue output modules (current, voltage). Modern programming with CoDeSys V3 to IEC 61131-3. Integration of SoftMotion functions (SoftMotion). Compact I/O assembly. Easy mounting of the control system. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # CPX-ESKU # YLS8TN5RGSLW1II

Electrical controlFieldbus, Integrated controller

Grid dimension18.9

Type of mountingvia DIN rail

Max. number of modules10

Mounting positionVertical, Horizontal

Ambient temperature-5, 50

Have questions?Chat on WhatsApp

About This Product

Festo CPX-E

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Electrical controlFieldbus, Integrated controller

Grid dimension18.9

Type of mountingvia DIN rail

Max. number of modules10

Mounting positionVertical, Horizontal

Ambient temperature-5, 50

Note on ambient temperature-5 - 60°C for vertical installation

Storage temperature-20, 70

Relative air humidity95%, Non-condensing

Degree of protectionIP20

Corrosion resistance class CRC0 - No corrosion stress

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Protection against direct and indirect contactPELV

LABS (PWIS) conformityVDMA24364 zone III

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E239998

Note on materialsRoHS compliant

Material housingPA

DiagnosisModule-specific, per bus, per LED

Max. address volume, inputs64

Max. address volume, outputs64

Internal cycle time< 1 ms

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Max. power supply8

Power failure bridging10

Reverse polarity protectionYes
