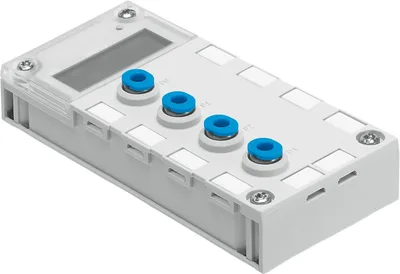

FESTO CPX-4AE-P-D10

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO CPX-4AE-P-D10

Analogue module. Individual components for the electrical terminal CPX

FESTOMFR # CPX-4AE-P-D10SKU # CEY-937FC781D758
Dimensions (W x L x H)50 mm x 107 mm x 55 mm
Product weight115
Media temperature0, 50
Ambient temperature-5, 50
Storage temperature-20, 70
Degree of protectionIP65, IP67
Share
Have questions?Chat on WhatsApp

About This Product

Analogue module. Individual components for the electrical terminal CPX

FESTO CPX-4AE-P-D10

  • Genuine, certified FESTO product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)50 mm x 107 mm x 55 mm
Product weight115
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature0, 50
Ambient temperature-5, 50
Storage temperature-20, 70
Degree of protectionIP65, IP67
Corrosion resistance class CRC(installed)
LABS (PWIS) conformityVDMA24364-B2-L
Note on materialsRoHS compliant
Material housingMakrolon®
Pneumatic connectionQS-4
LED display1 Group diagnostics
DiagnosisLimit value violation per channel, Parameterisation error, Sensor limit per channel
ParameterisationDiagnostic delay per channel, Hysteresis per module, Unit of measurement, Measured value smoothing per channel, Diagnostics limit monitoring per channel, Diagnostics: sensor limit per channel, Relativ
Internal cycle time5 ms
Operational voltage range DC18, 30
Nominal operating voltage DC24
Intern power consumption nominal operating voltageTyp. 50 mA
Number of inputs4
Measured variable4x relative pressure/2x differential pressure
Displayable unitskPa, mbar, psi
Data format15 bits + prefix, Binary notation in mbar, kPa, psi
End value for pressure measuring range10
Start value for pressure measuring range0

Accessories 74

Genuine accessories that can be used with the FESTO CPX-4AE-P-D10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
PAN-V0-4X0,75-BLPlastic tubing · Tubing
PUN-4X0,75-SIPlastic tubing · Tubing
PAN-4X0,75-SIPlastic tubing · Tubing
PUN-4X0,75-BLPlastic tubing · Tubing
PUN-4X0,75-SWPlastic tubing · Tubing
PUN-4X0,75-RTPlastic tubing · Tubing
PUN-4X0,75-GEPlastic tubing · Tubing
PUN-4X0,75-GNPlastic tubing · Tubing
PUN-CM-4-SWPlastic tubing · Tubing
PLN-4X0,75-NTPlastic tubing · Tubing
PLN-4X0,75-SWPlastic tubing · Tubing
PFAN-4X0,75-NTPlastic tubing · Tubing
PUN-H-4X0,75-NTPlastic tubing · Tubing
PUN-H-4X0,75-BLPlastic tubing · Tubing
PUN-H-4X0,75-SWPlastic tubing · Tubing
PUN-4X0,75-SI-500Plastic tubing · Tubing
PUN-4X0,75-BL-500Plastic tubing · Tubing
PAN-R-4X0,75-SIHeavy-duty tubing · Tubing
PEN-4X0,75-SWPlastic tubing · Tubing
PEN-4X0,75-NTPlastic tubing · Tubing
PAN-4X0,75-NTPlastic tubing · Tubing
NEBV-M12G8-KD-3-M12G4 Connecting cable · Electrical accessories
PEN-4X0,75-SW-500Plastic tubing · Tubing
PEN-4X0,75-BL-500Plastic tubing · Tubing
PEN-4X0,75-SI-500Plastic tubing · Tubing
PEN-4X0,75-BLPlastic tubing · Tubing
PEN-4X0,75-SIPlastic tubing · Tubing
PEN-4X0,75-GNPlastic tubing · Tubing
PEN-4X0,75-RTPlastic tubing · Tubing
PEN-4X0,75-GEPlastic tubing · Tubing
NEBV-M12G8-K-2-M12G4Connecting cable · Electrical accessories
NEBV-M12G8-K-5-M12G4Connecting cable · Electrical accessories
PAN-4X0,75-SI-500Plastic tubing · Tubing
PAN-4X0,75-BL-500Plastic tubing · Tubing
PAN-4X0,75-SW-500Plastic tubing · Tubing
PAN-4X0,75-BLPlastic tubing · Tubing
PAN-4X0,75-SWPlastic tubing · Tubing
PAN-4X0,75-GNPlastic tubing · Tubing
PAN-4X0,75-RTPlastic tubing · Tubing
PAN-4X0,75-GEPlastic tubing · Tubing
PUN-4X0,75-SW-500Plastic tubing · Tubing
PLN-4X0,75-BLPlastic tubing · Tubing
PLN-4X0,75-SIPlastic tubing · Tubing
PLN-4X0,75-RTPlastic tubing · Tubing
PUN-H-4X0,75-SW-500Plastic tubing · Tubing
PUN-H-4X0,75-BL-500Plastic tubing · Tubing
PUN-H-4X0,75-NT-500 Plastic tubing · Tubing
PUN-H-4X0,75-SI-500Plastic tubing · Tubing
PUN-H-4X0,75-SIPlastic tubing · Tubing
PUN-H-4X0,75-RTPlastic tubing · Tubing
PUN-H-4X0,75-GNPlastic tubing · Tubing
PUN-H-4X0,75-GEPlastic tubing · Tubing
PUN-V0-4X1-SW-CPlastic tubing · Tubing
PUN-V0-4X1-BL-CPlastic tubing · Tubing
PAN-MF-4X0,75-SWPlastic tubing · Tubing
PAN-MF-4X0,75-SW-500Plastic tubing · Tubing
PUN-H-4X0,75-TBLPlastic tubing · Tubing
PUN-H-4X0,75-TBL-500Plastic tubing · Tubing
PUN-H-4X0,75-TSWPlastic tubing · Tubing
PUN-H-4X0,75-TSW-500Plastic tubing · Tubing
PUN-H-4X0,75-TRTPlastic tubing · Tubing
PUN-H-4X0,75-TRT-500Plastic tubing · Tubing
PUN-H-4X0,75-TGNPlastic tubing · Tubing
PUN-H-4X0,75-TGN-500Plastic tubing · Tubing
PUN-H-4X0,75-TGEPlastic tubing · Tubing
PUN-H-4X0,75-TGE-500Plastic tubing · Tubing
PTFEN-4X0,5-NT-100Plastic tubing · Tubing
PUN-H-F-4X0,75-NTPlastic tubing · Tubing
PUN-H-F-4X0,75-RTPlastic tubing · Tubing
PUN-H-F-4X0,75-BLPlastic tubing · Tubing
PUN-H-F-4X0,75-TBLPlastic tubing · Tubing
PUN-H-F-4X0,75-GNPlastic tubing · Tubing
PUN-H-F-4X0,75-GEPlastic tubing · Tubing
PUN-H-F-4X0,75-SWPlastic tubing · Tubing
