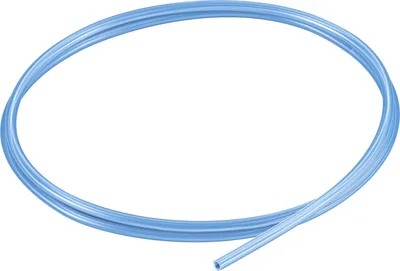

Festo PUN-H-F-4X0,75-TBL

Plastic tubing. Polyurethane. High resistance to microbes and hydrolysis. For food safety certificates, see www.festo.com/certificates/PUN_H_F. Operating medium: compressed air, vacuum, water

FestoMFR # PUN-H-F-4X0,75-TBLSKU # YLSE4M4HXOXJT7J

Outside diameter4

Flow-relevant bending radius16

Inside diameter2.6

Min. bending radius8

Symbol00997424

Tubing characteristicsSuitable for energy chains

Have questions?Chat on WhatsApp

About This Product

Plastic tubing. Polyurethane. High resistance to microbes and hydrolysis. For food safety certificates, see www.festo.com/certificates/PUN_H_F. Operating medium: compressed air, vacuum, water

Festo PUN-H-F-4X0,75-TBL

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter4

Flow-relevant bending radius16

Inside diameter2.6

Min. bending radius8

Instructions on useTubing without printing, TPE-U, ether-based

Symbol00997424

Tubing characteristicsSuitable for energy chains

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Fire test materialUL94 HB

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Suitable for use with foodSee declaration of conformity

Ambient temperature-35, 60

Product weight according to length0.0084

Pneumatic connectionFor push-in connector O.D. 4 mm, For barbed fitting I.D. 3 mm with union nut

ColourTranslucent blue

Shore hardnessD 52 +/-3

Note on materialsRoHS compliant

Material tubingTPE-U(PU)
