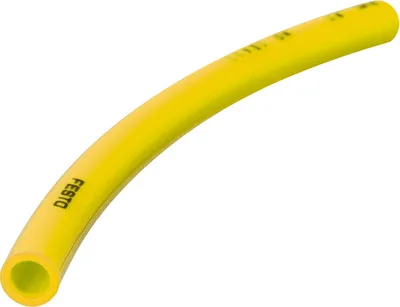

FESTO PEN-4X0,75-GE

Plastic tubing. Polyethylene. High resistance to chemicals and very high resistance to hydrolysis. Resistant to most cleaning agents and lubricants. Suitable for use with energy chains. Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/PEN_S

FESTOMFR # PEN-4X0,75-GESKU # CEY-937FC781E148

Outside diameter4

Flow-relevant bending radius20

Inside diameter2.7

Min. bending radius10

Tubing characteristicsSuitable for energy chains

Temperature-dependent operating pressure-0.095, 1

Have questions?Chat on WhatsApp

About This Product

FESTO PEN-4X0,75-GE

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter4

Flow-relevant bending radius20

Inside diameter2.7

Min. bending radius10

Tubing characteristicsSuitable for energy chains

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C

ApprovalGerman Technical Control Board (TÜV)

Certificate issuing authorityB 013277 0527 00

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Ambient temperature-30, 60

Product weight according to length0.00643

Pneumatic connectionFor push-in connector O.D. 4 mm, For push-in connector outside diameter of 5/32", For barbed fitting I.D. 3 mm with union nut, For barbed fitting I.D. 3 mm

ColourYellow

Shore hardnessD 52 +/-3

Note on materialsRoHS compliant

Material tubingPackaging unit

Accessories 10

Genuine accessories that can be used with the FESTO PEN-4X0,75-GE motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSM-M5-4	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
KK-3	Multi-tube holder · Mounting accessories
QSM-M5-4-I	Push-in fitting · Fittings
NPQM-DK-M5-Q4-P10	Push-in fitting · Fittings
NPQM-L-M5-Q4-P10	Push-in L-fitting · Fittings
PKB-50-BL	Spiral wrap for tubing · General accessories
ZRS	Pipe and tubing cutter · General accessories
VFOE-LE-T-M5-Q4	One-way flow control valve · Function fittings
VFOE-LS-T-M5-Q4	One-way flow control valve · Function fittings
