How can I get a price quote for Enerpac RC506?

You can request a fast quote for Enerpac RC506 from Yılsa Engineering. Reference part number CEY-55221B12E096. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RC506 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RC506 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RC506?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

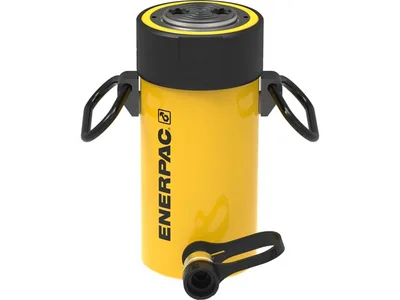

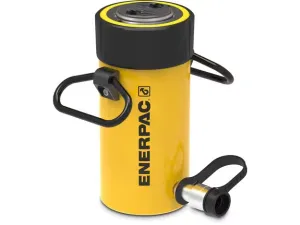

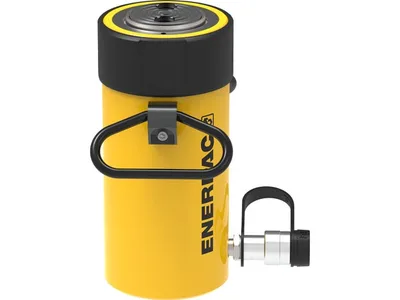

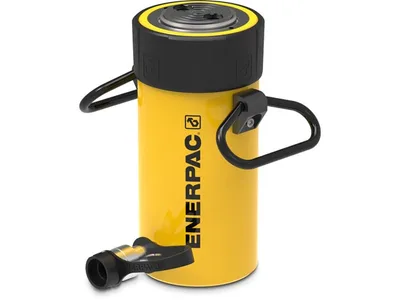

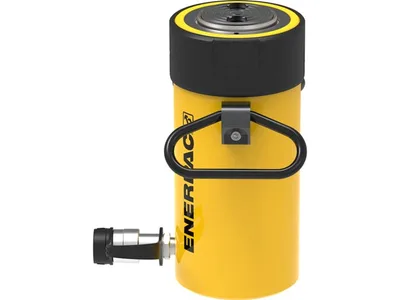

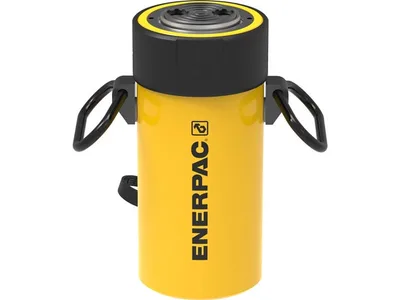

Enerpac RC506 55.2 ton Hydraulic Cylinder

Enerpac RC506; 55.2 ton capacity, 159 mm stroke, single-acting spring-return general purpose hydraulic cylinder.

EnerpacMFR # RC506SKU # CEY-55221B12E096

Cylinder Class50 ton

Stroke159 mm (6.25 in)

Collapsed Height (A)283 mm (11.13 in)

Outside Diameter D127 mm (5 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U95 mm (3.75 in)

Have questions?Chat on WhatsApp

About This Product

The RC506 is a single-acting, spring-return general purpose hydraulic cylinder from the Enerpac RC-Series (RC-TRIO). It offers 55.2 ton capacity and 159 mm (6.25 in) stroke, with a collapsed height of 283 mm and an outside diameter of 127 mm. The body has a 5" - 12 UN collar thread and base mounting holes on a 95 mm bolt circle for easy fixturing. It weighs 23.1 kg and has a painted finish. A CR400 coupler and dust cap are included. It is used for lifting and pushing in maintenance, assembly and industrial plant work where a cylinder that can be used in any position is needed.

Features and Benefits

55.2 ton capacity, 159 mm stroke
Bearing system with composite wear bands for side load resistance
Trio Hybrid pre-tensioned spring system for faster retraction
Collar thread and base mounting holes for easy fixturing
Designed for use in all positions; CR400 coupler and dust cap included

Enerpac RC506

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class50 ton

Stroke159 mm (6.25 in)

Collapsed Height (A)283 mm (11.13 in)

Outside Diameter D127 mm (5 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U95 mm (3.75 in)

Collar Thread (W)5" - 12 UN

Surface TreatmentPaint

Weight23,1 kg (51 lbs)

Oil Capacity (Advance)1131 cm³ (69.03 in³)

Base Mounting Holes Thread Depth Z19 mm (0.75 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V1/2"- 13 un

Maximum Cylinder Capacity (Advance)498 kN (55.2 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)95,2 mm (3.75 in)

Product TypeGeneral Purpose Cylinder

SeriesRC

Plunger Internal ThreadN/A

Base to Advance Port H35 mm (1.38 in)

Model Type55.2 Ton Capacity, 6.25 in. Stroke

Optional Tilt Saddle Diameter (J1)2.81 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J71 mm (2.8 in)

Country of OriginChina

Collar Thread Length (X)55 mm (2.19 in)

Saddle Diameter J171 mm

Extended Height (B)442 mm (17.38 in)

Cylinder Effective Area (Advance)71,3 cm² (11.04 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)15 mm (0.59 in)

Saddle Protrusion from Plunger K2 mm (0.11 in)

Saddle Protrusion from Plunger K12 mm

Plunger Thread Length (P)N/A mm

Plunger Diameter F79,4 mm (3.13 in)

Set IncludesCHM6
