How can I get a price quote for Enerpac HC7210?

You can request a fast quote for Enerpac HC7210 from Yılsa Engineering. Reference part number CEY-F6D1AF298F81. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HC7210 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HC7210 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HC7210?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

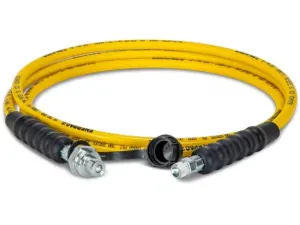

Enerpac HC7210 3 m 700 bar Hydraulic Hose

Enerpac HC7210; 3.0 m (10 ft) length, 6.4 mm (1/4") inside diameter, 700 bar (10,000 psi) maximum operating pressure thermoplastic hydraulic hose with 3/8 NPTF and CH604 ends.

EnerpacMFR # HC7210SKU # CEY-F6D1AF298F81

Country of OriginGermany

End Two CouplerCH604

Maximum Operating Pressure700 bar (10,000 psi)

Length3,0 m (10 ft)

Capacity96,51 cm³

Internal Diameter6,4 mm (0.25 in)

Have questions?Chat on WhatsApp

About This Product

HC7210 is a thermoplastic high pressure hydraulic hose from the Enerpac H700 series. It is 3.0 m (10 ft) long with a 6.4 mm (0.25 in) inside diameter and a maximum operating pressure of 700 bar (10,000 psi). One end is 3/8 NPTF and the other end is CH604. H700 series hoses have a 4:1 safety factor. Each hose has two layers of steel wire braid covered by a polyurethane sleeve. The hose oil capacity is 96.51 cm³ (5.89 in³) and the weight is 1.5 kg. It is used for high pressure connections between a pump and cylinders, tools or other hydraulic components. With longer hoses, the pump reservoir may need to be filled after the hoses are filled.

Features and Benefits

700 bar (10,000 psi) maximum operating pressure
4:1 safety factor for demanding applications
Polyurethane outer jacket for high abrasion resistance
Low volumetric expansion under pressure supports system efficiency
Vinyl strain relief guard on both ends improves hose life and durability
3/8 NPTF and CH604 end connections, 3.0 m length

Enerpac HC7210

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginGermany

End Two CouplerCH604

Maximum Operating Pressure700 bar (10,000 psi)

Length3,0 m (10 ft)

Capacity96,51 cm³

Internal Diameter6,4 mm (0.25 in)

Product TypeThermo-plastic Hose

SeriesH700

Oil Capacity5.89 in³

End Two AssemblyCH604

Model Type10 ft., 0.25 in Int. Diam., 3/8" NPTF, CH604 Ends

Product LineIndustrial Tools

End One Coupler3/8" NPTF

Weight1,5 kg (3.3 lbs)

End One Assembly3/8" NPTF

Documents & CAD

Series documents 6· shared by this product series

Instruction ManualHydraulic Hose / FittingsPDF·386 KB

Instruction ManualHose, HydraulicPDF·4.1 MB 4 languages· in one file

BrochureH700-H900-Series High-Pressure Hydraulic Hoses; EnglishPDF·458 KB

BrochureH700-Series High-Pressure Hydraulic Hoses; EnglishPDF·458 KB

BrochureHigh_Pressure_Hydraulic_Hoses_EN-SGPDF·279 KB·English

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

Alternative Names & Search Terms

HC7210HC-7210HC 7210hc7210Enerpac HC7210Enerpac HC-7210HC7210 hoseHC7210 hydraulic hoseEnerpac H700 seriesEnerpac H700 hoseEnerpac thermoplastic hydraulic hose700 bar hydraulic hose10,000 psi hydraulic hose3 m hydraulic hose10 ft hydraulic hose6.4 mm ID hydraulic hose1/4 inch high pressure hydraulic hose3/8 NPTF CH604 hose10 ft thermoplastic hosehigh pressure hydraulic hose 700 bar
