How can I get a price quote for Enerpac XA11G?

You can request a fast quote for Enerpac XA11G from Yılsa Engineering. Reference part number CEY-7B4B2D996A72. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac XA11G in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac XA11G genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac XA11G?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

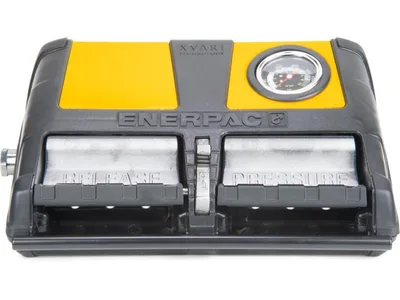

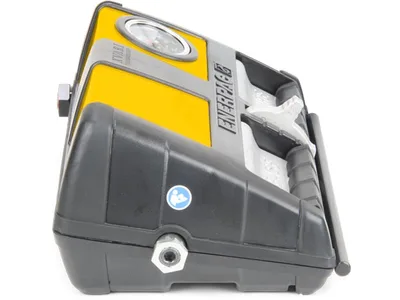

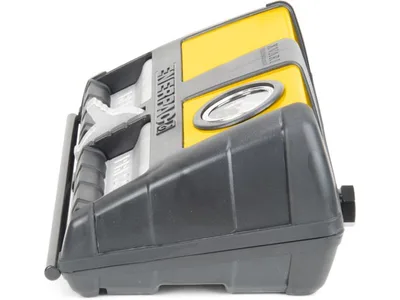

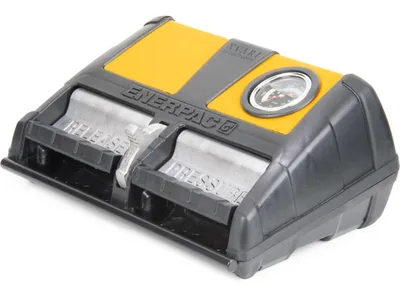

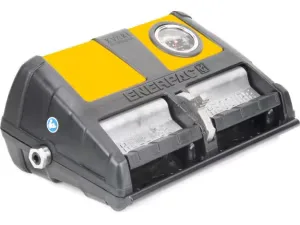

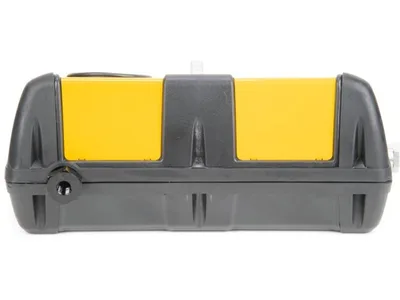

Enerpac XA11G 700 bar Air Driven Pump

Enerpac XA11G; 700 bar, 1.0 L (61 in³) usable oil, 3/3 valve, integrated gauge, air-driven hydraulic pump for single-acting cylinders and tools.

EnerpacMFR # XA11GSKU # CEY-7B4B2D996A72

Output Flow Rate (No Load)2,0 l/min (120 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Dimension H1152 mm (5.98 in)

Output Flow Rate at Load0,25 l/min (15 in³/min)

Country of OriginChina

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The XA11G is an XA series air-driven hydraulic foot pump. It has a 3-way, 3-position (advance/hold/retract) manual valve and is used with single-acting cylinders or tools. Maximum operating pressure is 700 bar (10,000 psi) and usable oil capacity is approximately 1.0 L (61 in³). It includes an integrated pressure gauge. Air pressure range is 2.1-8.6 bar (30-125 psi); no-load flow is 2.0 L/min and flow at rated pressure is 0.25 L/min. Two control pedals add and release pressure, with a pedal lock for the retract position. The closed hydraulic system prevents contamination and allows the pump to be used in any position. It is used in workshop and maintenance applications where hands-free operation is needed.

Features and Benefits

Higher oil flow for increased productivity
Variable oil flow and fine metering for precise control
Closed hydraulic system prevents contamination and allows use in any position
Pedal lock function for retract position
External adjustable pressure setting valve
ATEX certified; includes ground screw for explosion protection

Enerpac XA11G

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Output Flow Rate (No Load)2,0 l/min (120 in³/min)

Maximum Operating Pressure Range700 bar (10,000 psi)

Dimension H1152 mm (5.98 in)

Output Flow Rate at Load0,25 l/min (15 in³/min)

Country of OriginChina

Maximum Flow at Rated Pressure0.25 l/min (15 in3/min · 0,25 l/min · 15 in³/min)

Maximum Operating Pressure700 bar (10,000 psi)

Air Pressure Range2,1 - 8,6 bar (30 - 125 psi)

Valve FunctionAdvance / Hold / Retract

Dimension H2N/A mm

Dimension LN/A mm

Product TypeAir Pump

Reservoir Capacity1000 cm³ (61 in³)

Valve OperationManual

Pump Valve Type3-way, 3-position

SeriesXA

Usable Oil Capacity1,0 l (61 in³)

Pump Power SourceAir

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Model Type61 in3 Capacity, Single-Acting Compatible, Integrated Gauge

Cylinder CompatibilitySingle-acting

Air Consumption283 - 991 l/min (10 - 35 scfm)

Product LineIndustrial Tools

Weight8,8 kg (19.4 lbs)

Documents & CAD

Series documents 7· shared by this product series

Instruction ManualXA-Series PumpPDF·3.4 MB

Instruction ManualXA-Series PumpPDF·3.3 MB

Repair Parts SheetXA-Series Air Driven Hydraulic PumpPDF·2.3 MB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

CertificateEC2B-XA1_ATEX_RevJ_Oct2022PDF·406 KB

BrochureXA-Series Air Hydraulic Foot Pumps; EnglishPDF·344 KB

CAD Files 3

3D Model
