How can I get a price quote for Enerpac RSM200?

You can request a fast quote for Enerpac RSM200 from Yılsa Engineering. Reference part number CEY-8EF3B033D499. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RSM200 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RSM200 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RSM200?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

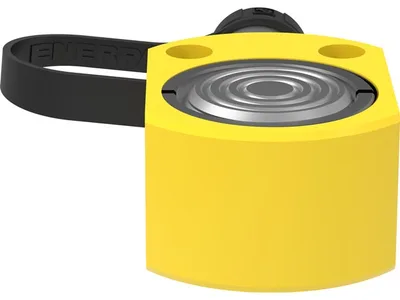

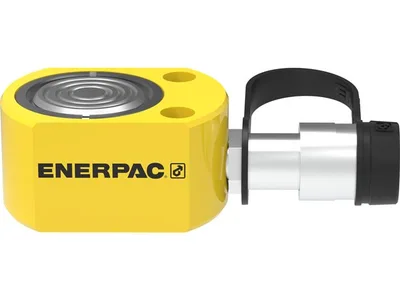

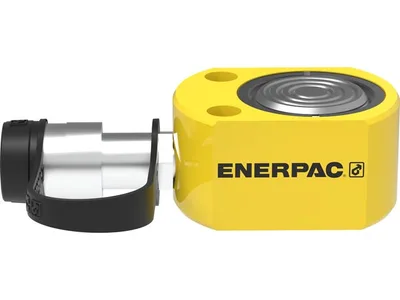

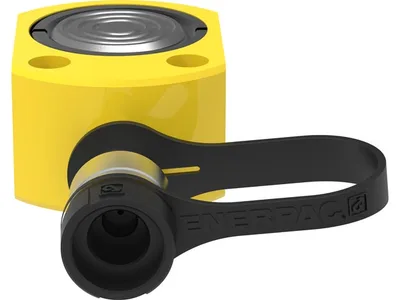

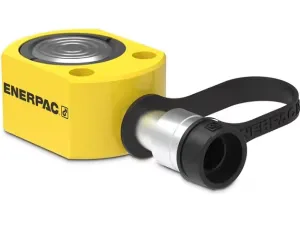

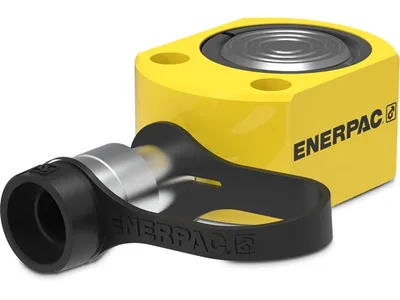

Enerpac RSM200 22.1 ton Low Height Cylinder

Enerpac RSM200; 22.1 ton capacity, 11 mm stroke, 51 mm collapsed height, single-acting spring return low height hydraulic cylinder.

EnerpacMFR # RSM200SKU # CEY-8EF3B033D499

Cylinder Class20 ton

Stroke11 mm (0.44 in)

Collapsed Height (A)51 mm (2.03 in)

Outside Diameter D101 x 76 mm (4.00 x 3.00 in)

Return TypeSingle-Acting, Spring Return

Surface TreatmentPaint

Have questions?Chat on WhatsApp

About This Product

The RSM200 is a model in the RSM series of low profile hydraulic cylinders. It has a 22.1 ton capacity, 11 mm stroke and 51 mm collapsed height. It is single-acting with spring return. Outside dimensions are 101 x 76 mm and weight is 3.1 kg. The body is painted, and flat sides allow safe and stable use in vertical and horizontal orientations. A CR400 coupler and dust cap are included. It is used in general lifting and production applications where space is limited. Mounting holes make it easy to fix the cylinder to machinery or fixtures.

Features and Benefits

Compact, flat-sided design with 51 mm collapsed height
Single-acting design with spring return
Mounting holes permit easy fixturing
Baked enamel finish for increased corrosion resistance
Hard chrome plated steel plunger; grooved end needs no saddle
CR400 coupler and dust cap included

Enerpac RSM200

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

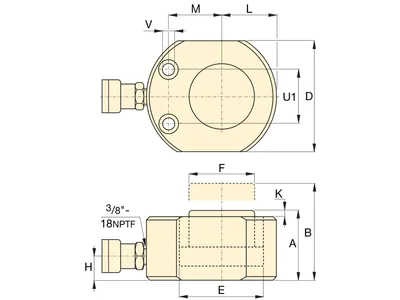

Specifications

Cylinder Class20 ton

Stroke11 mm (0.44 in)

Collapsed Height (A)51 mm (2.03 in)

Outside Diameter D101 x 76 mm (4.00 x 3.00 in)

Return TypeSingle-Acting, Spring Return

Surface TreatmentPaint

Weight3,1 kg (6.8 lbs)

Oil Capacity (Advance)32 cm³ (1.94 in³)

Plunger to Mounting Hole39 mm

Base Mounting Hole Pitch U49,3 mm (1.94 in)

Maximum Operating Pressure700 bar (10,000 psi)

Plunger to Mounting Hole (M)1.56 in

ApplicationsLift, Push

Maximum Cylinder Capacity (Advance)201 kN (22.1 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)60,5 mm (2.38 in)

Product TypeLow Height Cylinder

SeriesRSM

Base Mounting Hole Counterbore Depth9,9 mm (0.39 in)

Base to Advance Port H19 mm (0.75 in)

Model Type22.1 Ton Capacity, 0.44 in. Stroke

Product LineIndustrial Tools

Country of OriginChina

Extended Height (B)62 mm (2.47 in)

Cylinder Effective Area (Advance)28,7 cm² (4.43 in²)

Plunger to Base L39 mm

Plunger to Base (L)1.56 in

Plunger TypeSolid

Cylinder MaterialSteel

Base Mounting Hole Diameter V10,0 mm (0.4 in)

Saddle Protrusion from Plunger K1 mm (0.04 in)

Saddle Protrusion from Plunger K11 mm

Base Mounting Hole Counterbore Diameter15,1 mm (0.549 in)

Plunger Diameter F50,8 mm (2 in)

Documents & CAD

For this product 1

2D DrawingRSM200 drawingPDF·272 KB

Series documents 4· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRSM Cylinders Repair Parts Sheet (Europe Only)PDF·275 KB

BrochureRSM-RCS-Series Low-Height Cylinders; EnglishPDF·310 KB

CAD Files 3

3D Model
