How can I get a price quote for Enerpac RSM50?

You can request a fast quote for Enerpac RSM50 from Yılsa Engineering. Reference part number YLSLWZXLB04XOV9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RSM50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RSM50 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RSM50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

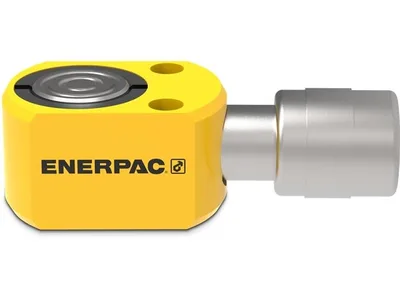

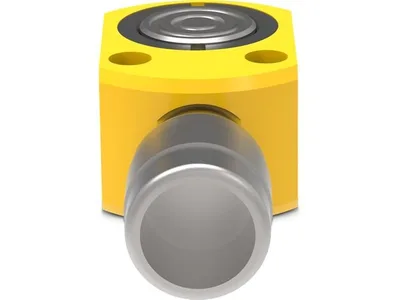

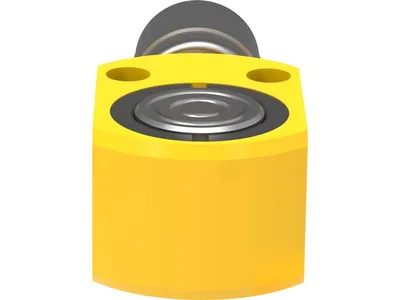

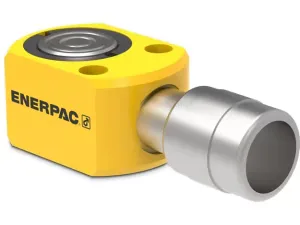

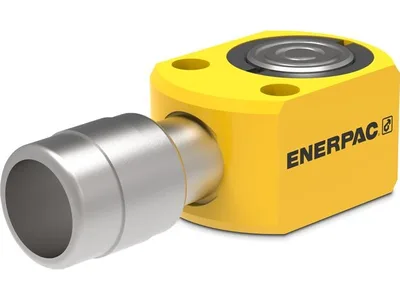

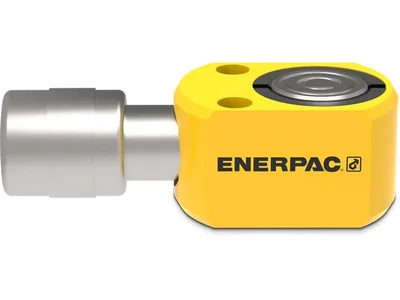

Enerpac RSM50 4.9 ton 6 mm Low Height Cylinder

Enerpac RSM50; 4.9 ton capacity, 6 mm stroke, 700 bar maximum pressure, single-acting spring-return low height hydraulic cylinder.

EnerpacMFR # RSM50SKU # YLSLWZXLB04XOV9

Oil Capacity (Advance)4 cm³ (0.25 in³)

Plunger to Mounting Hole22 mm

Base Mounting Hole Pitch U28,5 mm (1.12 in)

Maximum Operating Pressure700 bar (10,000 psi)

Plunger to Mounting Hole (M)0.88 in

ApplicationsLift, Push

Have questions?Chat on WhatsApp

About This Product

RSM50 is one of the Enerpac RSM series low height hydraulic cylinders. It offers 4.9 ton capacity, 6 mm (0.25 in) stroke and 700 bar (10,000 psi) maximum operating pressure; it is single-acting with spring return. Outside dimensions are 58 x 41 mm, extended height 38 mm and cylinder bore 28.7 mm. It weighs 2.3 lb (about 1 kg) and comes with an AR400 coupler and dust cap. The surface is painted. It is used in general lifting and production applications where space is limited, and can be fixed to machinery using its mounting holes.

Features and Benefits

Compact, flat design for use where other cylinders will not fit
Mounting holes permit easy fixturing
Baked enamel finish for increased corrosion resistance
AR400 coupler and dust cap included
Hard chrome plated high-quality steel plungers; grooved plunger ends require no saddle
Single-acting spring return

Enerpac RSM50

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)4 cm³ (0.25 in³)

Plunger to Mounting Hole22 mm

Base Mounting Hole Pitch U28,5 mm (1.12 in)

Maximum Operating Pressure700 bar (10,000 psi)

Plunger to Mounting Hole (M)0.88 in

ApplicationsLift, Push

Maximum Cylinder Capacity (Advance)45 kN (4.9 ton)

Outside Diameter D58 x 41 mm (2.31 x 1.63 in)

Coupler UsedAR400 Coupler

Cylinder Bore Diameter (E)28,7 mm (1.13 in)

Product TypeLow Height Cylinder

SeriesRSM

Base Mounting Hole Counterbore Depth4,3 mm (0.17 in)

Base to Advance Port H16 mm (0.63 in)

Model Type4.9 Ton Capacity, 0.25 in. Stroke

Product LineIndustrial Tools

Weight1,0 kg (2.3 lbs)

Surface TreatmentPaint

Cylinder Class5 ton

Country of OriginChina

Extended Height (B)38 mm (1.53 in)

Cylinder Effective Area (Advance)6,5 cm² (0.99 in²)

Plunger to Base L20 mm

Plunger to Base (L)0.81 in

Plunger TypeSolid

Collapsed Height (A)32 mm (1.28 in)

Cylinder MaterialSteel

Base Mounting Hole Diameter V5,5 mm (0.2 in)

Stroke6 mm (0.25 in)

Saddle Protrusion from Plunger K1 mm (0.04 in)

Saddle Protrusion from Plunger K11 mm

Base Mounting Hole Counterbore Diameter9,1 mm (0.321 in)

Return TypeSingle-Acting, Spring Return

Plunger Diameter F25,4 mm (1 in)

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRSM Cylinders Repair Parts Sheet (Europe Only)PDF·275 KB

Repair Parts SheetRSM50, RSM100 Repair Parts SheetPDF·389 KB·English

BrochureRSM-RCS-Series Low-Height Cylinders; EnglishPDF·310 KB

CAD Files 3

3D Model
