How can I get a price quote for Enerpac RP55A?

You can request a fast quote for Enerpac RP55A from Yılsa Engineering. Reference part number YLSSHGJR44DXNQM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RP55A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RP55A genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RP55A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac RP55A 5 ton Hydraulic Pull Cylinder

Enerpac RP55A; 5 ton (44.5 kN) capacity, 139.7 mm (5.5 in) stroke, 700 bar (10,000 psi), single-acting hydraulic pull cylinder.

EnerpacMFR # RP55ASKU # YLSSHGJR44DXNQM

Required Oil Capacity101,6 cm³ (6.2 in³)

Maximum Operating Pressure700 bar (10,000 psi)

NPT Thread H25,4 mm (1.25 - 11.5 in)

Collar Threads Length F26,9 mm (1.06 in)

Product TypePull Cylinder

SeriesRP - Simplex

Have questions?Chat on WhatsApp

About This Product

RP55A is a single-acting hydraulic pull cylinder from the Simplex RP series. It has a capacity of 5 tons (44.5 kN), a stroke of 139.7 mm (5.5 in), a maximum operating pressure of 700 bar (10,000 psi) and a required oil capacity of 101.6 cm³. Collapsed height is 301.8 mm and extended height is 441.5 mm. It has an all-steel body, and the chrome plated piston rod resists corrosion. The spring-loaded piston rod extends automatically when pressure is released, and the rod wiper protects the inner cylinder from dirt. It is used in pulling and tensioning applications. Its country of origin is the United States.

Features and Benefits

Designed for pulling and tensioning applications
High strength, all steel construction
Chrome plated piston rod resists corrosion
Spring-loaded piston rod extends automatically when pressure is released
Rod wiper protects the inner cylinder from dirt

Enerpac RP55A

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Required Oil Capacity101,6 cm³ (6.2 in³)

Maximum Operating Pressure700 bar (10,000 psi)

NPT Thread H25,4 mm (1.25 - 11.5 in)

Collar Threads Length F26,9 mm (1.06 in)

Product TypePull Cylinder

SeriesRP - Simplex

Pressure at Capacity610 bar (8850 psi)

Collar Thread E25,4 mm (2.25 - 14 in)

Model Type5 Imperial Ton Capacity, 5.5 in. Stroke

Product LineHydraulic Tools

Weight4,5 kg (10.0 lbs)

Cylinder Class5 ton

Cylinder to Port I42,7 mm (1.68 in)

Country of OriginUnited States

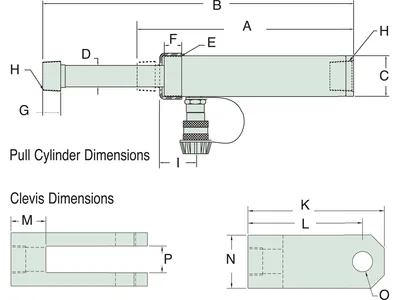

Body Outside Diameter (C)57,2 mm (2.25 in)

Extended Height (B)441,5 mm (17.38 in)

Piston Adapter G31,8 mm (1.25 in)

Capacity44,5 kN (5 ton)

Plunger TypeSolid

Collapsed Height (A)301.8 mm (11.88 in)

Cylinder MaterialSteel

Piston Outside Diameter (D)30,2 mm (1.19 in)

Stroke139.7 mm (5.50 in)

Return TypeSingle-Acting, Spring Return
