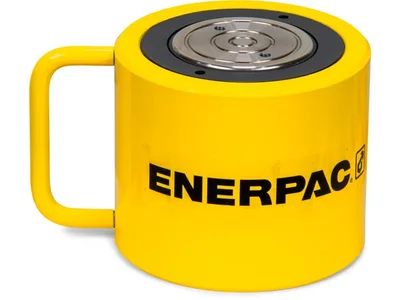

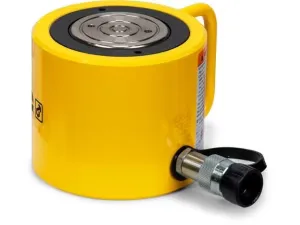

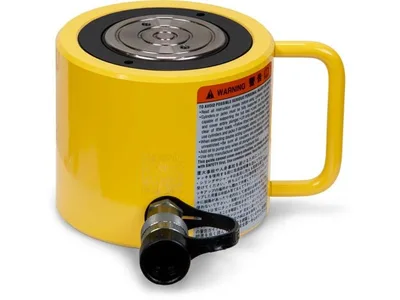

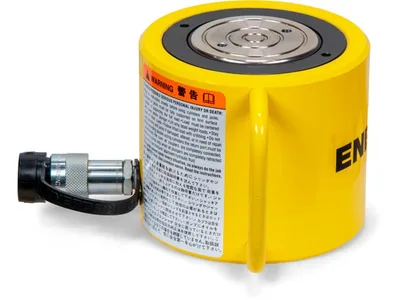

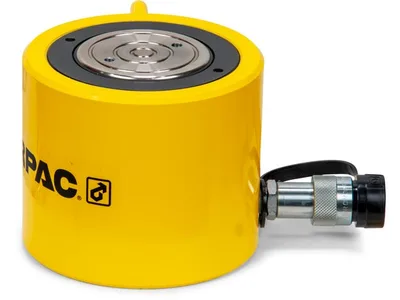

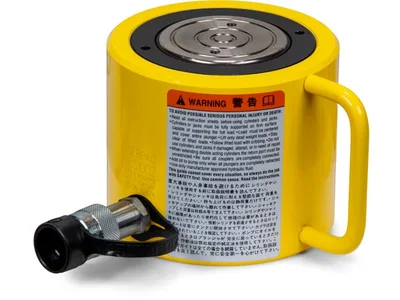

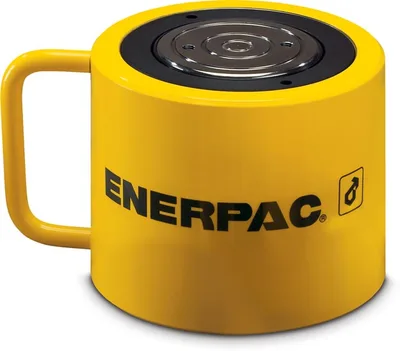

Enerpac RCS1002 98.1 ton Low Height Cylinder

Enerpac RCS1002; 98.1 ton capacity, 57 mm stroke, 141 mm collapsed height, single-acting spring-return low height hydraulic cylinder.

EnerpacMFR # RCS1002SKU # CEY-8EF3B033E951

Cylinder Class100 ton

Stroke57 mm (2.25 in)

Collapsed Height (A)141 mm (5.56 in)

Outside Diameter D165 mm (6.5 in)

Return TypeSingle-Acting, Spring Return

Surface TreatmentPaint

Have questions?Chat on WhatsApp

About This Product

The RCS1002 is a single-acting, spring-return low height hydraulic cylinder from the RCS series. It provides 98.1 ton capacity (100 ton class) and 57 mm (2.25 in) stroke, with a collapsed height of 141 mm. Outside diameter is 165 mm, weight is approximately 20.7 kg, and the surface is painted. Its low profile and solid construction allow use in both vertical and horizontal orientations. It is used for general lifting, pushing and production applications where space is limited. The strong return spring retracts the plunger without relying on the weight of the load.

Features and Benefits

Lightweight, low profile design for confined spaces
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination and extends cylinder life
CR-400 coupler and dust cap included on all models
Grooved plunger end with threaded holes for mounting tilt saddles
Single-acting design with strong spring return for faster retraction

Enerpac RCS1002

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class100 ton

Stroke57 mm (2.25 in)

Collapsed Height (A)141 mm (5.56 in)

Outside Diameter D165 mm (6.5 in)

Return TypeSingle-Acting, Spring Return

Surface TreatmentPaint

Weight20,7 kg (46 lbs)

Oil Capacity (Advance)722 cm³ (44.18 in³)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Maximum Cylinder Capacity (Advance)887 kN (98.1 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)127,0 mm (5 in)

Product TypeLow Height Cylinder

SeriesRCS

Bolt Circle U55 mm (2.17 in)

Plunger Internal ThreadM8

Base to Advance Port H31 mm (1.25 in)

Model Type98.1 Ton Capacity, 2.25 in. Stroke

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J71 mm (2.8 in)

Country of OriginChina

Saddle Diameter J171 mm

Extended Height (B)198 mm (7.81 in)

Cylinder Effective Area (Advance)126,7 cm² (19.63 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)35 mm (1.38 in)

Saddle Protrusion from Plunger K1 mm (0.06 in)

Saddle Protrusion from Plunger K11 mm

Plunger Thread Length (P)10 mm (0.4 in)

Plunger Diameter F92,2 mm (3.63 in)
