How can I get a price quote for Enerpac CATS103?

You can request a fast quote for Enerpac CATS103 from Yılsa Engineering. Reference part number YLSAJLR0GUTK4JJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac CATS103 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac CATS103 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac CATS103?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

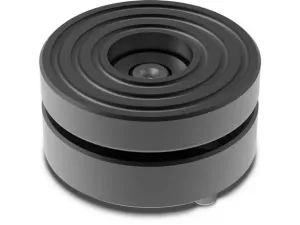

Enerpac CATS103 Tilt Saddle for RCS1002

Enerpac CATS103; 5° tilt, Ø71 mm tilt saddle for the RCS1002 cylinder, 100 ton class, adding 35 mm to collapsed height.

EnerpacMFR # CATS103SKU # YLSAJLR0GUTK4JJ

Compatible Cylinder SeriesRCS

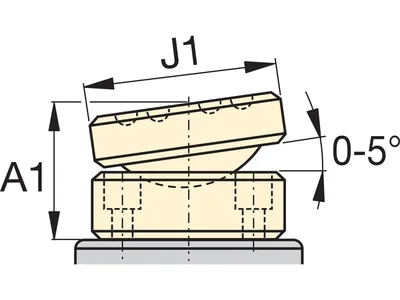

Addition to Collapsed Height A135 mm (1.38 in)

Product TypeTilt Saddle

Saddle Tilt5 °

Tilt Saddle Diameter J171 mm (2.8 in)

Have questions?Chat on WhatsApp

About This Product

CATS103 is a tilt saddle designed for the 100 ton class RCS1002 low height hydraulic cylinder. Its 5° tilt increases the contact area with the load and reduces side loading on the cylinder, helping to extend cylinder life. The saddle diameter is 71 mm (2.8 in) and it adds 35 mm (1.38 in) to the cylinder's collapsed height. Because it can be bolted to the cylinder, it can be used in any orientation without the risk of the saddle dropping off. A nitrocarburized surface treatment improves corrosion resistance. It is used for lifting, alignment and support work in confined spaces where the load cannot be placed perfectly square.

Features and Benefits

Can be bolted to the cylinder for safe use in any orientation without the saddle dropping off
Nitrocarburized surface treatment for improved corrosion protection
5° tilt for better load contact and reduced side loading
Designed specifically for the RCS1002 cylinder
Ø71 mm saddle diameter

Enerpac CATS103

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Compatible Cylinder SeriesRCS

Addition to Collapsed Height A135 mm (1.38 in)

Product TypeTilt Saddle

Saddle Tilt5 °

Tilt Saddle Diameter J171 mm (2.8 in)

SeriesCATS

Capacity Class100 ton

For Use with Cylinder Capacity100 ton

Product LineIndustrial Tools

Saddle TypeTilt

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualTilt Saddles Operation and Maintenance ManualPDF·1.4 MB·English

BrochureRSM-RCS-Series Low-Height Cylinders; EnglishPDF·310 KB

Alternative Names & Search Terms

CATS103CAT-S103CATS 103CAT S103Enerpac CATS103Enerpac CAT-S103CATS103 tilt saddleEnerpac CATS seriesEnerpac tilt saddleRCS1002 tilt saddleRCS1002 saddleRCS series cylinder saddle100 ton tilt saddlelow height cylinder saddle5 degree tilt saddle71 mm tilt saddle
