How can I get a price quote for Enerpac PUD1301B?

You can request a fast quote for Enerpac PUD1301B from Yılsa Engineering. Reference part number CEY-8EF3B033E510. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PUD1301B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PUD1301B genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PUD1301B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

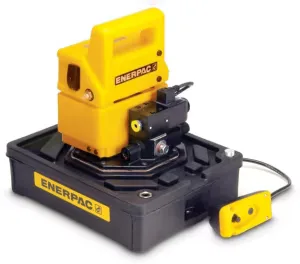

Enerpac PUD1301B 700 bar electric hydraulic pump

Enerpac PUD1301B; 700 bar (10,000 psi) maximum pressure, 115 V, 3.8 l usable oil capacity, two-speed economy electric hydraulic pump with 3/2 solenoid valve.

EnerpacMFR # PUD1301BSKU # CEY-8EF3B033E510

Dimension E130 mm (5.12 in)

Output Flow Rate 1st Stage3,31 l/min (200 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F323 mm (12.74 in)

Dimension D105 mm (4.15 in)

Have questions?Chat on WhatsApp

About This Product

The PUD1301B is a two-speed economy electric hydraulic pump from the PU series. Its 3/2 solenoid valve provides advance, hold and retract functions for single-acting cylinders. It suits small to medium size cylinders and hydraulic tools. Maximum operating pressure is 700 bar. The first stage delivers 200 in³/min (about 3.3 l/min) up to 200 psi (about 14 bar), and the second stage delivers 0.32 l/min. The motor is rated 115 V, 50/60 Hz. Reservoir capacity is 231 in³ with 1 gal (about 3.8 l) usable oil, and the duty cycle is intermittent. A 3 m cord with 24 VAC remote motor control supports operator safety. The high-strength shroud with integral handle protects the motor from contamination and damage.

Features and Benefits

Two-speed operation reduces cycle times
700 bar maximum operating pressure
3/2 solenoid valve for advance / hold / retract
3 m cord with 24 VAC remote motor control
115 V universal motor operates under poor voltage supply and starts under full load
High-strength shroud with integral handle protects the motor

Enerpac PUD1301B

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E130 mm (5.12 in)

Output Flow Rate 1st Stage3,31 l/min (200 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F323 mm (12.74 in)

Dimension D105 mm (4.15 in)

Maximum Flow at Rated Pressure0.32 l/min (20 in3/min · 0,32 l/min · 20 in³/min)

Dimension C373 mm (14.72 in)

Motor Electrical Specification115 V, 50/60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Valve FunctionAdvance / Hold / Retract

Dimension B309 mm (12.18 in)

Output Flow Rate 2nd Stage0,32 l/min (20 in³/min)

Motor Voltage115 V V

Usable Oil Capacity3,8 l (1 gal)

Pump ControlPendant

Dimension J142 mm (5.62 in)

Dimension H10.16 mm (0.4 in)

Maximum Operating Pressure Range700 bar

1st Stage Pressure Rating13 bar (200 psi)

Product TypeElectric Pump - Economy

Duty CycleIntermittent

Reservoir Capacity3800 cm³ (231 in³)

Sound Level85 dB(A)

Valve OperationSolenoid

Pump Valve Type3-way, 2-position

Motor Size0.5 hp

SeriesPU

Pump Power SourceElectric

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Pump OperationDump and Hold

Current Draw9.5 A

Cylinder CompatibilitySingle-acting

Dimension A368 mm (14.5 in)

Product LineIndustrial Tools

Weight15,4 kg (35 lbs)

Documents & CAD

For this product 1

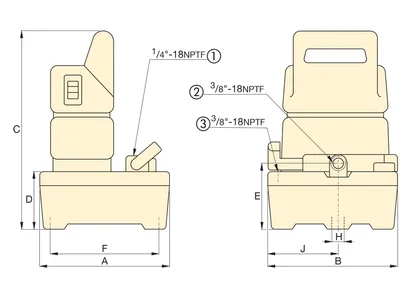

2D DrawingPUD1301B drawingPDF·1.2 MB

Series documents 4· shared by this product series

Repair Parts Sheet1/2 hp Portable Electric PumpPDF·672 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochurePU-Series Economy Electric Pumps; EnglishPDF·324 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

PUD1301BPUD-1301BPUD 1301Bpud1301bEnerpac PUD1301BEnerpac PUD-1301BPUD1301B pumpPUD1301B hydraulic pumpPUD1301B electric pumpEnerpac PU seriesEnerpac PUD seriesEnerpac economy electric pump115 V electric hydraulic pump700 bar electric hydraulic pumpelectric pump for single acting cylinderssolenoid valve hydraulic pump3/2 solenoid valve pumptwo speed hydraulic pumpremote controlled hydraulic pump 24 Velectric pump with 1 gallon reservoir
