How can I get a price quote for Enerpac RCH202?

You can request a fast quote for Enerpac RCH202 from Yılsa Engineering. Reference part number CEY-55221B12C21D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RCH202 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RCH202 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RCH202?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

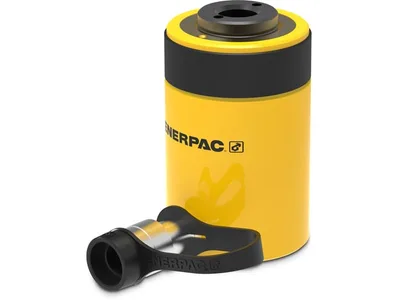

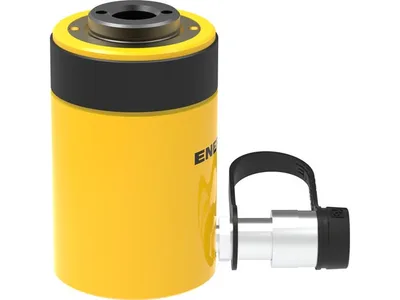

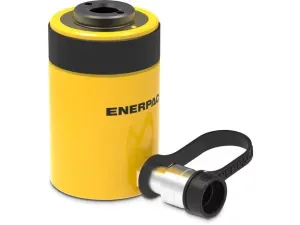

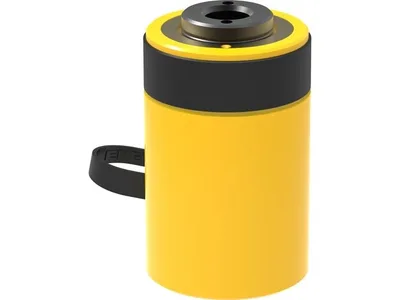

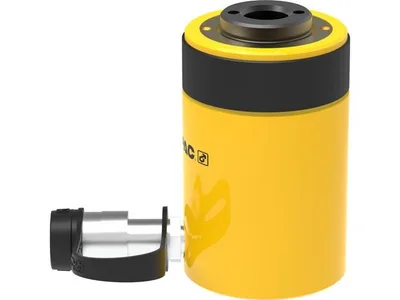

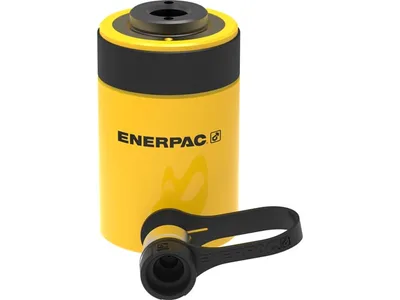

Enerpac RCH202 23.6 ton Hollow Plunger Cylinder

Enerpac RCH202; 23.6 ton capacity, 49 mm stroke, 700 bar, single-acting spring-return hollow plunger hydraulic cylinder.

EnerpacMFR # RCH202SKU # CEY-55221B12C21D

Cylinder Class20 ton

Stroke49 mm (2 in)

Collapsed Height (A)162 mm (6.38 in)

Outside Diameter D98 mm (3.88 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U82,6 mm (3.25 in)

Have questions?Chat on WhatsApp

About This Product

RCH202 is a single-acting hydraulic cylinder from the RCH hollow plunger series, with 23.6 ton capacity and 49 mm (2.00 in) stroke. It uses a spring return and is rated for 700 bar (10,000 psi). The hollow plunger design supports pushing, pulling and lifting. Collapsed height is 162 mm, outside diameter is 98 mm and weight is 7.7 kg. Base mounting holes (82.6 mm bolt circle) and a 3 7/8"-12 UN collar thread ease fixturing. It is used in testing, maintenance and tensioning applications. It comes with a CR400 coupler.

Features and Benefits

23.6 ton capacity, 49 mm stroke, 700 bar pressure rating
Hollow plunger design for push and pull force
Single-acting with spring return
Base mounting holes (82.6 mm bolt circle) and collar threads
Baked enamel finish for corrosion resistance
Features CR400 coupler

Enerpac RCH202

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class20 ton

Stroke49 mm (2 in)

Collapsed Height (A)162 mm (6.38 in)

Outside Diameter D98 mm (3.88 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U82,6 mm (3.25 in)

Collar Thread (W)3 7/8" - 12 un (2 7/8" - 12)

Surface TreatmentPaint

Weight7,7 kg (17 lbs)

Oil Capacity (Advance)150 cm³ (9.46 in³)

Base Mounting Holes Thread Depth Z9,4 mm (0.37 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push, Pull, Tension

Base Mounting Holes Thread V3/8"-16 unc

Maximum Cylinder Capacity (Advance)215 kN (23.6 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)73,1 mm (2.88 in)

Product TypeHollow Plunger Cylinder

SeriesRCH

Plunger Internal Thread1 9/16" - 16 un

Base to Advance Port H19 mm (0.75 in)

Model Type23.6 Ton, 2" Stroke, 1.06" Hole Diam.

Product LineIndustrial Tools

Plunger Internal Thread O1 9/16" - 16 un

Saddle Diameter J54 mm (2.13 in)

Country of OriginChina

Collar Thread Length (X)38 mm (1.5 in)

Center Hole Diameter Y26,9 mm (1.06 in)

Saddle Diameter J154 mm

Extended Height (B)211 mm (8.38 in)

Cylinder Effective Area (Advance)30,7 cm² (4.72 in²)

Plunger TypeHollow

Cylinder MaterialSteel

Saddle Protrusion from Plunger K9,7 mm (0.27 in)

Saddle Protrusion from Plunger K19,7 mm

Plunger Thread Length (P)19 mm (0.75 in)

Plunger Diameter F54,1 mm (2.13 in)

Set IncludesCR400

Documents & CAD

For this product 1

2D DrawingRCH202 drawingPDF·122 KB

Series documents 7· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetHollow Cylinders, RCH-202 / 302; RWH-202 / 302; RCH-206 / 306PDF·360 KB·English

Repair Parts SheetCylinder - 20 TonPDF·45 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·156 KB·English

BrochureRCH-Series Hollow Plunger Cylinders; EnglishPDF·323 KB

DocumentCylinderPDF·54 KB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

RCH202RCH-202RCH 202rch202Enerpac RCH202Enerpac RCH-202RCH202 hollow plunger cylinderRCH202 hydraulic cylinderEnerpac RCH seriesRCH series hollow plunger cylinder23.6 ton hollow plunger hydraulic cylinder49 mm stroke single-acting cylindersingle-acting spring return cylinder700 bar hollow plunger cylinder20 ton class hollow plunger cylinderEnerpac 23.6 ton hydraulic cylinderhollow hydraulic cylinderpush pull tensioning cylinder
