How can I get a price quote for Enerpac RAC102?

You can request a fast quote for Enerpac RAC102 from Yılsa Engineering. Reference part number CEY-55221B12D9E7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RAC102 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RAC102 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RAC102?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

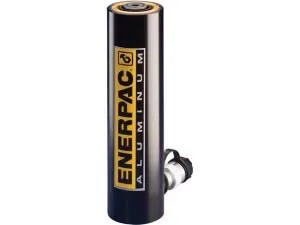

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac RAC102 9.9 ton Aluminum Cylinder

Enerpac RAC102; 9.9 ton capacity (10 ton class), 50 mm stroke, 700 bar, single-acting spring-return aluminum hydraulic cylinder.

EnerpacMFR # RAC102SKU # CEY-55221B12D9E7

Cylinder Class10 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)154 mm (6.06 in)

Outside Diameter D58 mm (2.28 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U39 mm (1.54 in)

Have questions?Chat on WhatsApp

About This Product

RAC102 is a 9.9 ton (10 ton class) aluminum-body cylinder from the Enerpac RAC series of single-acting lightweight hydraulic cylinders. Stroke is 50 mm (1.97 in), collapsed height 154 mm, outside diameter 58 mm and base mounting bolt circle 39 mm. It weighs 1.2 kg and has an anodized finish. The cylinder is rated for 700 bar (10,000 psi) and complies with ASME B30.1. A high-strength return spring speeds up plunger retraction, and an integral stop ring prevents plunger over-travel. A hardened steel saddle, CR400 coupler and dust cap are standard. It is used for lifting and pushing in tight spaces and in maintenance and assembly work that calls for a compact, light cylinder.

Features and Benefits

Aluminum body: only 1.2 kg for easy handling
High-strength return spring for rapid retraction
Composite bearings prevent metal-to-metal contact and resist side loads of up to 10%
Integral stop ring prevents plunger over-travel
Hardened steel saddle protects against load-induced damage
CR400 coupler and dust cap included; ASME B30.1 compliant

Enerpac RAC102

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class10 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)154 mm (6.06 in)

Outside Diameter D58 mm (2.28 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U39 mm (1.54 in)

Surface TreatmentAnodized

Weight1,2 kg (2.6 lbs)

Oil Capacity (Advance)60 cm³ (3.66 in³)

Base Mounting Holes Thread Depth Z12 mm (0.47 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread VM6

Maximum Cylinder Capacity (Advance)88 kN (9.9 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)40 mm (1.57 in)

Product TypeAluminum Cylinder

SeriesRAC

Base to Advance Port H23 mm (0.91 in)

Product LineIndustrial Tools

Saddle Diameter J24 mm (0.94 in)

Country of OriginIndia

Saddle Diameter J124 mm

Extended Height (B)201 mm (7.91 in)

Cylinder Effective Area (Advance)12,6 cm² (1.95 in²)

Plunger TypeSolid

Cylinder MaterialAluminum

Saddle Protrusion from Plunger K3 mm (0.12 in)

Saddle Protrusion from Plunger K13 mm

Plunger Diameter F32 mm (1.26 in)
