How can I get a price quote for Enerpac RAC302?

You can request a fast quote for Enerpac RAC302 from Yılsa Engineering. Reference part number YLSS4573O6PLMMU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RAC302 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RAC302 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RAC302?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

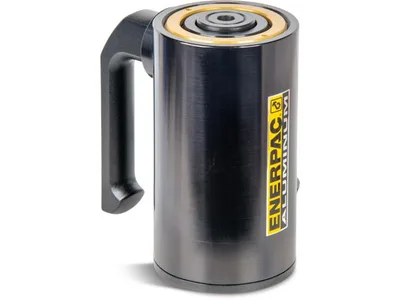

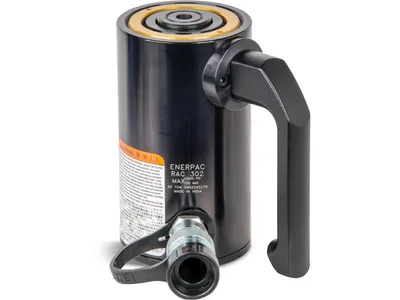

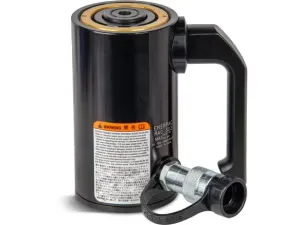

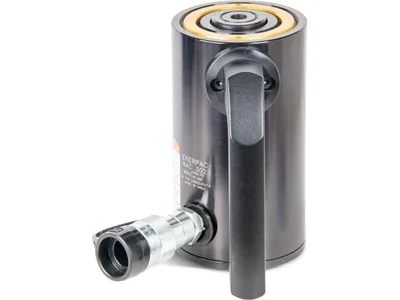

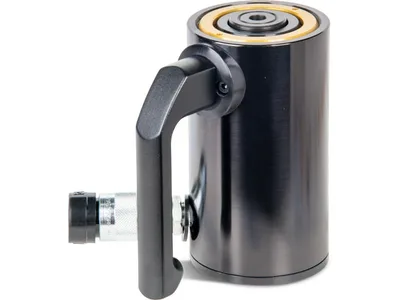

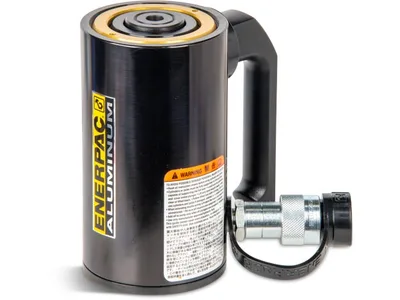

Enerpac RAC302 34.2 ton Aluminum Cylinder

Enerpac RAC302; 34.2 ton capacity, 50 mm stroke, 700 bar, single-acting spring-return aluminum hydraulic cylinder.

EnerpacMFR # RAC302SKU # YLSS4573O6PLMMU

Cylinder Class30 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)181 mm (7.13 in)

Outside Diameter D100 mm (3.94 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U80 mm (3.15 in)

Have questions?Chat on WhatsApp

About This Product

RAC302 is a single-acting, spring-return aluminum hydraulic cylinder from the Enerpac RAC series. It offers 34.2 ton capacity and 50 mm (1.97 in) stroke, and is rated for 700 bar (10,000 psi). Collapsed height is 181 mm, outside diameter 100 mm, base mounting bolt circle 80 mm and weight 4.5 kg. The body is aluminum with an anodized surface. Its low collapsed height suits lifting and pushing in confined spaces. Handles are included on 30-ton class models, and the cylinder meets ASME B30.1.

Features and Benefits

Aluminum body: approximately half the weight of an equivalent steel cylinder (4.5 kg)
High-strength return spring for rapid cylinder retraction
Compact build: 181 mm collapsed height, 50 mm stroke
Hardened steel saddle, steel base plate and integral stop ring
CR400 coupler and dust cap included; ASME B30.1 compliant

Enerpac RAC302

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class30 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)181 mm (7.13 in)

Outside Diameter D100 mm (3.94 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U80 mm (3.15 in)

Surface TreatmentAnodized

Weight4,5 kg (9.9 lbs)

Oil Capacity (Advance)221 cm³ (13.49 in³)

Base Mounting Holes Thread Depth Z12 mm (0.47 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread VM6

Maximum Cylinder Capacity (Advance)309 kN (34.2 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)75 mm (2.95 in)

Product TypeAluminum Cylinder

SeriesRAC

Base to Advance Port H32 mm (1.31 in)

Optional Tilt Saddle Diameter (J1)2.17 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J41 mm (1.61 in)

Country of OriginIndia

Saddle Diameter J155 mm

Extended Height (B)231 mm (9.1 in)

Cylinder Effective Area (Advance)44,2 cm² (6.85 in²)

Plunger TypeSolid

Cylinder MaterialAluminum

Optional Tilt Saddle Addition to Collapsed Height (A1)11 mm (0.43 in)

Saddle Protrusion from Plunger K4 mm (0.12 in)

Plunger Diameter F60 mm (2.36 in)

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualAluminum CylindersPDF·330 KB·Norsk

Instruction ManualAluminum CylindersPDF·5.4 MB 4 languages· in one file

Repair Parts SheetRAC & RACL Aluminum Cylinders Repair Parts SheetPDF·588 KB·English

2D DrawingRAC302 drawingPDF·528 KB

BrochureRAC-Series Lightweight Cylinders; EnglishPDF·260 KB
