Enerpac PP19DC 160 bar Diesel Power Pack
Enerpac PP19DC; 160 bar (2320 psi), 60 l/min flow, 19 kW (26 hp), 350 L usable oil, EU Stage V / EPA Tier 4 diesel hydraulic power pack.
Maximum Operating Pressure Range160 bar (2320 psi)
Length2200 mm (86.61 in)
Maximum Operating Pressure160 bar (2320 psi)
Motor VoltageEU Stage V EPA Tier 4
Usable Oil Capacity350 l (92.4 gal)
Maximum Flow at Rated Pressure100 l/min @ 100 bar; 60 l/min @ 160 bar
About This Product

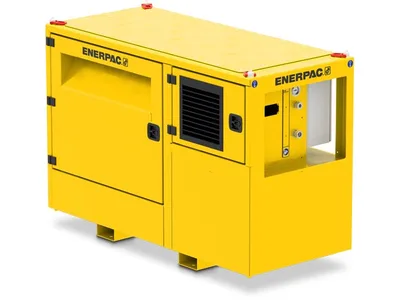

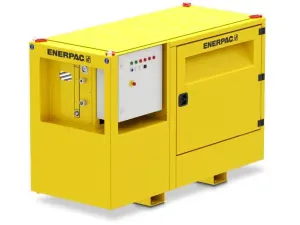

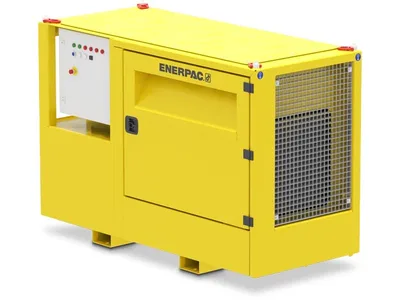

The PP19DC is a diesel-driven hydraulic power pack from the PP-D series. Maximum operating pressure is 160 bar (2320 psi), with 100 l/min oil flow at 100 bar and 60 l/min at 160 bar. The engine is rated at 19 kW (26 hp) and complies with EU Stage V and EPA Tier 4 emission regulations.
The unit has 350 L (92.4 gal) of usable oil capacity and is supplied with ISO VG 46 hydraulic oil as standard. Dimensions are 2200 x 980 x 1500 mm and weight is 1510 kg. It is enclosed in a protective frame with forklift and vertical lift points.
It is suited to powering hydraulic equipment at sites without mains electricity. Pressure and flow can be set with adjustment screws, and application-specific hydraulic controls and hose kits are available as options.
Features and Benefits
- Complies with EU Stage V – EPA Tier 4 final emission regulations
- Engine with 13.2 gal (about 50 L) diesel tank; approx. 12 hours running time at max torque
- Pressure and flow can be set by adjustment screws
- Emergency stop buttons and pressureless switch to remove pressure and flow
- Protective frame, forklift and vertical lift points, spark arrestor
- Optional application-specific hydraulic controls, hose kits and case drain return option
Enerpac PP19DC
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Maximum Operating Pressure Range160 bar (2320 psi)
Length2200 mm (86.61 in)
Maximum Operating Pressure160 bar (2320 psi)
Motor VoltageEU Stage V EPA Tier 4
Usable Oil Capacity350 l (92.4 gal)
Maximum Flow at Rated Pressure100 l/min @ 100 bar; 60 l/min @ 160 bar
Reservoir Capacity350 l (92.4 gal)
Product TypeDiesel Power Pack
Width980 mm (38.58 in)
Motor Size19 kW (26 hp)
SeriesPP-D
Pump Power SourceDiesel
Product LineMachining Tools
Height1500 mm (59.06 in)
Weight1510 kg (3329 lbs)
