Enerpac WP3500H 2300-3500 mm Orbital Milling

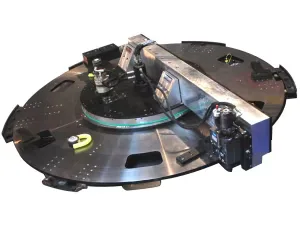

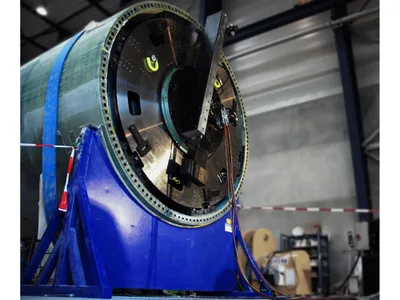

The WP3500H is a WP series orbital milling machine designed for the wind power manufacturing industry. It works across a cutting diameter range of 2300-3500 mm (90-137 in), with a blade PCD range of 2300-3200 mm. The milling spindle and rotational drive are hydraulic, with 80 mm (3.15 in) spindle travel and a typical spindle speed of 350 rpm. Minimum hydraulic supply required is 70 L/min at 100 bar (1450 psi). Typical cutting speed is 150-200 mm/min and maximum traverse speed is 300 mm/min. Standard base weight is 3928 kg and machine weight is 1668.7 kg. The standard package includes the rotational drive motor and reduction gearbox, machining facing arm, milling spindle, jaw blocks with 8 clamping jaws (4 adjustable), face mill cutter and inserts, toolkit, CE certificate and operation/maintenance manual. Typical applications are wind turbine blade root end milling and wind tower flange machining.
