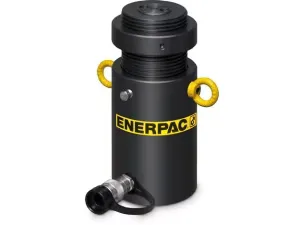

Enerpac HCL504 50 ton Hydraulic Cylinder

Enerpac HCL504; 50 ton capacity, 100 mm (3.94 in) stroke, 700 bar (10,000 psi) max pressure, single-acting load return lock nut high tonnage hydraulic cylinder.

EnerpacMFR # HCL504SKU # CEY-937FC780655D

Cylinder Class50 ton

Stroke100 mm (3.94 in)

Collapsed Height (A)214 mm (8.43 in)

Outside Diameter D130 mm (5.12 in)

Return TypeSingle-Acting, Load Return

Base Mounting Holes Bolt Circle U105 mm (4.13 in)

Have questions?Chat on WhatsApp

About This Product

HCL504 is a single-acting, load return model from the Enerpac HCL series of high tonnage lock nut hydraulic cylinders. It has 50 ton capacity, 100 mm stroke, 214 mm collapsed height and 130 mm outside diameter, and weighs 22 kg. The lock nut provides secure mechanical load holding for extended periods. The tilt saddle ensures maximum contact with misaligned loads. The body, lock nut and plunger have a nitrocarburized finish; base mounting holes are on a 105 mm bolt circle. It is used in construction and heavy industrial applications requiring lifting, pushing and holding. Maximum working pressure is 700 bar and it complies with ASME B30.1.

Features and Benefits

Lock nut for safe mechanical load holding over extended periods
Low friction lock nut spins easily, saving time and effort
Load return design: simple to use and maintain
Nitrocarburized surface resists side-loading and wear; 10% side-load up to 90% of stroke
Overflow port as stroke limiter prevents plunger blow-out
700 bar (10,000 psi) max pressure; certified lifting eyes; ASME B30.1 compliant

Enerpac HCL504

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class50 ton

Stroke100 mm (3.94 in)

Collapsed Height (A)214 mm (8.43 in)

Outside Diameter D130 mm (5.12 in)

Return TypeSingle-Acting, Load Return

Base Mounting Holes Bolt Circle U105 mm (4.13 in)

Surface TreatmentNitride

Weight22 kg (48 lbs)

Oil Capacity (Advance)785 cm³ (47.93 in³)

Base Mounting Holes Thread Depth Z10 mm (0.39 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push, Hold

Base Mounting Holes Thread VM8 x 1,25

Maximum Cylinder Capacity (Advance)550 kN (62 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)100 mm (3.94 in)

Product TypeHigh Tonnage Lock Nut Cylinder

SeriesHCL

Base to Advance Port H24 mm (0.94 in)

Lock Nut Height (S)25 mm

Optional Tilt Saddle Diameter (J1)2.8 in

Product LineIndustrial Tools

Collapsed Height with Optional Tilt Saddle (A1)229 mm (9.02 in)

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J71 mm (2.8 in)

Country of OriginChina

Saddle Diameter J171 mm

Extended Height (B)314 mm (12.36 in)

Cylinder Effective Area (Advance)78,5 cm² (12.17 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)15 mm (0.59 in)

Side Load Resistance (of Max. Capacity)10% %

Saddle Protrusion from Plunger K2 mm (0.08 in)

Saddle Protrusion from Plunger K12 mm

Plunger Diameter FTr 100 x 4 mm
