How can I get a price quote for Enerpac HCRL506?

You can request a fast quote for Enerpac HCRL506 from Yılsa Engineering. Reference part number YLS8S3O7WIOPBEC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HCRL506 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HCRL506 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HCRL506?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

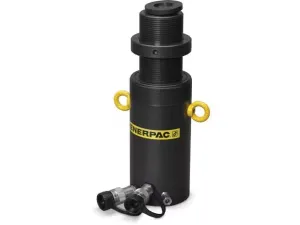

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac HCRL506 53.8 ton Double-Acting Cylinder

Enerpac HCRL506; 53.8 ton capacity, 150 mm (5.91 in) stroke, double-acting, lock nut high tonnage hydraulic cylinder; 310 mm collapsed height.

EnerpacMFR # HCRL506SKU # YLS8S3O7WIOPBEC

Cylinder Class50 ton

Stroke150 mm (5.91 in)

Collapsed Height (A)310 mm (12.2 in)

Outside Diameter D130 mm (5.12 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U105 mm (4.13 in)

Have questions?Chat on WhatsApp

About This Product

HCRL506 is a double-acting, lock nut high tonnage hydraulic cylinder from the HCRL series. It has a capacity of 53.8 tons, a stroke of 150 mm (5.91 in), a collapsed height of 310 mm, an outside diameter of 130 mm and a weight of 30 kg. The lock nut provides mechanical load holding for extended periods. The double-acting design uses hydraulic force for a faster, more controlled plunger return. The standard tilt saddle allows up to 5 degrees of load misalignment. The nitrided surface, base mounting holes (105 mm bolt circle) and M130 x 2 collar thread are standard. It is used for lifting, pushing and holding applications.

Features and Benefits

Lock nut provides mechanical load holding for extended periods
Double-acting hydraulic return for fast advance and retract
Integrated tilt saddle allows up to 5 degrees of misalignment
Nitrocarburized surface resists side-loading and cyclic wear
Stop-ring prevents plunger blow-out
Base mounting holes and collar thread (M130 x 2) included as standard

Enerpac HCRL506

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

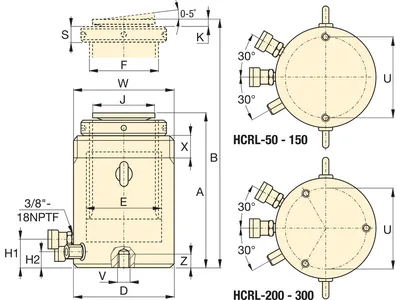

Specifications

Cylinder Class50 ton

Stroke150 mm (5.91 in)

Collapsed Height (A)310 mm (12.2 in)

Outside Diameter D130 mm (5.12 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U105 mm (4.13 in)

Collar Thread (W)M130 X 2

Surface TreatmentNitride

Weight30 kg (65 lbs)

Oil Capacity (Advance)1025 cm³ (62.55 in³)

Base Mounting Holes Thread Depth Z22 mm (0.87 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)86 cm³ (5.24 in³)

ApplicationsLift, Push, Hold

Base Mounting Holes Thread VM12 x 1,75

Maximum Cylinder Capacity (Advance)479 kN (54 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)100 mm (3.93 in)

Product TypeHigh Tonnage Lock Nut Cylinder

Plunger Protrusion (K)15 mm

Base to Advance Port (H1)41 mm (1.61 in)

SeriesHCRL

Lock Nut Height S1.02 in

Lock Nut Height (S)26 mm

Base to Retract Port (H2)27 mm (1.04 in)

Product LineIndustrial Tools

Saddle Diameter J77 mm (3.02 in)

Country of OriginNetherlands

Collar Thread Length (X)42 mm (1.65 in)

Extended Height (B)460 mm (18.11 in)

Cylinder Effective Area (Advance)68,4 cm² (10.6 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Saddle Protrusion from Plunger K0.59 in

Plunger Diameter FTr90 X 4 mm

Documents & CAD

For this product 1

Repair Parts SheetHigh Tonnage Hydraulic Cylinders, HCRl SeriesPDF·4.3 MB·English

Series documents 2· shared by this product series

Instruction ManualHigh Tonnage Hydraulic Cylinders, HCRL SeriesPDF·1.6 MB

BrochureHCRL-Series Lock Nut Cylinders; EnglishPDF·221 KB

CAD Files 3

3D Model
