How can I get a price quote for Enerpac CATS12?

You can request a fast quote for Enerpac CATS12 from Yılsa Engineering. Reference part number CEY-55221B12D9AF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac CATS12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac CATS12 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac CATS12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

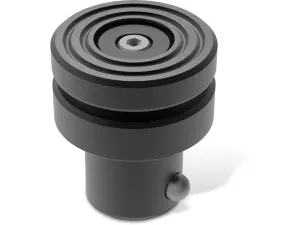

Enerpac CATS12 10–15 Ton Tilt Saddle

Enerpac CATS12; 5° tilt, Ø35 mm tilt saddle for 10–15 ton RC and 10 ton RR series cylinders, adding 11/14 mm to collapsed height.

EnerpacMFR # CATS12SKU # CEY-55221B12D9AF

Country of OriginSpain

Compatible Cylinder SeriesRC, RR

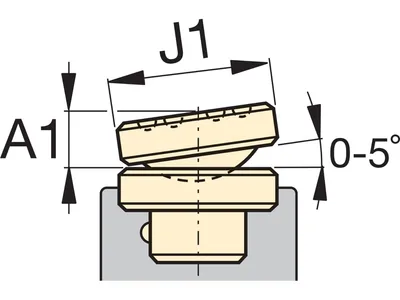

Addition to Collapsed Height A111 / 14 mm (.43 / .55 in)

Product TypeTilt Saddle

Saddle Tilt5 °

Have questions?Chat on WhatsApp

About This Product

CATS12 is a tilt saddle for 10–15 ton RC series and 10 ton RR series hydraulic cylinders. Its 5° tilt allows better seating on the load, reduces side loading and helps extend cylinder life. The saddle diameter is 35 mm (1.38 in) and it adds 11 / 14 mm (0.43 / 0.55 in) to the cylinder's collapsed height. It can be bolted to the cylinder, so it can be used in any orientation without the risk of the saddle dropping off. A nitrocarburized surface treatment provides corrosion protection. Country of origin is Spain. It is used in general lifting, pressing and maintenance applications where the load cannot be placed perfectly square.

Features and Benefits

Can be bolted to the cylinder for safe use in any orientation without the saddle dropping off
Nitrocarburized surface treatment for improved corrosion protection
5° tilt for better load contact and reduced side loading
Compatible with 10–15 ton RC and 10 ton RR series cylinders
Compact Ø35 mm saddle

Enerpac CATS12

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginSpain

Compatible Cylinder SeriesRC, RR

Addition to Collapsed Height A111 / 14 mm (.43 / .55 in)

Product TypeTilt Saddle

Saddle Tilt5 °

Tilt Saddle Diameter J135 mm (1.38 in)

SeriesCATS

Capacity Class10, 15 ton

For Use with Cylinder Capacity10, 15 ton

Product LineIndustrial Tools

Saddle TypeTilt

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualTilt Saddles Operation and Maintenance ManualPDF·1.4 MB·English

BrochureA-AW-CATS-JBI-RB-REB-REP-Series Accessories; EnglishPDF·180 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

CATS12CAT-S12CATS 12CAT S12Enerpac CATS12Enerpac CAT-S12CATS12 tilt saddleEnerpac CATS seriesEnerpac tilt saddleEnerpac RC series saddleEnerpac RR series saddleRC cylinder tilt saddleRR cylinder tilt saddle10 ton tilt saddle15 ton tilt saddle5 degree tilt saddle35 mm tilt saddle
